EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	SMA (Surveying and Mapping Authority of the Republic of Slovenia)
RESPONSIBLE FOR METADATA	GIS (Geodetic Institute of Slovenia)
CURRENT STATION CONFIGURATION	gsr100svn_20221122.log
STATUS IN EPN	included since 25-02-2001
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR30 (09-11-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR20/LEIM (24-09-2020 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR20/LEIM (SN: 17031025) from 2020-09-24 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2014-12-05)
DATA ROUTINELY ANALYSED BY	BEK, BEV, MUT, RGA, UPA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 01-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station GSR100SVN
Last ETRF2000 position valid from 269/2020 to 316/2022 expressed at epoch 001/2010
X = 4292609.806 m	Vx = -0.0018 m/y
Y = 1113638.983 m	Vy = -0.0007 m/y
Z = 4569215.406 m	Vz = 0.0008 m/y

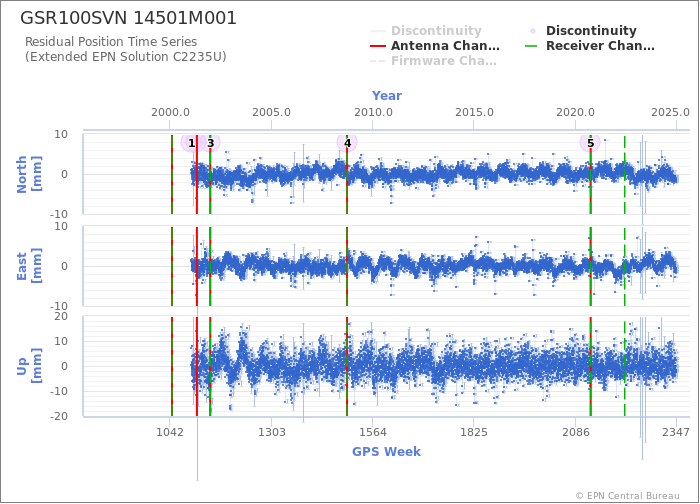

Position time series

Tropospheric Delays

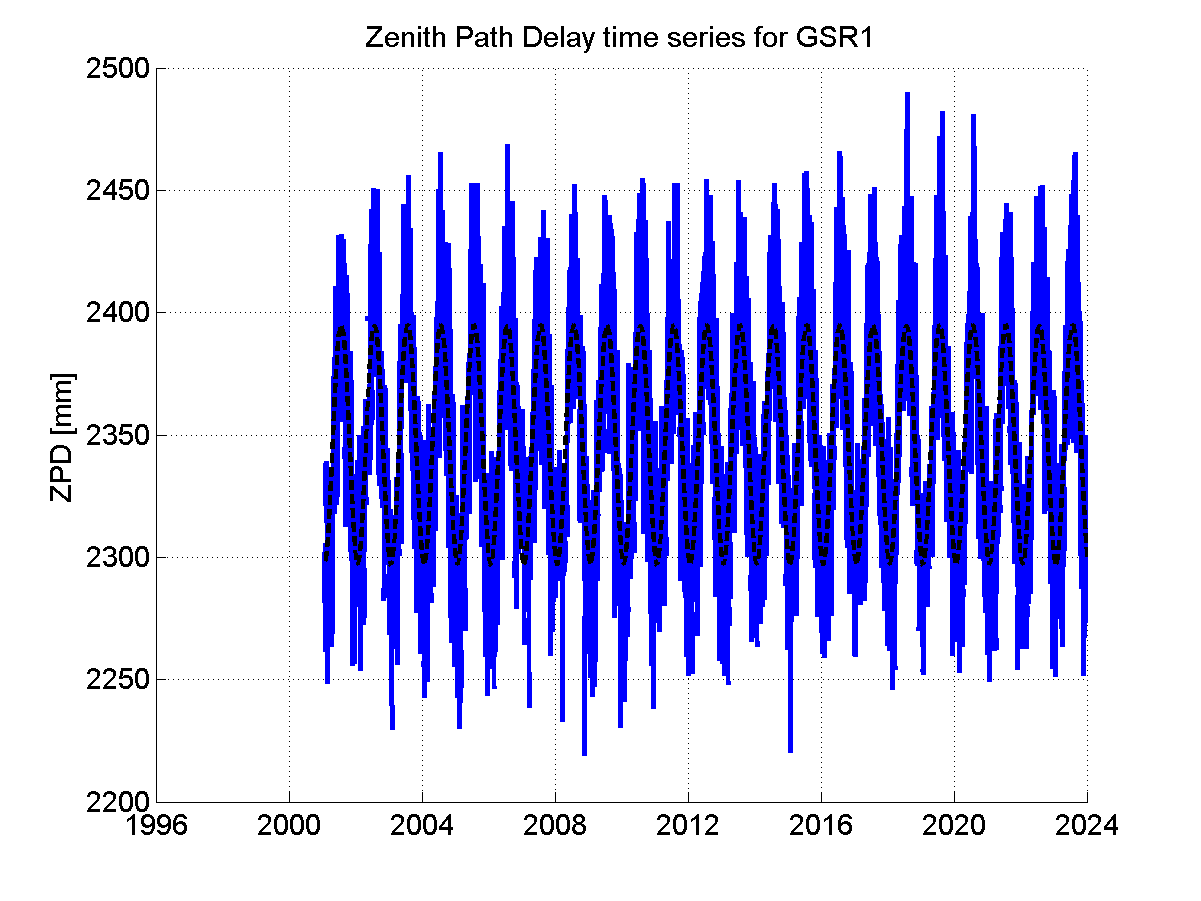

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

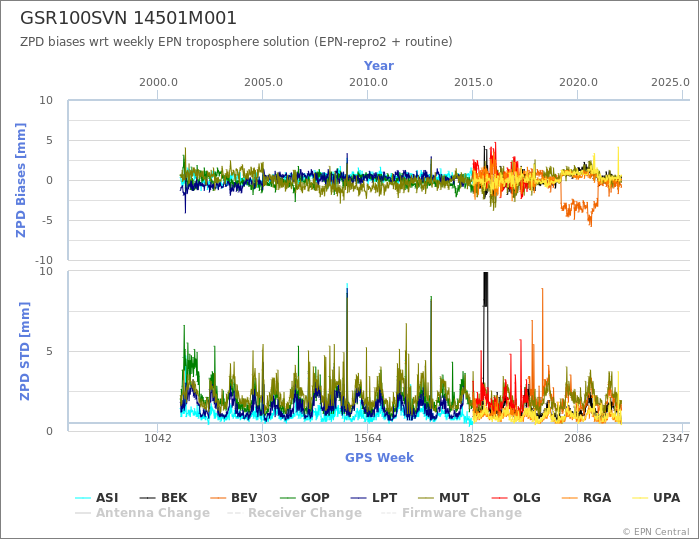

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

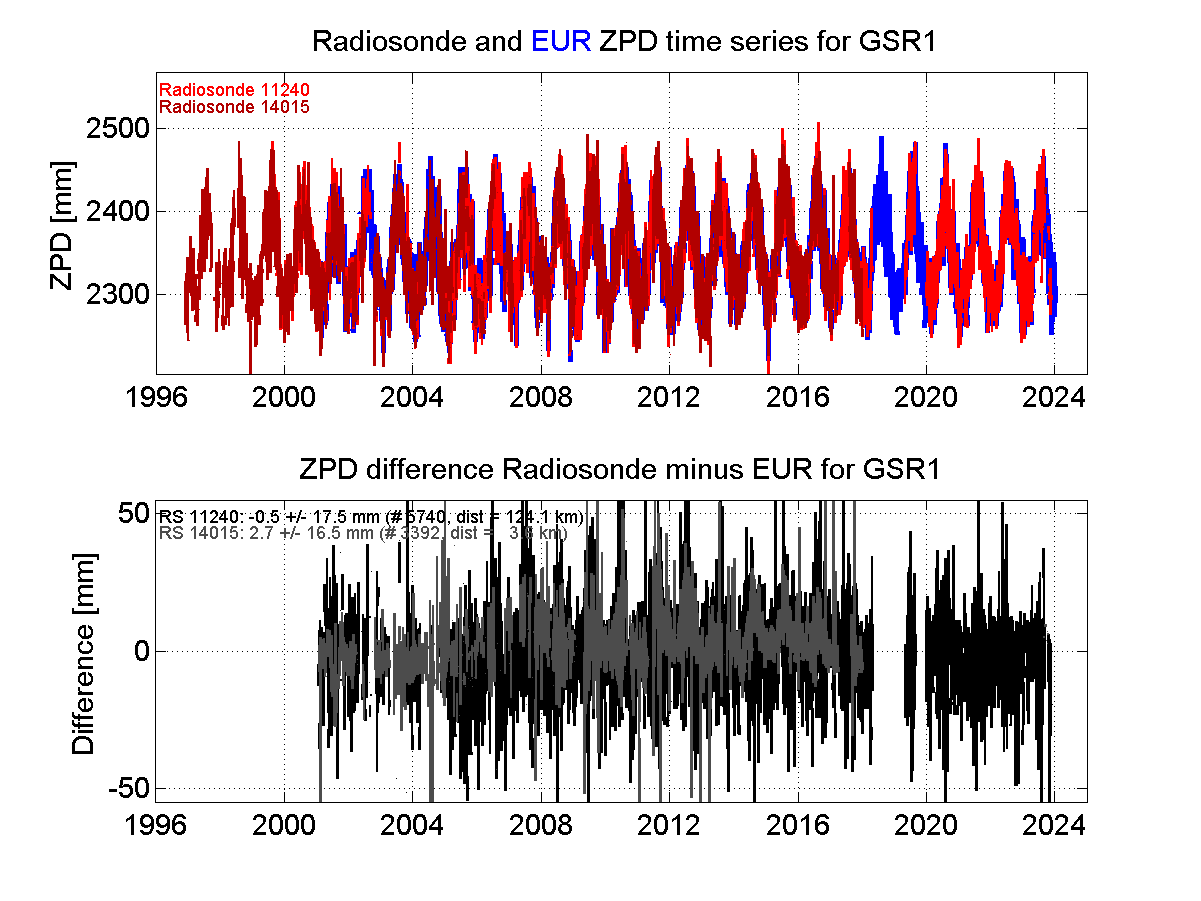

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Ljubljana, Slovenia (GSR100SVN)
