Innsbruck, Austria (HFL200AUT)

RESPONSIBLE AGENCY BEV (Federal Office of Metrology and Surveying Austria)
RESPONSIBLE FOR METADATA BEV (Federal Office of Metrology and Surveying Austria)
CURRENT STATION CONFIGURATION hfl200aut_20230421.log
STATUS IN EPN former since 03-07-2011
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 02-07-2011 (decommissioned station)
LAST RECEIVER TRIMBLE NETRS (01-07-2007 to 04-07-2011)
SET TO TRACK GPS
LAST ANTENNA TRM29659.00/OLGA (26-05-2008 to 04-07-2011)
INDIVIDUAL CALIBRATION(S)
  • TRM29659.00/OLGA (SN: 0220088087) from 2008-05-26 to 2011-07-04 :
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 183/2011
BKGI 183/2011
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station HFL200AUT
Last ETRF2000 position valid from 148/2008 to 183/2011
expressed at epoch 001/2010
X = 4248505.213 m Vx = -0.0006 m/y
Y = 855575.478 m Vy = 0.0000 m/y
Z = 4667171.940 m Vz = 0.0006 m/y

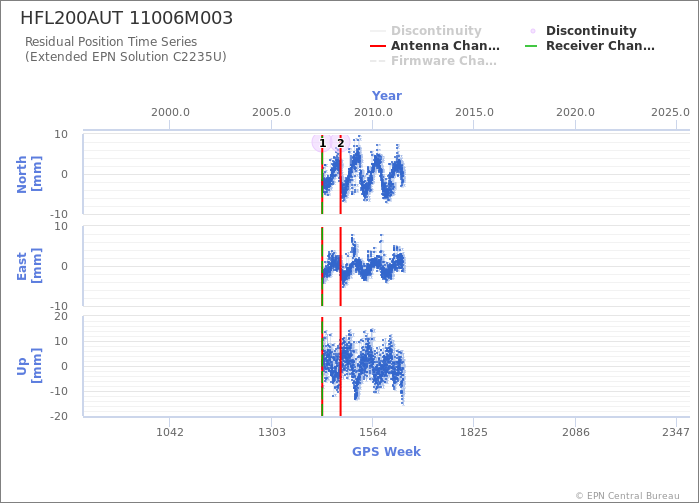

Position time series

Position time series

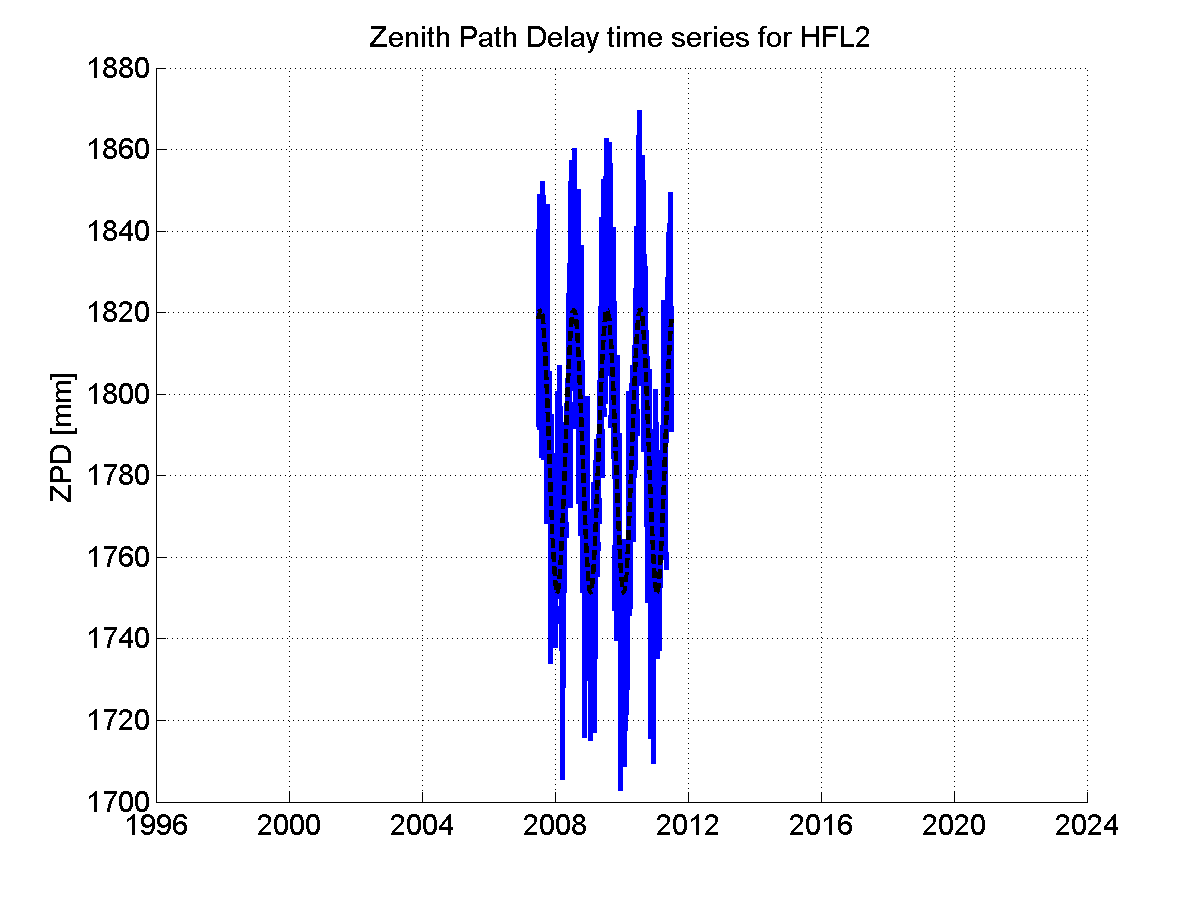

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

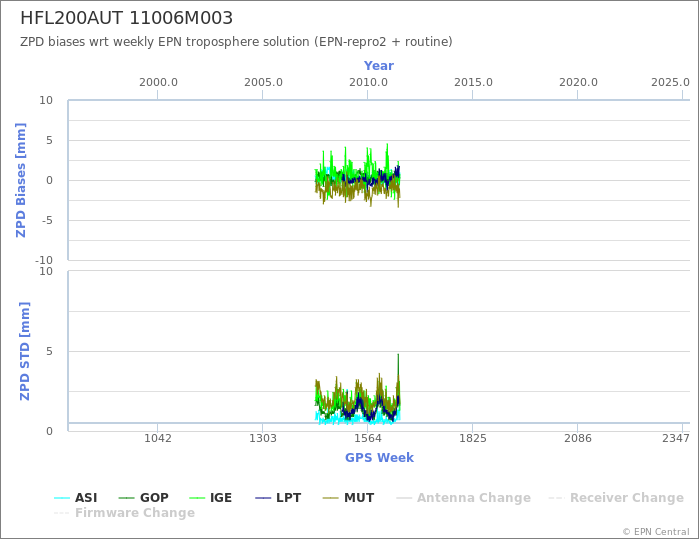

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

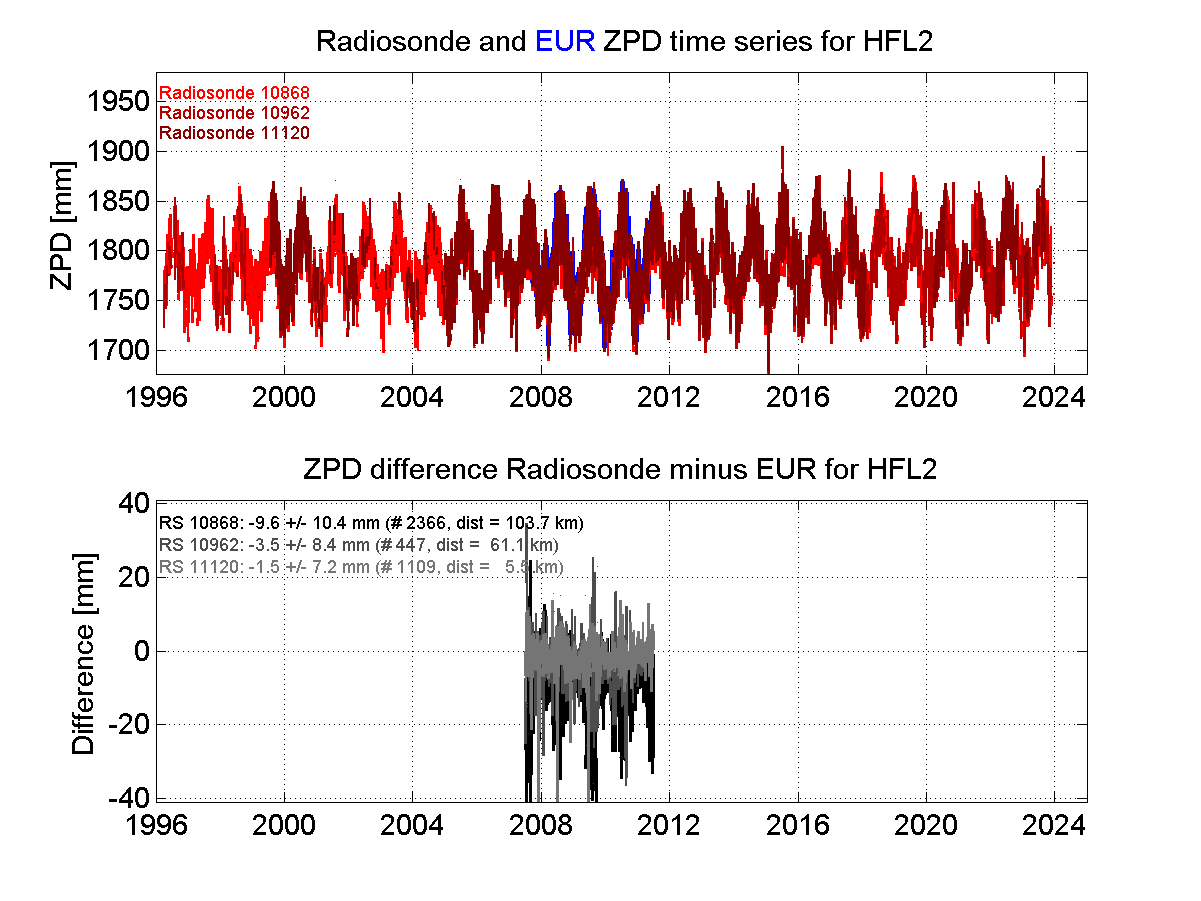

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
