Hoefn, Iceland (HOFN00ISL)

RESPONSIBLE AGENCY BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION hofn00isl_20231010.log
STATUS IN EPN included since 28-09-1997
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER LEICA GR50 (20-09-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS+IRNSS+SBAS
LAST ANTENNA LEIAR25.R4/LEIT (05-05-2013 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R4/LEIT (SN: 725283) from 2013-05-05 to now :
  • TPSCR3_GGD/CONE (SN: 2170218) from 2007-09-23 to 2013-05-05 :
DATA ROUTINELY ANALYSED BY BKG, COD, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 20-10-2020.

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 294/2020 N/A
BEV 023/2020 N/A
BKGI 294/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+IRNSS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 325/2024 75%
BKGI 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 95.83%
BKGI 326/2024 (H) 100% 69.64%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

HOFN00ISL0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/20 13:18 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 13:18 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2024/11/20 13:18 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/20 10:10 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 10:10 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/20 11:32 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 11:32 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/7.813)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station HOFN00ISL
Last ETRF2000 position valid from 243/2014 to 316/2022
expressed at epoch 001/2010
X = 2679690.257 m Vx = 0.0067 m/y
Y = -727951.354 m Vy = 0.0031 m/y
Z = 5722789.189 m Vz = 0.0087 m/y

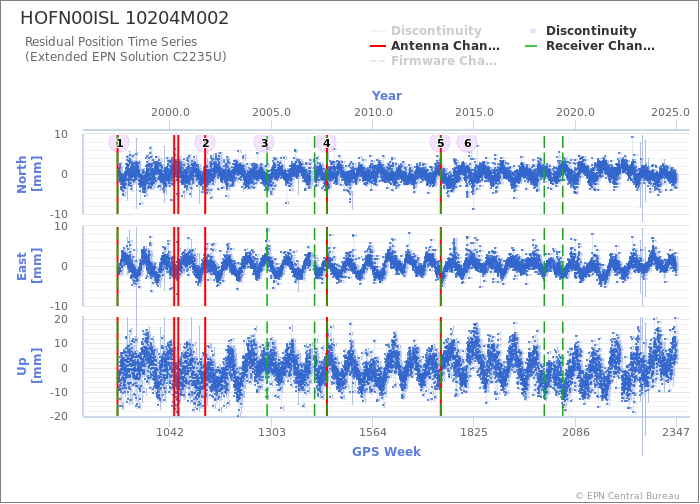

Position time series

Position time series

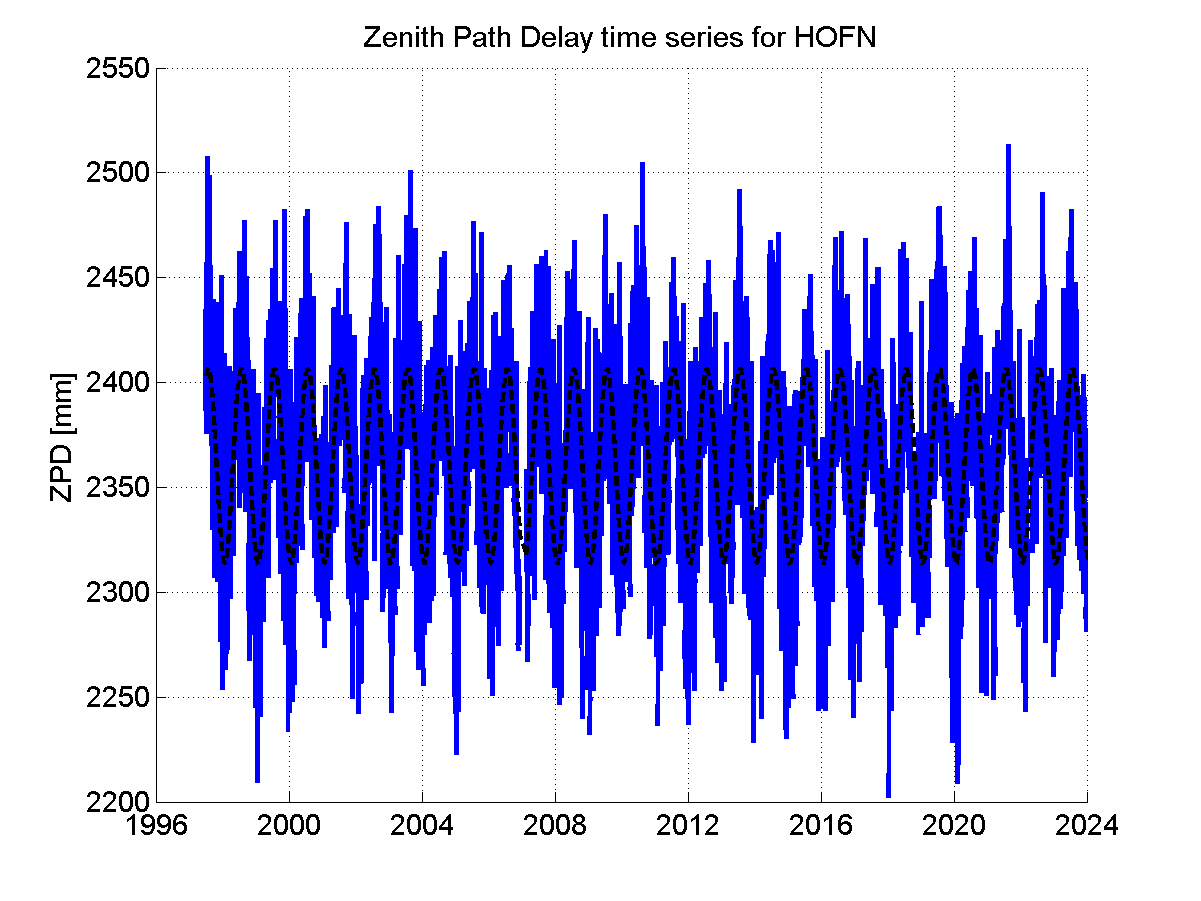

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

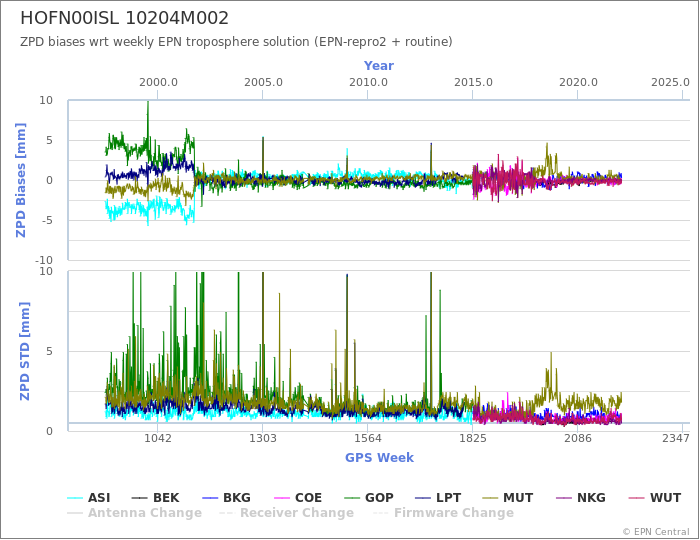

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
