EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA	IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION	huel00esp_20240411.log
STATUS IN EPN	included since 09-09-2007
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-HUEL00ESP
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR50 (11-04-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR20/LEIM (21-10-2022 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR20/LEIM (SN: 24238028) from 2022-10-21 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, R04, R06, E01, E05, E06, E07, E08, C01, C02, C05, C06, C07, C08, J01, J02, J05, J06, S01, S05, I05, date: 2021-11-02)
DATA ROUTINELY ANALYSED BY	BEK, IGE, MUT, RGA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

HUEL00ESP0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 13:21 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/11/20 13:21 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 10:13 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 11:35 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

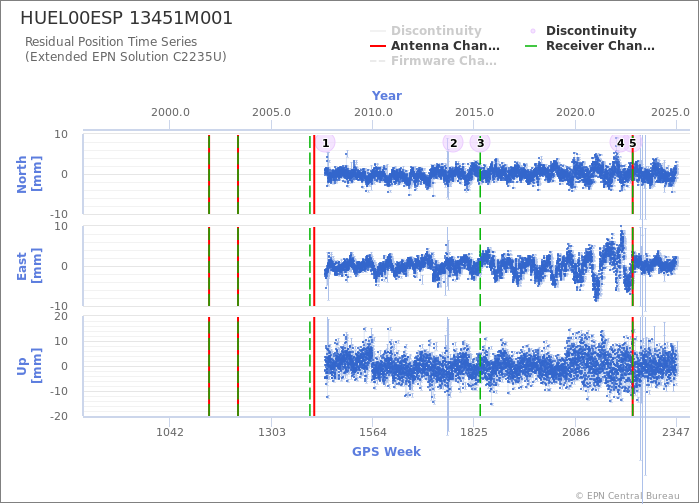

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station HUEL00ESP
Last ETRF2000 position valid from 295/2022 to 316/2022 expressed at epoch 001/2010
X = 5049613.147 m	Vx = -0.0011 m/y
Y = -612885.663 m	Vy = -0.0018 m/y
Z = 3835143.843 m	Vz = -0.0001 m/y
