EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	INRIM (Istituto Nazionale di Ricerca Metrologica)
RESPONSIBLE FOR METADATA	INRIM (Istituto Nazionale di Ricerca Metrologica)
CURRENT STATION CONFIGURATION	ieng00ita_20230704.log
STATUS IN EPN	included since 01-02-2004
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	SEPT POLARX5TR (27-06-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
LAST ANTENNA	SEPCHOKE_MC/NONE (11-04-2019 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEK, IGE, ROB, SGO, UPA
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 17-03-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

IENG00ITA0 :

ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)
2024/11/20 13:24 RTCM 3.3 Missing Coordinates

BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)
2024/11/20 10:16 RTCM 3.3 Missing Coordinates

ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)
2024/11/20 11:38 RTCM 3.3 Missing Coordinates

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

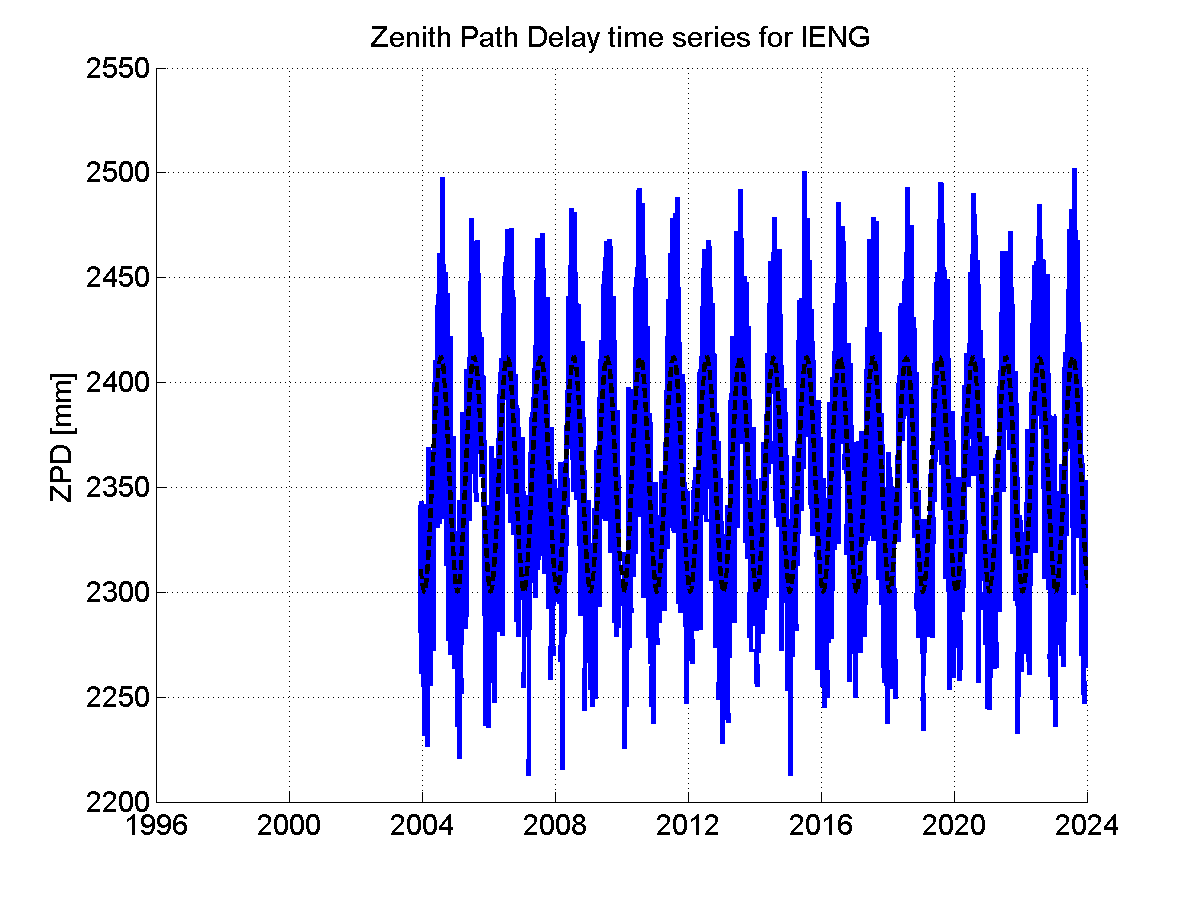

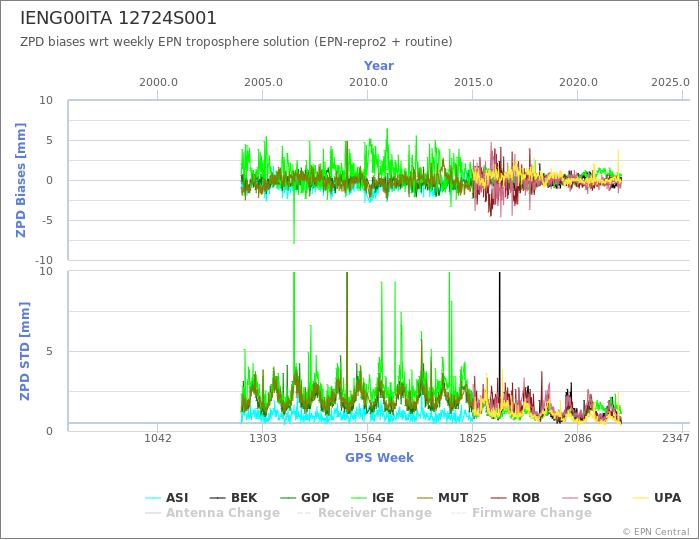

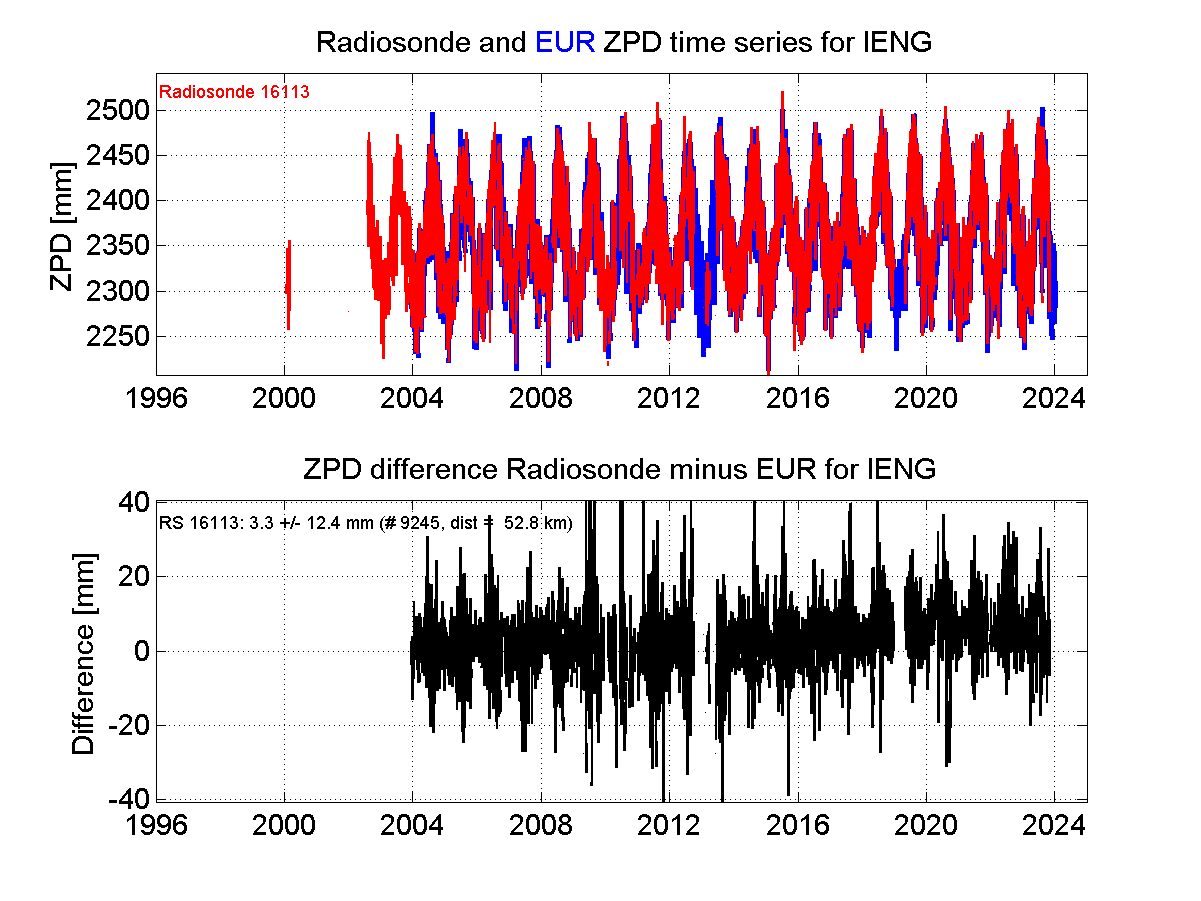

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

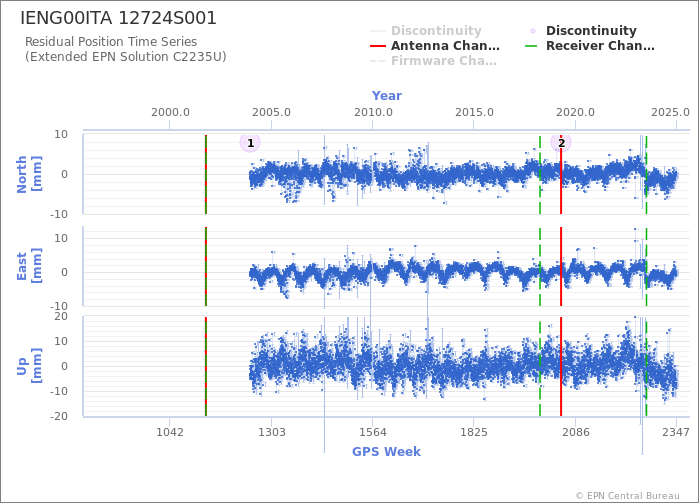

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station IENG00ITA
Last ETRF2000 position valid from 102/2019 to 316/2022 expressed at epoch 001/2010
X = 4476537.690 m	Vx = -0.0001 m/y
Y = 600431.183 m	Vy = -0.0000 m/y
Z = 4488761.113 m	Vz = -0.0005 m/y
