EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	LMV (Lantmäteriet, the Swedish mapping, cadastral and land registration authority)
RESPONSIBLE FOR METADATA	LMV (Lantmäteriet, the Swedish mapping, cadastral and land registration authority)
CURRENT STATION CONFIGURATION	jon600swe_20221115.log
STATUS IN EPN	included since 22-06-2014
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE ALLOY (15-11-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R3/LEIT (16-06-2011 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R3/LEIT (SN: 09030005) from 2011-06-16 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2011-02-07)
DATA ROUTINELY ANALYSED BY	BEV, MUT, NKG, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 28-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

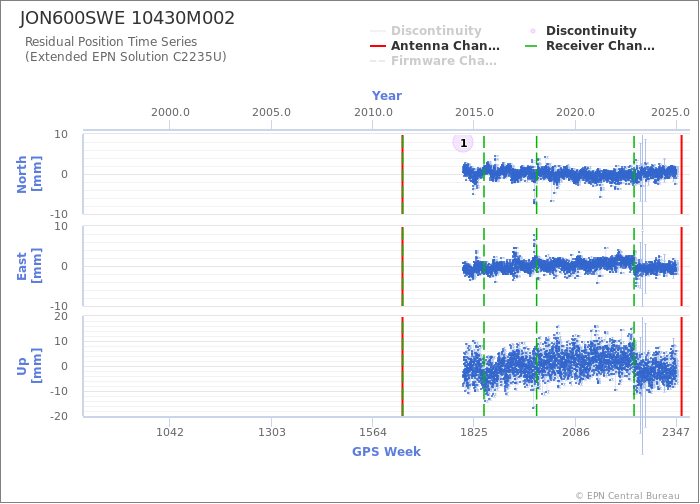

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station JON600SWE
Last ETRF2000 position valid from 173/2014 to 316/2022 expressed at epoch 001/2010
X = 3309994.393 m	Vx = 0.0020 m/y
Y = 828938.448 m	Vy = -0.0001 m/y
Z = 5370879.899 m	Vz = 0.0016 m/y
