EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
RESPONSIBLE FOR METADATA	MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
CURRENT STATION CONFIGURATION	khar00ukr_20171011.log
STATUS IN EPN	included since 20-03-2005
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-KHAR00UKR
LAST AVAILABLE DATA	03-05-2019 (dormant station)
LAST RECEIVER	NOV OEMV3 (20-07-2015 to now)
SET TO TRACK	GPS+GLO
LAST ANTENNA	NOV702GG/NONE (23-03-2015 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, SGO, UPA, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

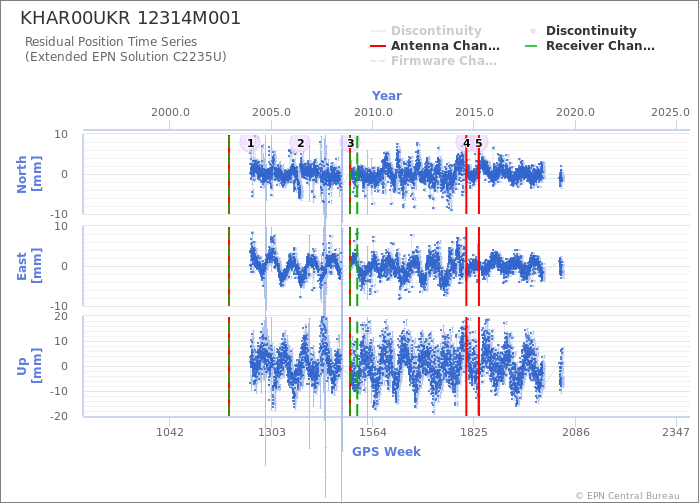

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station KHAR00UKR
Last ETRF2000 position valid from 111/2015 to 120/2019 expressed at epoch 001/2010
X = 3312984.737 m	Vx = -0.0002 m/y
Y = 2428203.258 m	Vy = -0.0001 m/y
Z = 4863307.644 m	Vz = 0.0003 m/y
