EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	HLBGSapos (Hessisches Landesamt für Bodenmanagement und Geoinformation)
RESPONSIBLE FOR METADATA	HLBGSapos (Hessisches Landesamt für Bodenmanagement und Geoinformation)
CURRENT STATION CONFIGURATION	klop00deu_20231012.log
STATUS IN EPN	included since 31-10-1999
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR50 (12-10-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR20/LEIM (31-10-2018 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR20/LEIM (SN: 20288013) from 2018-10-31 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C02, C07, C06, I05, date: 2018-01-15) TRM29659.00/NONE (SN: 0220181795) from 2002-07-02 to 2007-06-27 : GEO - ROBOT (freq: G01, G02, date: 2002-06-10) TRM57971.00/TZGD (SN: 1441043065) from 2013-06-28 to 2018-10-31 : BONN - CHAMBER (freq: G01, G02, R01, R02, date: 2011-04-04)
DATA ROUTINELY ANALYSED BY	BKG, NKG, ROB, SUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 09-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

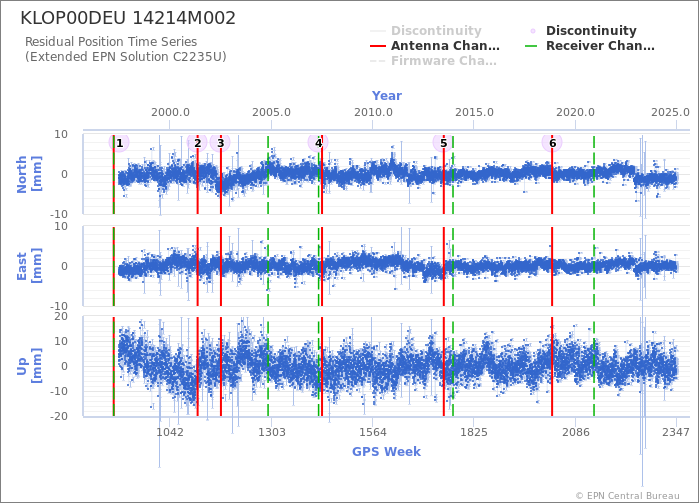

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station KLOP00DEU
Last ETRF2000 position valid from 305/2018 to 316/2022 expressed at epoch 001/2010
X = 4041875.721 m	Vx = -0.0003 m/y
Y = 620655.063 m	Vy = -0.0005 m/y
Z = 4878636.613 m	Vz = -0.0005 m/y
