Kootwijk, Netherlands (the) (KOSG00NLD)

RESPONSIBLE AGENCY DUT (Delft University of Technology)
RESPONSIBLE FOR METADATA DUT (Delft University of Technology)
CURRENT STATION CONFIGURATION kosg00nld_20230417.log
STATUS IN EPN former since 18-09-2011
LAST AVAILABLE DATA 17-09-2011 (decommissioned station)
LAST RECEIVER LEICA GRX1200GGPRO (23-04-2012 to 27-11-2015)
SET TO TRACK GPS+GLO
LAST ANTENNA AOAD/M_B/NONE (13-09-2011 to 08-03-2016)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 255/2011
BKGI 260/2011
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station KOSG00NLD
Last ETRF2000 position valid from 076/2003 to 249/2011
expressed at epoch 001/2010
X = 3899225.401 m Vx = -0.0009 m/y
Y = 396731.718 m Vy = -0.0002 m/y
Z = 5015078.217 m Vz = -0.0010 m/y

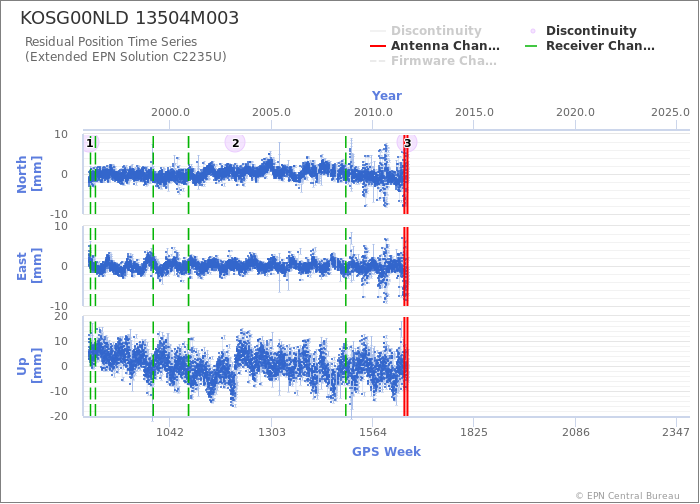

Position time series

Position time series

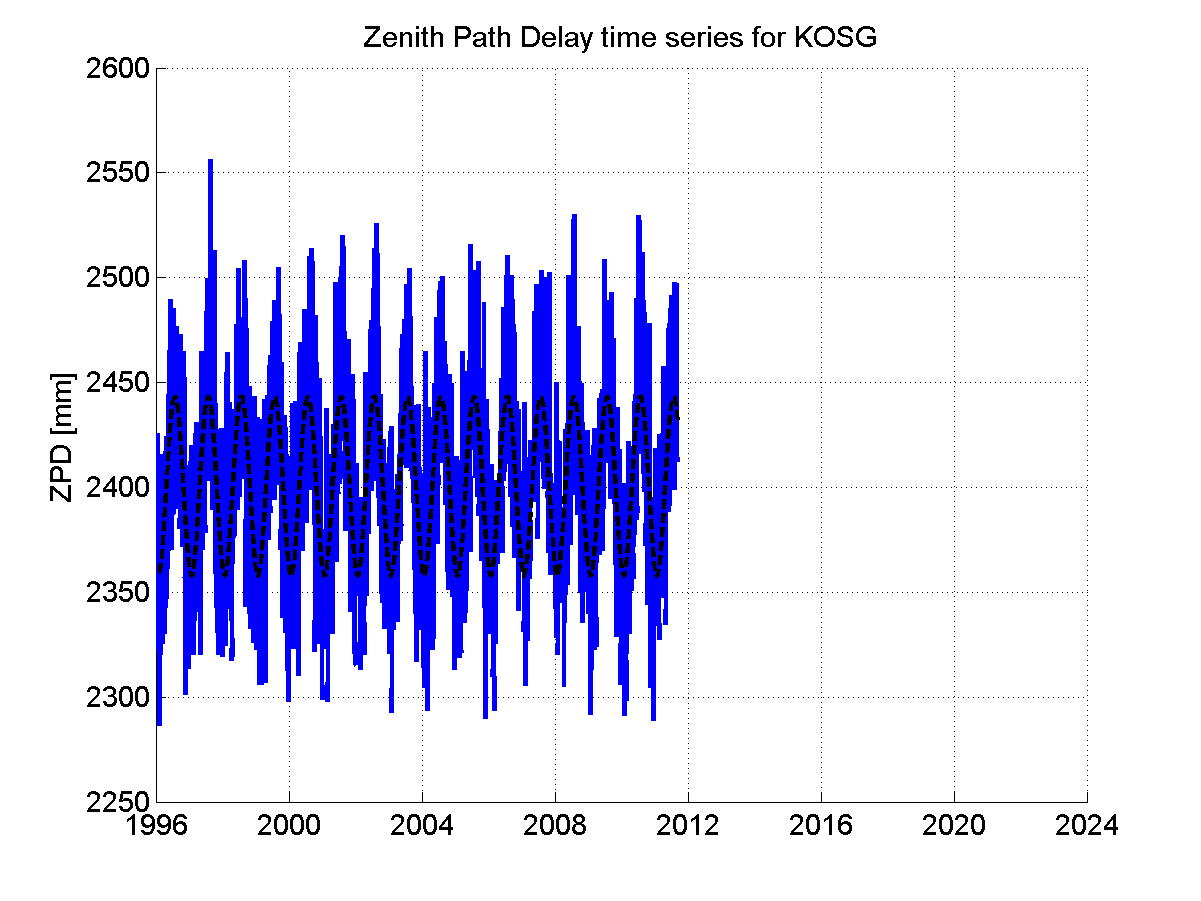

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

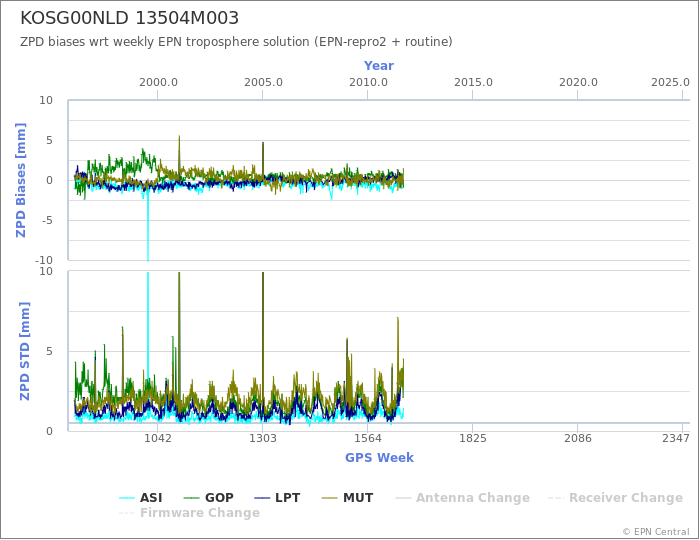

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

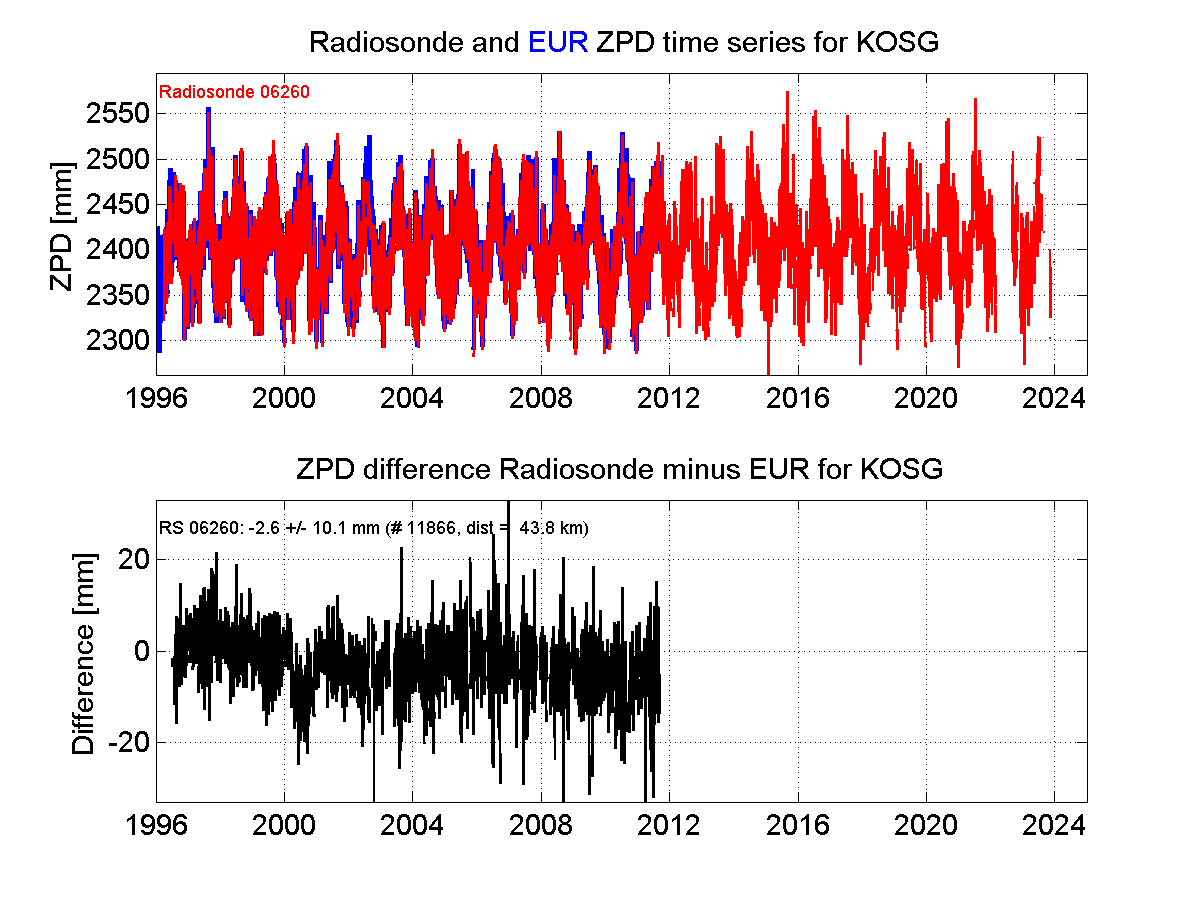

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
