EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	CSIRP&NFC (Centre of Special Information Receiving and Processing and Navigation Field Control)
RESPONSIBLE FOR METADATA	MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
CURRENT STATION CONFIGURATION	krrs00ukr_20240610.log
STATUS IN EPN	included since 29-04-2018
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-KRRS00UKR
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE R9S (28-05-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM105000.10/NONE (26-02-2024 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEV, MUT, UPA, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 22-02-2024.

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

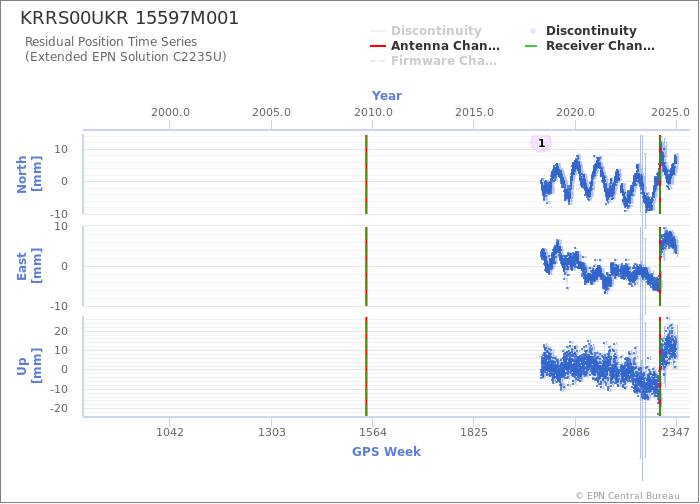

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station KRRS00UKR
Last ETRF2000 position valid from 119/2018 to 316/2022 expressed at epoch 001/2010
X = 3579309.161 m	Vx = 0.0010 m/y
Y = 2259514.464 m	Vy = 0.0004 m/y
Z = 4755359.735 m	Vz = -0.0001 m/y
