EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA	IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION	leon00esp_20240318.log
STATUS IN EPN	included since 09-09-2007
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-LEON00ESP
LAST AVAILABLE DATA	01-07-2024
LAST RECEIVER	LEICA GR50 (18-03-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR25/NONE (16-06-2009 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEK, BKG, IGE, MUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

LEON00ESP0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/07/02 22:02 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/07/02 22:02 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/07/02 22:02 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0600 m) wrt site log (0.21534 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/07/02 20:05 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/07/02 20:05 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0600 m) wrt site log (0.21534 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/07/03 01:12 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/07/03 01:12 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0600 m) wrt site log (0.21534 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

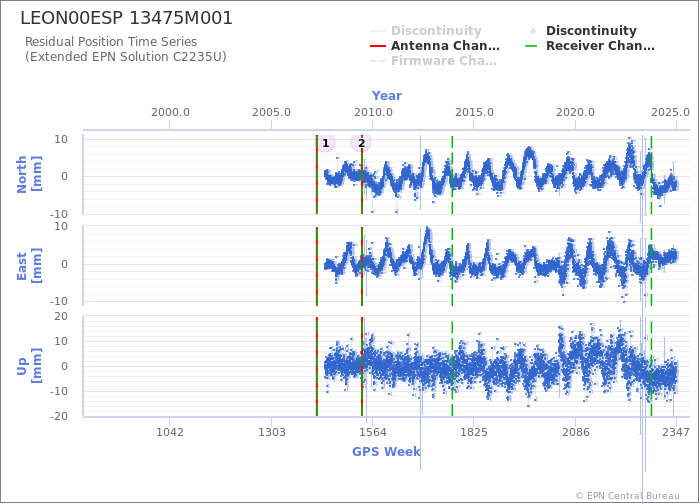

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station LEON00ESP
Last ETRF2000 position valid from 172/2009 to 316/2022 expressed at epoch 001/2010
X = 4680871.381 m	Vx = -0.0007 m/y
Y = -463168.401 m	Vy = -0.0008 m/y
Z = 4294606.555 m	Vz = -0.0005 m/y
