EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ICGC (Institut Cartografic i Geologic de Catalunya)
RESPONSIBLE FOR METADATA	ICGC (Institut Cartografic i Geologic de Catalunya)
CURRENT STATION CONFIGURATION	lliv00esp_20240909.log
STATUS IN EPN	included since 13-06-1999
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-LLIV00ESP
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR50 (09-09-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS
LAST ANTENNA	LEIAR25.R4/NONE (28-04-2016 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/NONE (SN: 726354) from 2016-04-28 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2015-11-30)
DATA ROUTINELY ANALYSED BY	BEK, IGE, MUT, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 15-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

LLIV00ESP0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/20 14:50 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS)
2024/11/20 14:50 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/20 11:45 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS)
2024/11/20 11:45 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/20 13:09 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS)
2024/11/20 13:09 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

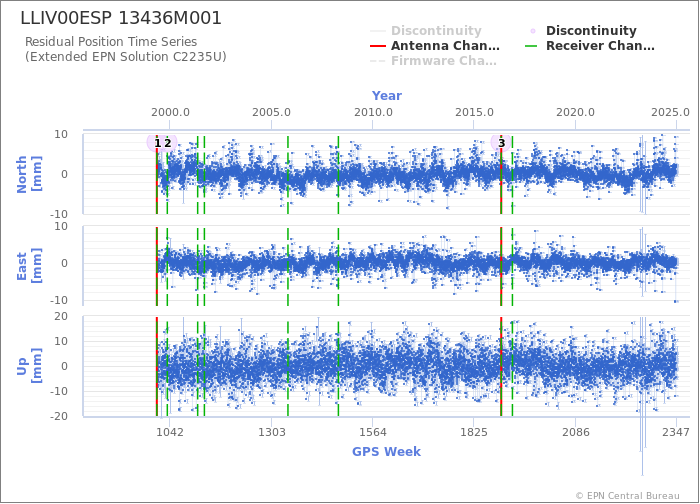

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station LLIV00ESP
Last ETRF2000 position valid from 122/2016 to 316/2022 expressed at epoch 001/2010
X = 4709586.508 m	Vx = -0.0004 m/y
Y = 162244.346 m	Vy = -0.0003 m/y
Z = 4285914.026 m	Vz = -0.0006 m/y
