EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA	IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION	lpal00esp_20240422.log
STATUS IN EPN	included since 12-05-2002
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-LPAL00ESP
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR50 (22-04-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR20/LEIM (05-04-2022 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR20/LEIM (SN: 24238037) from 2022-04-05 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, R04, R06, E01, E05, E06, E07, E08, C01, C02, C05, C06, C07, C08, J01, J02, J05, J06, S01, S05, I05, date: 2021-11-02) - careful: not used within EPN analysis
DATA ROUTINELY ANALYSED BY	BEK, IGE, MUT, RGA
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

LPAL00ESP0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 14:53 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/11/20 14:53 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/11/20 14:53 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2307 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 11:48 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/11/20 11:48 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2307 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 13:12 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/11/20 13:12 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2307 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

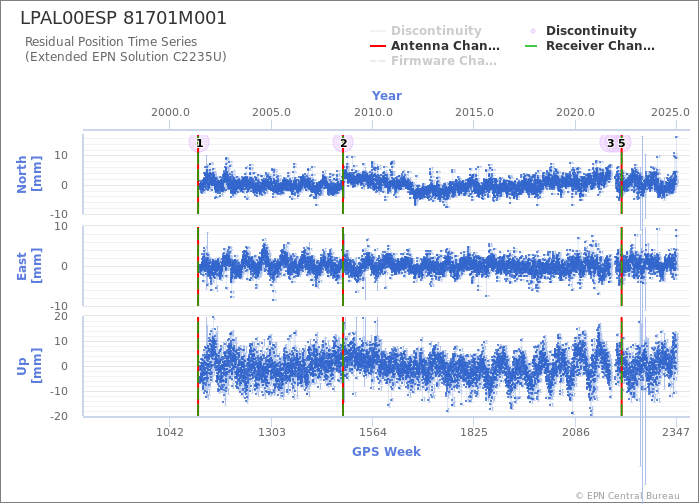

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station LPAL00ESP
Last ETRF2000 position valid from 096/2022 to 316/2022 expressed at epoch 001/2010
X = 5326646.350 m	Vx = -0.0027 m/y
Y = -1719826.570 m	Vy = -0.0037 m/y
Z = 3052043.409 m	Vz = -0.0002 m/y
