EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	RESIF (Réseau sismologique et géodésique francais, CNRS)
RESPONSIBLE FOR METADATA	CNAM (Conservatorie National des Arts et Métiers)
CURRENT STATION CONFIGURATION	man200fra_20220506.log
STATUS IN EPN	included since 28-03-2010
LAST AVAILABLE DATA	17-04-2024
LAST RECEIVER	TRIMBLE NETR9 (28-09-2018 to now)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	TRM57971.00/NONE (12-10-2016 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	IGE, IGN, LPT, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 28-03-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

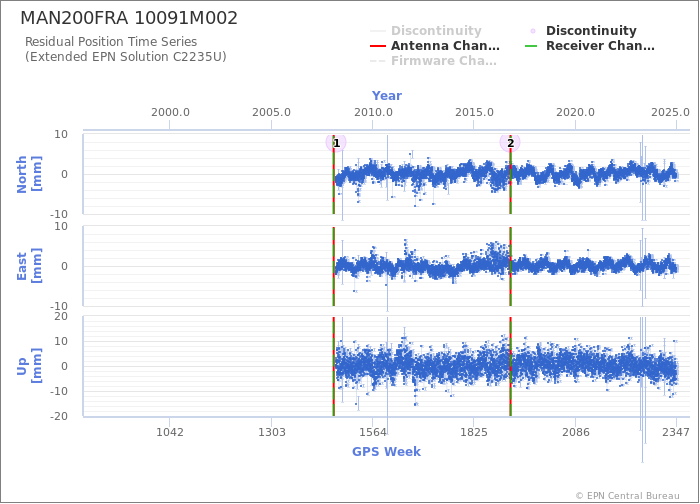

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station MAN200FRA
Last ETRF2000 position valid from 290/2016 to 316/2022 expressed at epoch 001/2010
X = 4274276.156 m	Vx = -0.0008 m/y
Y = 11584.086 m	Vy = -0.0001 m/y
Z = 4718385.793 m	Vz = -0.0008 m/y
