Jachymov, Czechia (MARJ00CZE)

RESPONSIBLE AGENCY IRSM (Academy of Sciences of the Czech Republic Institute of Rock Structure and Mechanics)
RESPONSIBLE FOR METADATA IRSM (Academy of Sciences of the Czech Republic Institute of Rock Structure and Mechanics)
CURRENT STATION CONFIGURATION marj00cze_20220512.log
STATUS IN EPN former since 06-09-2015
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 04-09-2015 (decommissioned station)
LAST RECEIVER TPS NET-G3A (02-08-2012 to 06-09-2015)
SET TO TRACK GPS+GLO
LAST ANTENNA ASH701946.2/SNOW (15-05-2003 to 06-09-2015)
INDIVIDUAL CALIBRATION(S) none
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 247/2015
BKGE 246/2015
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station MARJ00CZE
Last ETRF2000 position valid from 094/2012 to 247/2015
expressed at epoch 001/2010
X = 3975133.004 m Vx = -0.0005 m/y
Y = 909950.319 m Vy = -0.0005 m/y
Z = 4888907.948 m Vz = -0.0006 m/y

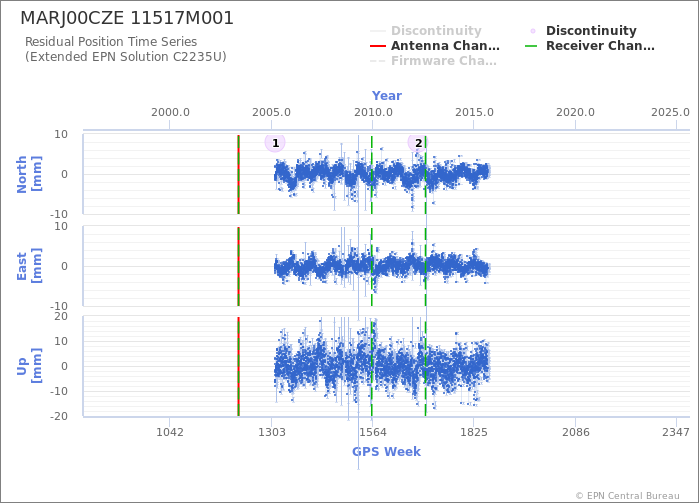

Position time series

Position time series

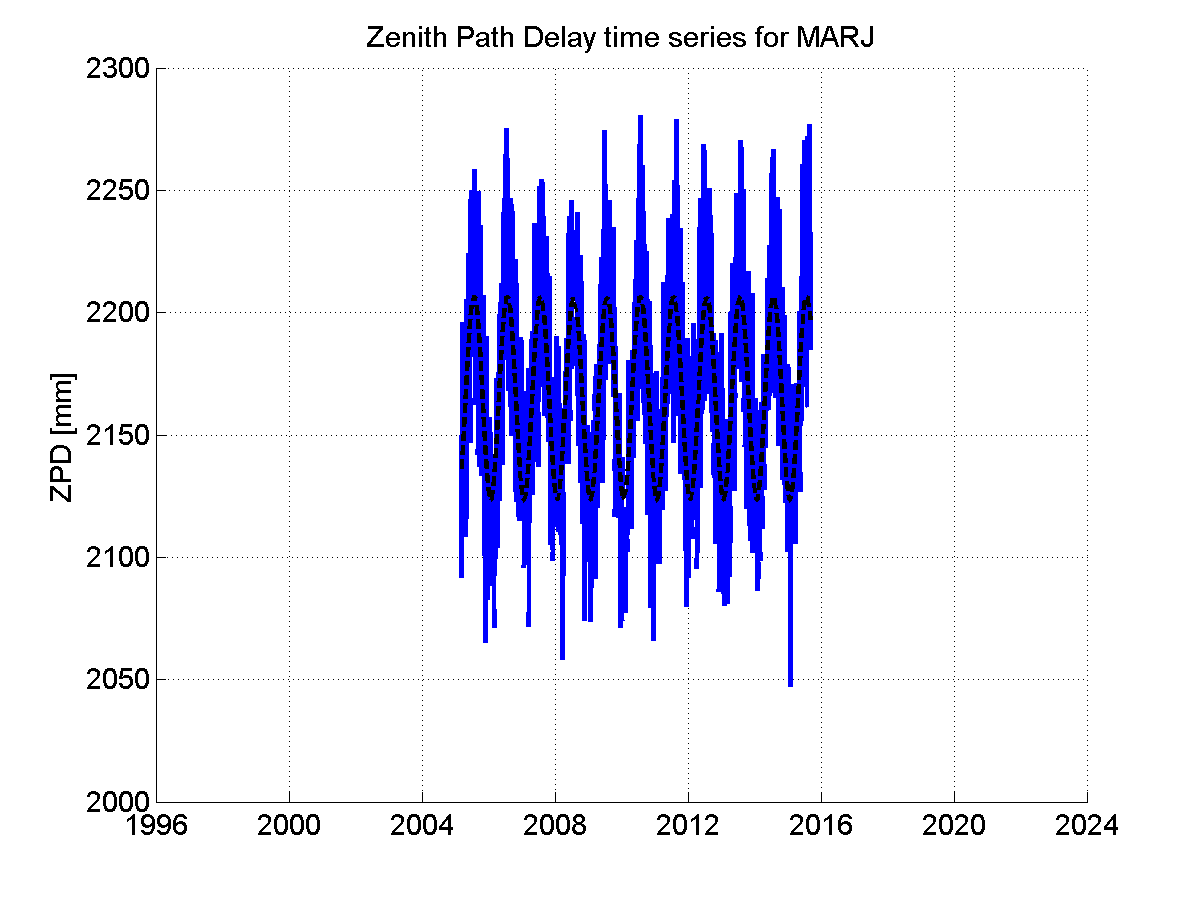

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

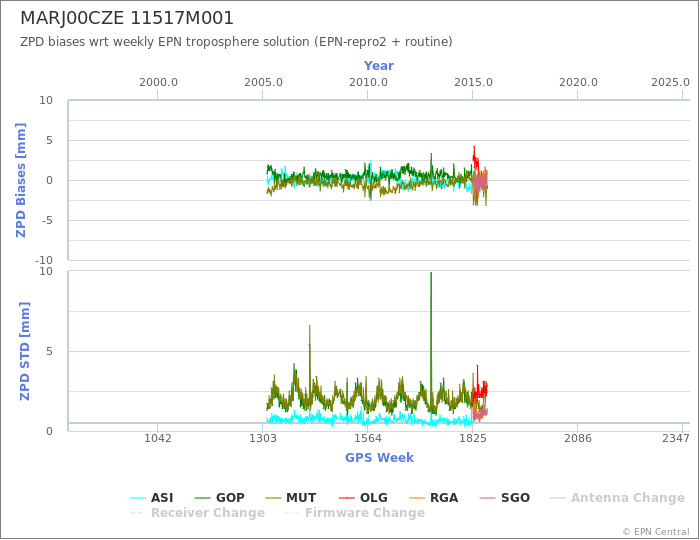

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

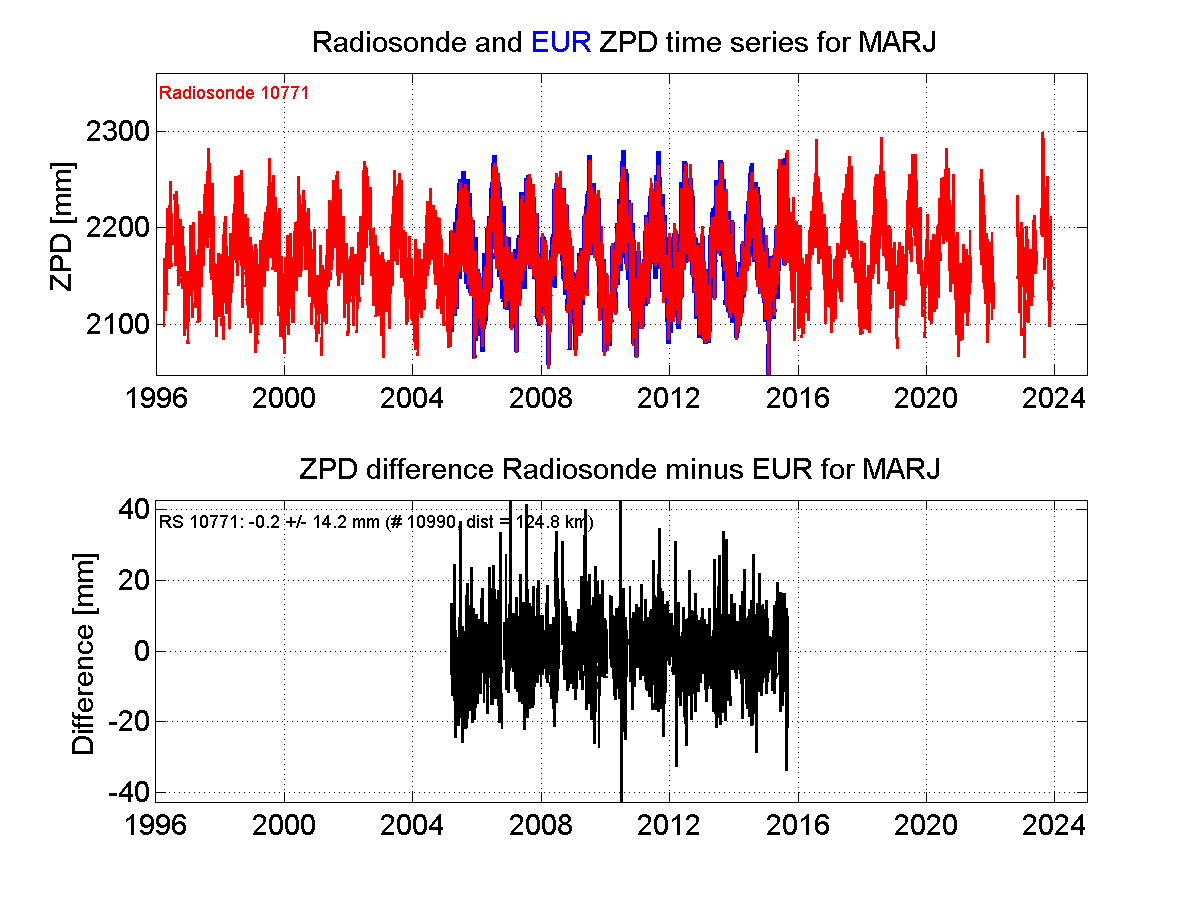

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
