EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	OSI (Ordnance Survey Ireland/ Tailte Eireann National Mapping Division)
RESPONSIBLE FOR METADATA	OSI (Ordnance Survey Ireland/ Tailte Eireann National Mapping Division)
CURRENT STATION CONFIGURATION	mlhd00irl_20230331.log
STATUS IN EPN	included since 18-07-2021
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR50 (13-12-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR20/LEIM (06-11-2020 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BKG, GFZ, IGE, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 09-12-2020.

No recent data available

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

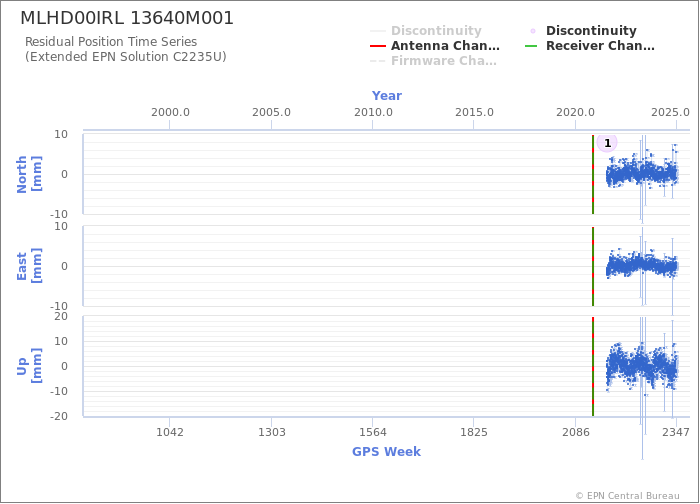

Position, Velocity & Time Series

EUREF is providing only positions for the station MLHD00IRL
Last ETRF2000 position valid from 199/2021 to 316/2022 expressed at epoch 101/2022
X = 3602853.825 m
Y = -464041.267 m
Z = 5225107.310 m
