EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IESSG (University of Nottingham)
RESPONSIBLE FOR METADATA	IESSG (University of Nottingham)
CURRENT STATION CONFIGURATION	newl00gbr_20240830.log
STATUS IN EPN	former since 01-09-2024
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	12-09-2021 (decommissioned station)
LAST RECEIVER	TRIMBLE NETR9 (08-02-2019 to 29-08-2024)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	TRM59900.00/SCIS (17-09-2019 to 29-08-2024)
INDIVIDUAL CALIBRATION(S)	none
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

RINEX V2.11 - GPS+GLO+GAL

Daily

(data calendar)

Data centres	Last data
EPNCB (historical)	255/2021
BEV	255/2021
BKGE	255/2021

Hourly

No recent data available

RINEX Data Quality

Daily tracking performances

Daily tracking performances

Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station NEWL00GBR
Last ETRF2000 position valid from 144/2013 to 187/2021 expressed at epoch 001/2010
X = 4079954.173 m	Vx = -0.0011 m/y
Y = -395930.491 m	Vy = -0.0004 m/y
Z = 4870196.714 m	Vz = -0.0009 m/y

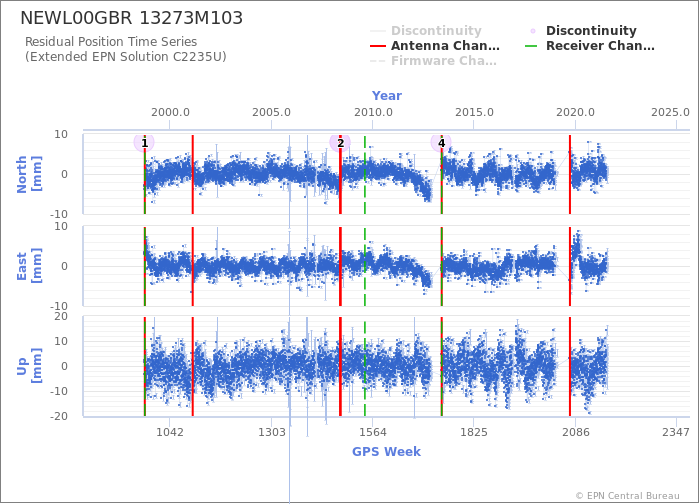

Position time series

Position time series

Tropospheric Delays

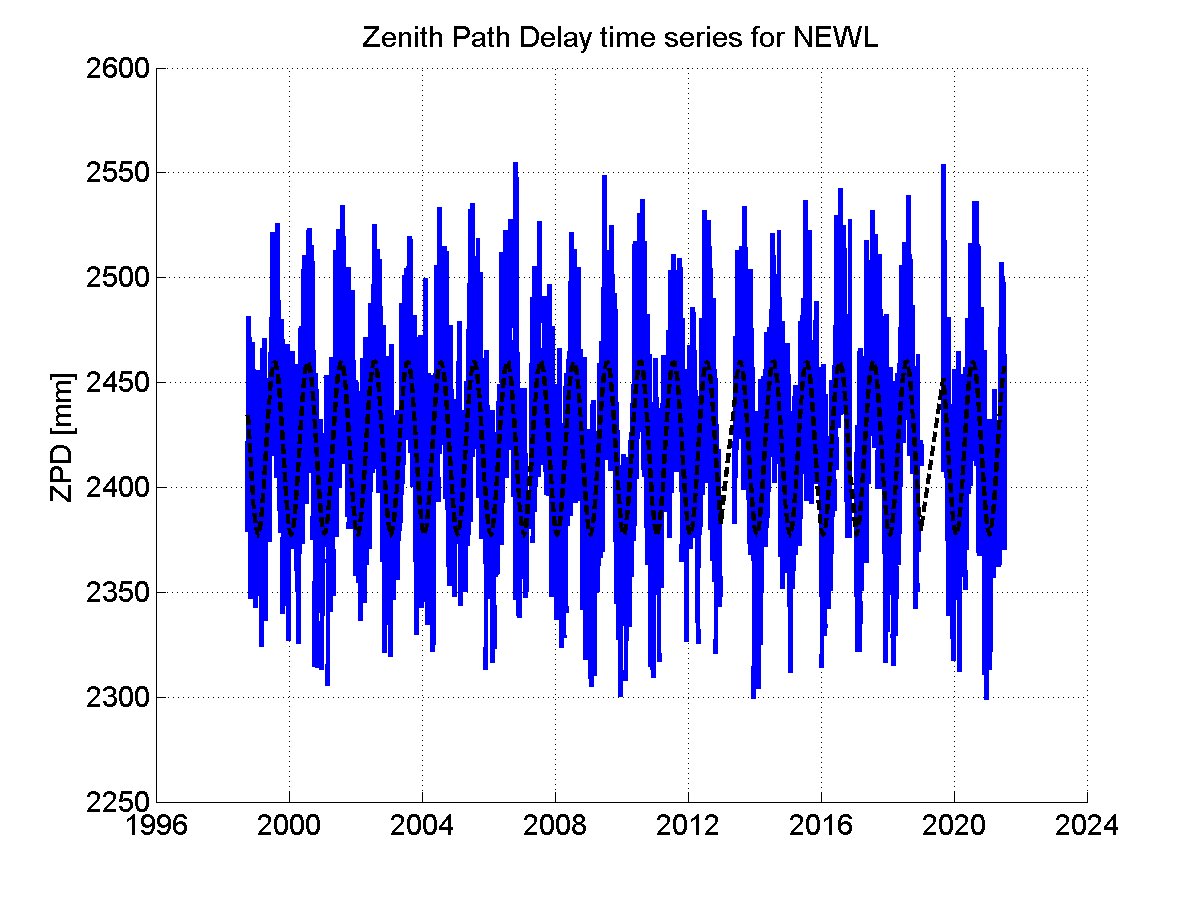

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

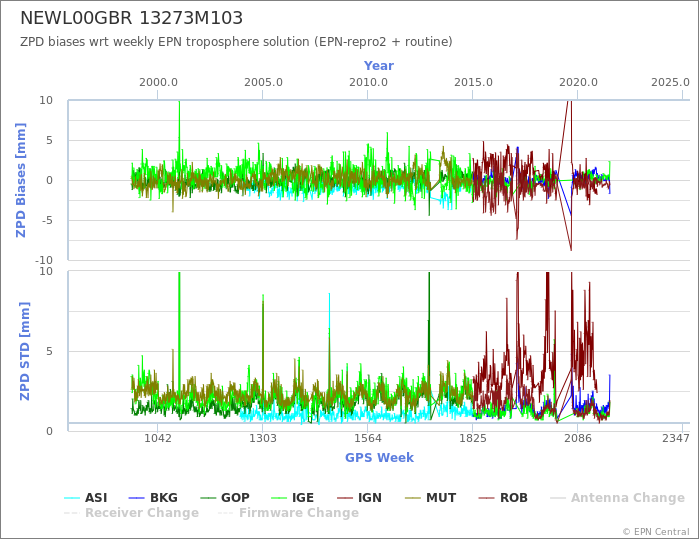

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

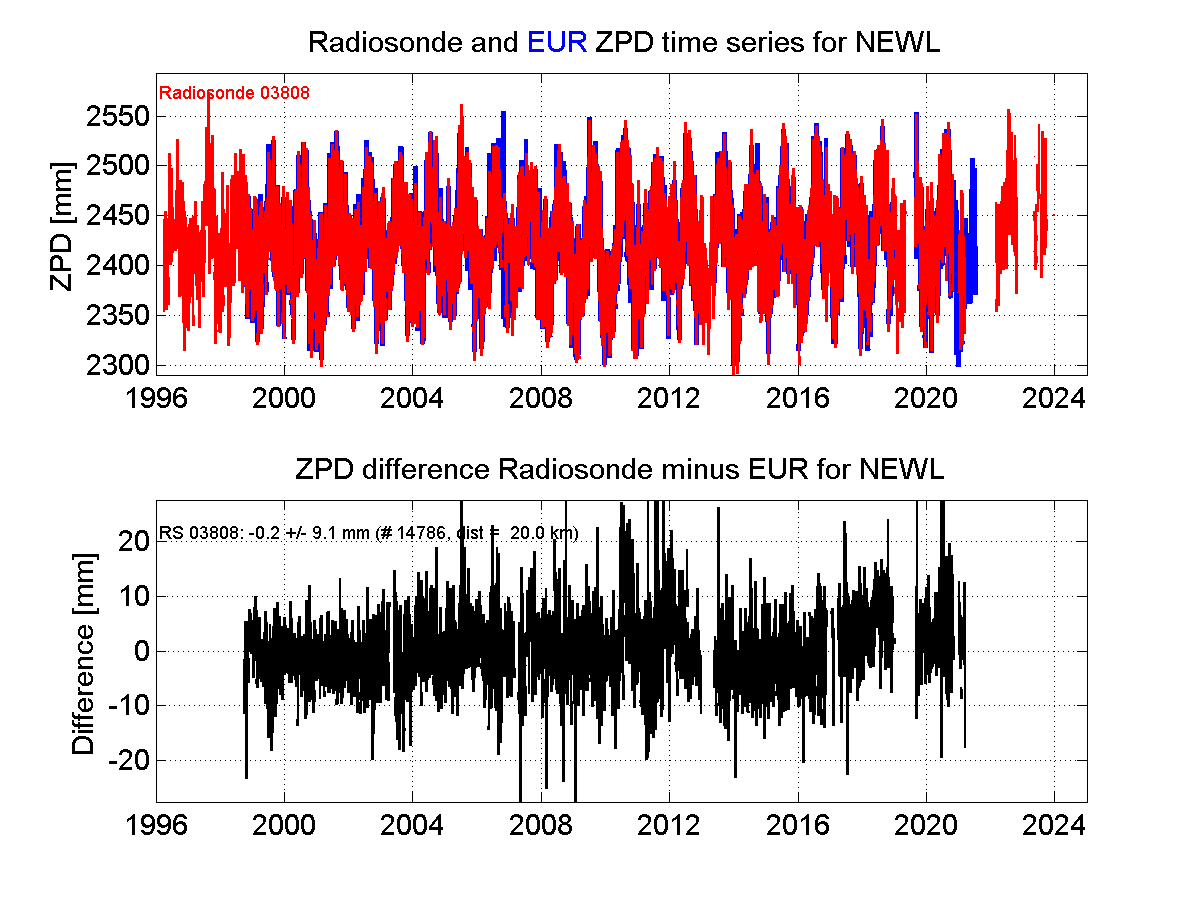

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
