EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	nico00cyp_20230509.log
STATUS IN EPN	included since 22-06-1997
LAST AVAILABLE DATA	17-04-2024
LAST RECEIVER	LEICA GR50 (14-02-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (16-07-2013 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 725285) from 2013-07-16 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E06, E07, E08, date: 2012-03-07) LEIAT504GG/LEIS (SN: 200435) from 2008-06-10 to 2013-07-16 : GEO - ROBOT (freq: G01, G02, date: 2008-04-17)
DATA ROUTINELY ANALYSED BY	BEK, BEV, BKG, MUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 16-02-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

NICO00CYP0 :

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/18 21:11 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/18 21:11 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.61.290) wrt site log (4.61/7.811)
2024/04/18 21:11 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0650 m) wrt site log (0.22397 m)
2024/04/18 21:11 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0744 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/18 02:15 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/04/18 02:15 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.61.290) wrt site log (4.61/7.811)
2024/04/18 02:15 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0650 m) wrt site log (0.22397 m)
2024/04/18 02:15 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.0744 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

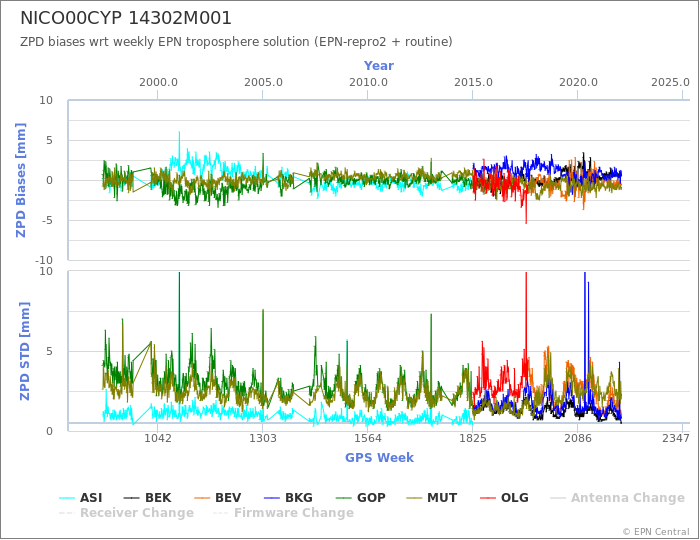

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

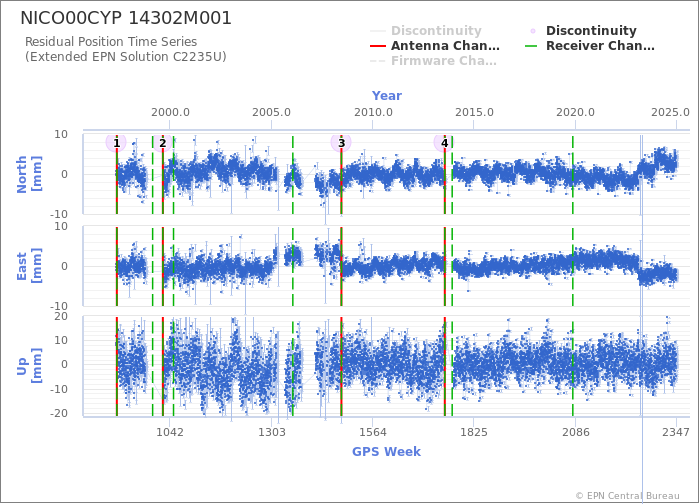

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station NICO00CYP
Last ETRF2000 position valid from 363/2013 to 316/2022 expressed at epoch 001/2010
X = 4359416.095 m	Vx = 0.0022 m/y
Y = 2874116.792 m	Vy = -0.0064 m/y
Z = 3650777.625 m	Vz = 0.0021 m/y
