Oberpfaffenhofen, Germany (OBE200DEU)

RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 346/2007
BEV 346/2007
BKGI 346/2007
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF has classified OBE200DEU as a class A station
Last ETRF2000 position valid from 309/2001 to 346/2007
expressed at epoch 001/2010
X = 4186558.633 m Vx = -0.0005 m/y
Y = 835027.189 m Vy = 0.0004 m/y
Z = 4723759.240 m Vz = -0.0007 m/y

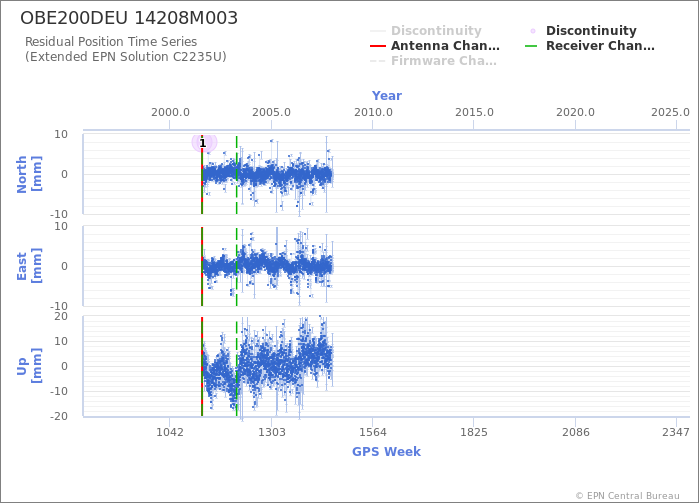

Position time series

Position time series

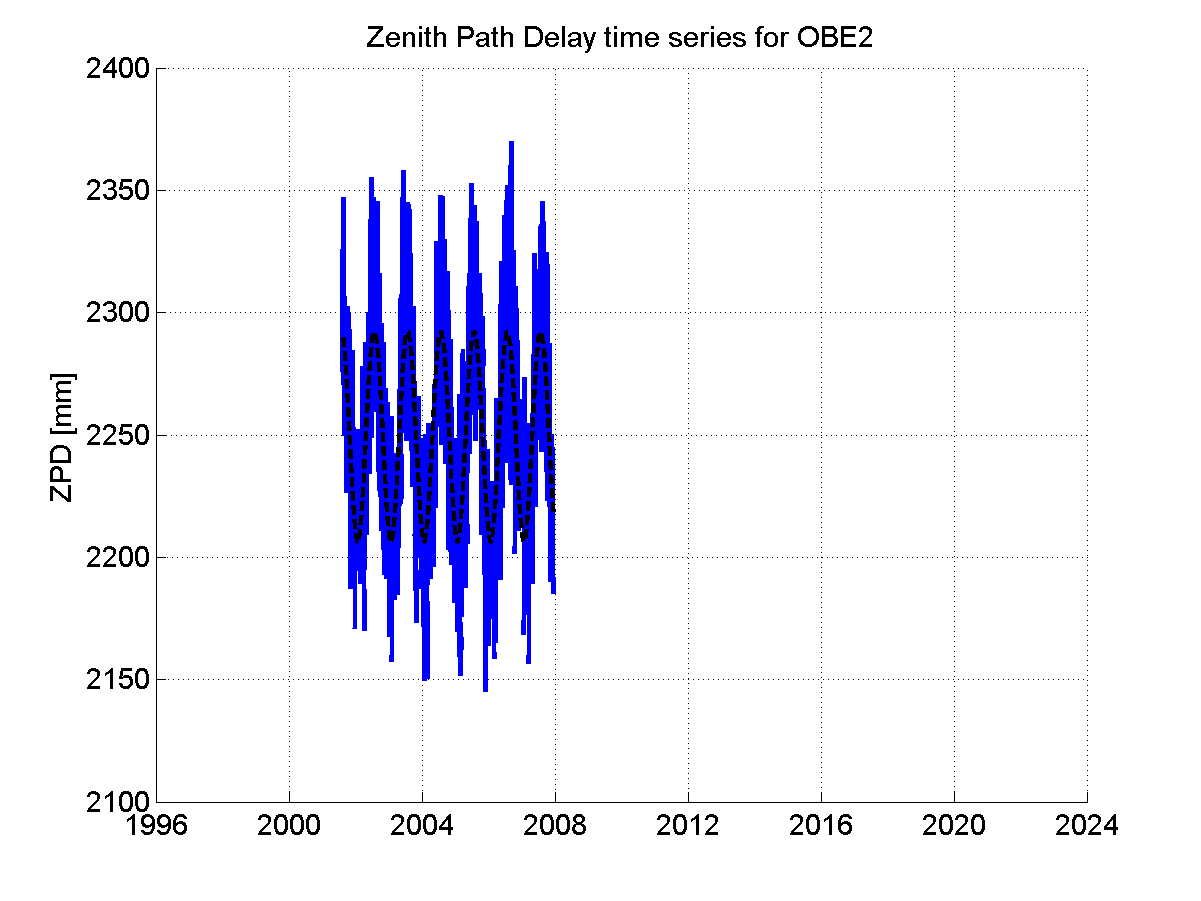

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

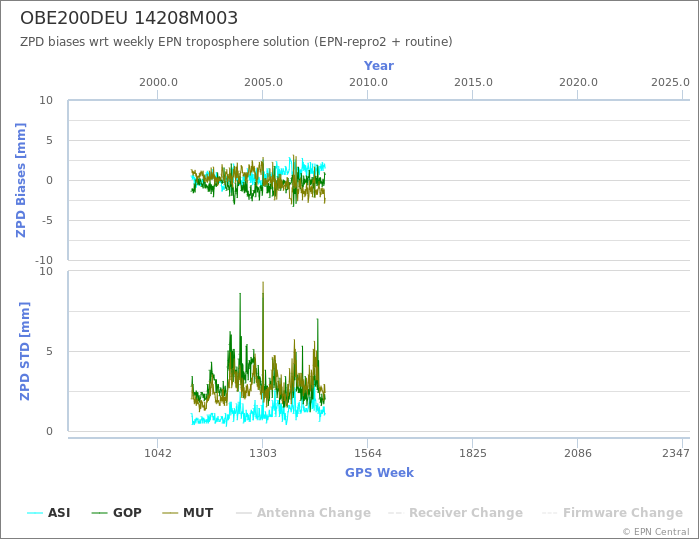

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

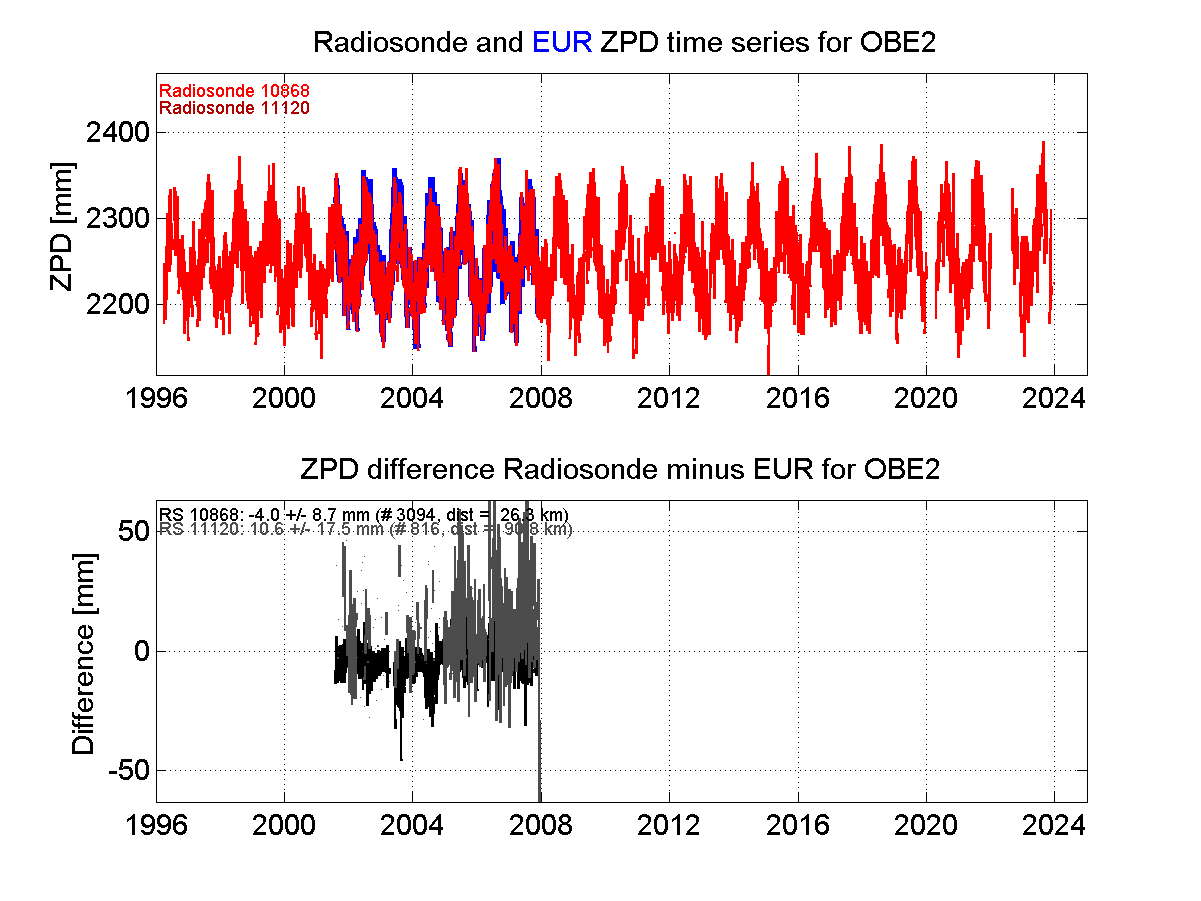

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
