EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	FGI (National Land Survey of Finland)
RESPONSIBLE FOR METADATA	FGI (National Land Survey of Finland)
CURRENT STATION CONFIGURATION	olk200fin_20240417.log
STATUS IN EPN	included since 24-06-2018
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	JAVAD TRE_3 DELTA (17-04-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	JAVRINGANT_DM/SCIS (15-01-2014 to now)
INDIVIDUAL CALIBRATION(S)	JAVRINGANT_DM/SCIS (SN: 00746) from 2014-01-15 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2012-08-27)
DATA ROUTINELY ANALYSED BY	BEV, GFZ, NKG, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 19-08-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

OLK200FIN0 :

ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/11/20 15:56 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS)
2024/11/20 15:56 RTCM 3.3/1033: Incorrect Receiver SN in stream (11NB9PHH8B7E90T4F2MW) wrt site log (02874)
2024/11/20 15:56 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1799 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/11/20 12:59 RTCM 3.3/1033: Incorrect Receiver SN in stream (11NB9PHH8B7E90T4F2MW) wrt site log (02874)
2024/11/20 12:59 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1799 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/11/20 14:23 RTCM 3.3/1033: Incorrect Receiver SN in stream (11NB9PHH8B7E90T4F2MW) wrt site log (02874)
2024/11/20 14:23 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.1799 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

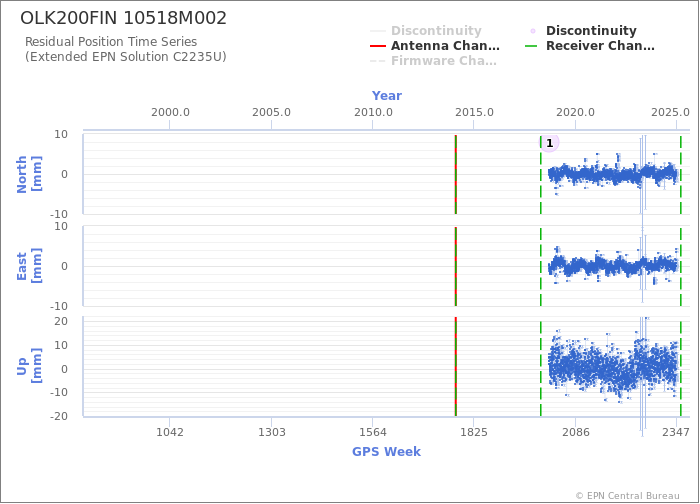

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station OLK200FIN
Last ETRF2000 position valid from 259/2018 to 316/2022 expressed at epoch 001/2010
X = 2866981.654 m	Vx = 0.0031 m/y
Y = 1129668.631 m	Vy = 0.0016 m/y
Z = 5565665.545 m	Vz = 0.0047 m/y
