Ohrid, North Macedonia (ORID00MKD)

RESPONSIBLE AGENCY AREC (Agency for Real Estate Cadastre)
RESPONSIBLE FOR METADATA AREC (Agency for Real Estate Cadastre)
CURRENT STATION CONFIGURATION orid00mkd_20240521.log
STATUS IN EPN included since 30-07-2000
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 21-11-2024
LAST RECEIVER LEICA GR30 (23-04-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA LEIAR25.R4/LEIT (18-02-2020 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAT504GG/LEIS (SN: 200627) from 2008-11-06 to 2020-02-18 :
DATA ROUTINELY ANALYSED BY ASI, BKG, RGA, SUT, UPA
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 03-03-2021.

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 061/2021 N/A
BEV 061/2021 N/A
BKGI 061/2021 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 326/2024 100%
BKGI 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 95.83%
BKGI 326/2024 (C) 97.62% 65.48%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

ORID00MKD0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/20 16:05 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 16:05 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2024/11/20 16:05 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

    2024/11/20 16:05 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.3112 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/20 13:08 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 13:08 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

    2024/11/20 13:08 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.3112 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/20 14:32 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 14:32 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

    2024/11/20 14:32 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.3112 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station ORID00MKD
Last ETRF2000 position valid from 050/2020 to 316/2022
expressed at epoch 001/2010
X = 4498452.027 m Vx = 0.0014 m/y
Y = 1708266.741 m Vy = 0.0011 m/y
Z = 4173591.628 m Vz = -0.0026 m/y

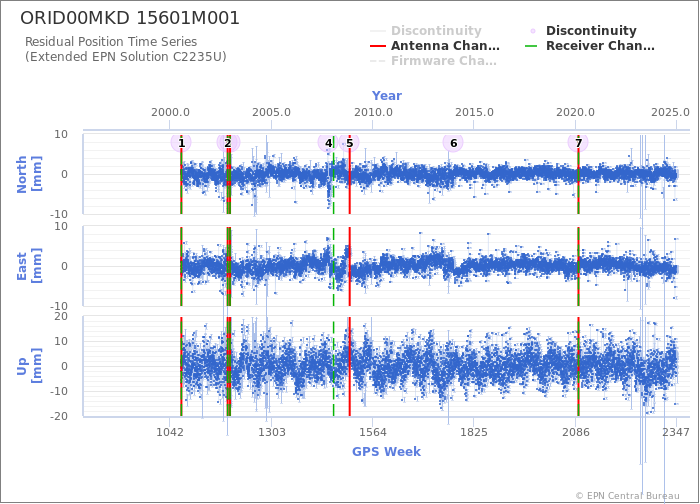

Position time series

Position time series
Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

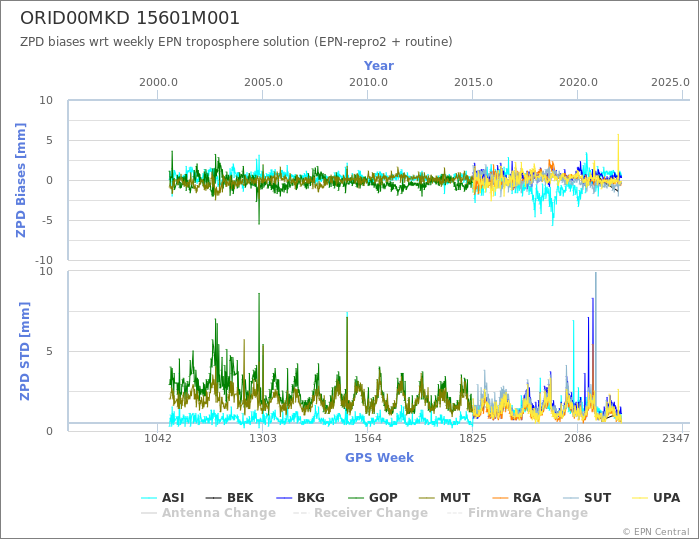

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

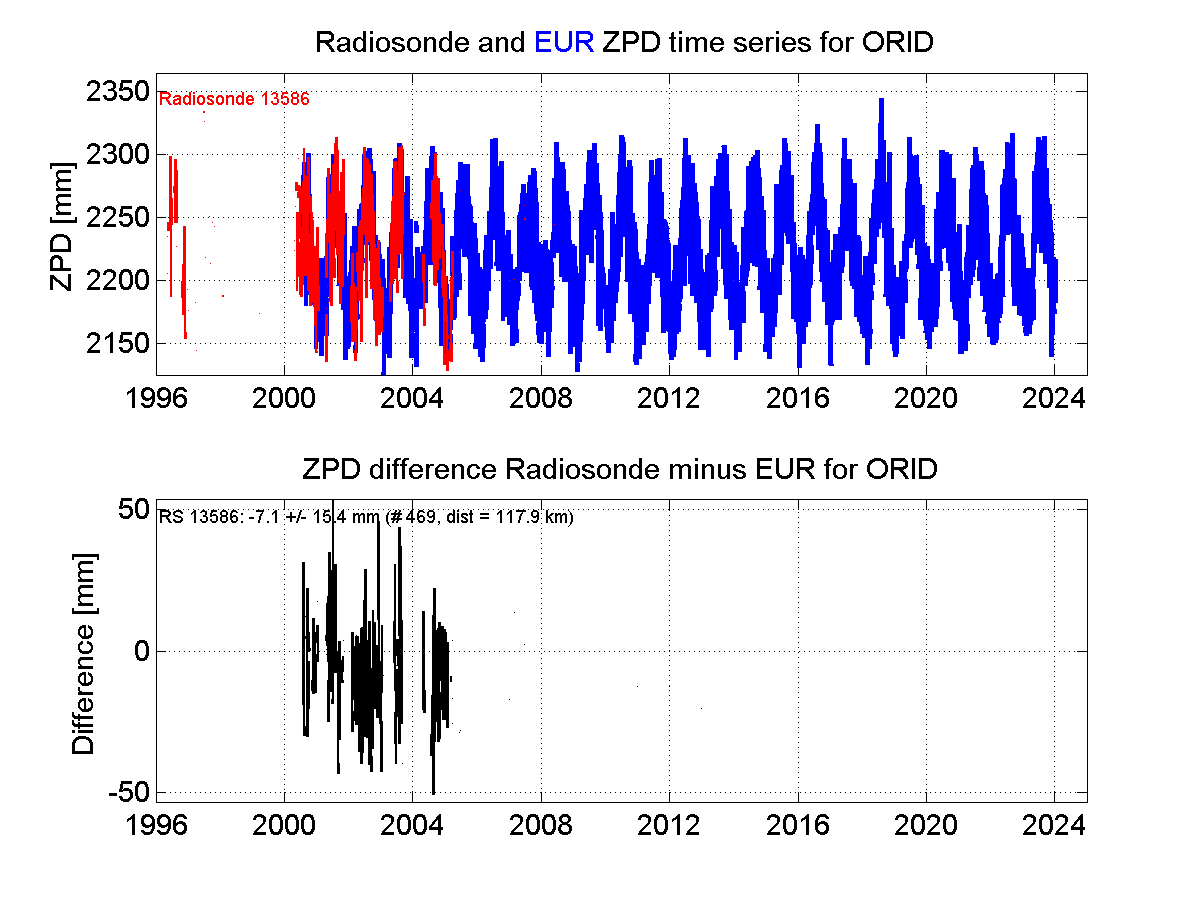

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
