Pasaia, Spain (PASA00ESP)

RESPONSIBLE FOR METADATA ARA (ARANZADI Society of Sciences)
RESPONSIBLE AGENCY GFA (Gipuzkoako Foru Aldundia - Diputación Foral de Gipuzkoa)
CURRENT STATION CONFIGURATION pasa00esp_20220408.log
STATUS IN EPN included since 08-11-2015
LAST AVAILABLE DATA 29-11-2022
LAST RECEIVER LEICA GR30 (02-02-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA LEIAR20/LEIM (05-12-2014 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR20/LEIM (SN: 16073034) from 2013-12-17 to 2014-07-11, from 2014-07-11 to 2014-10-20, from 2014-12-05 to now :
DATA ROUTINELY ANALYSED BY ASI, IGE, MUT, UPA
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 26-02-2021.

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 057/2021 N/A
BEV 057/2021 N/A
BKGE 057/2021 N/A
RINEX V3.03 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 327/2022 78.57%
BEV 333/2022 100%
BKGE 333/2022 96.43%
Hourly
Data centres Online Last data Availability Latency
BEV 057/2021 (A) N/A 0%
BKGE 057/2021 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 334/2022 (W) 100% 95.24%
BKGE 334/2022 (W) 94.64% 47.62%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Real-time

PASA00ESP0 :

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2022/11/30 21:20 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2022/11/30 21:20 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.52) wrt site log (4.52/7.711)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2022/11/30 02:21 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2022/11/30 02:21 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.52) wrt site log (4.52/7.711)

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station PASA00ESP
Last ETRF2000 position valid from 312/2015 to 211/2022
expressed at epoch 001/2010
X = 4644909.435 m Vx = -0.0013 m/y
Y = -156645.609 m Vy = -0.0002 m/y
Z = 4353622.673 m Vz = -0.0013 m/y

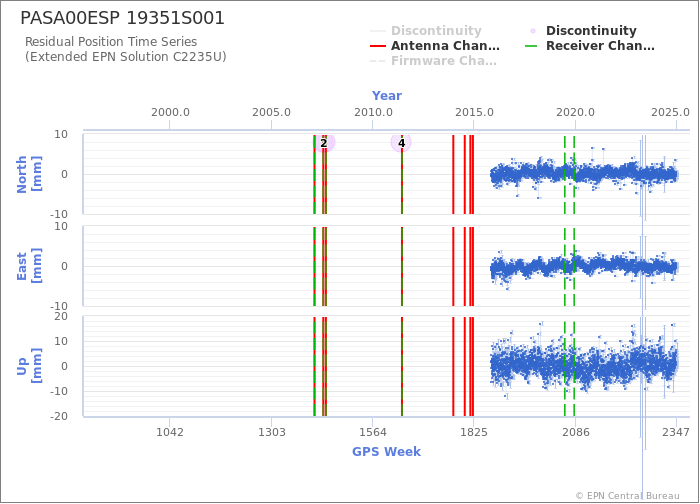

Position time series

Position time series

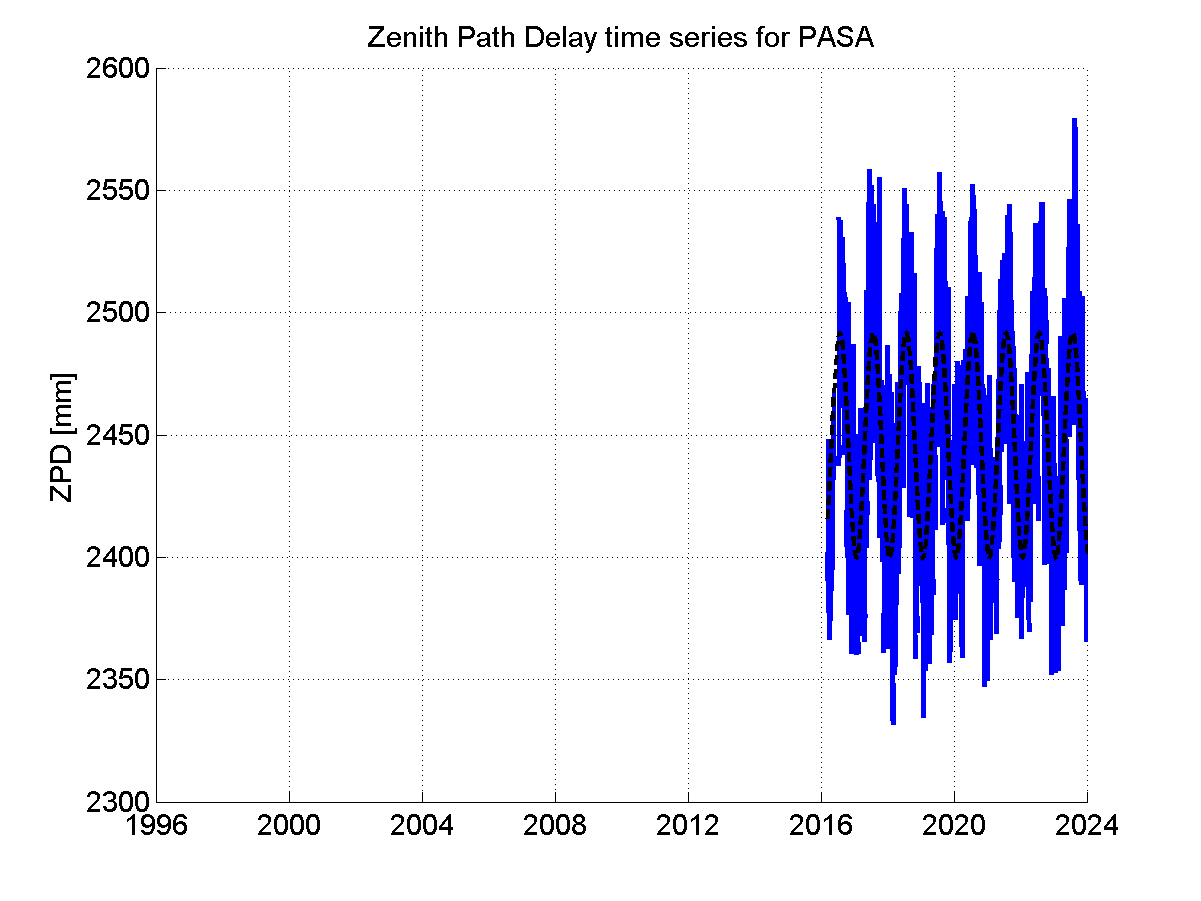

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

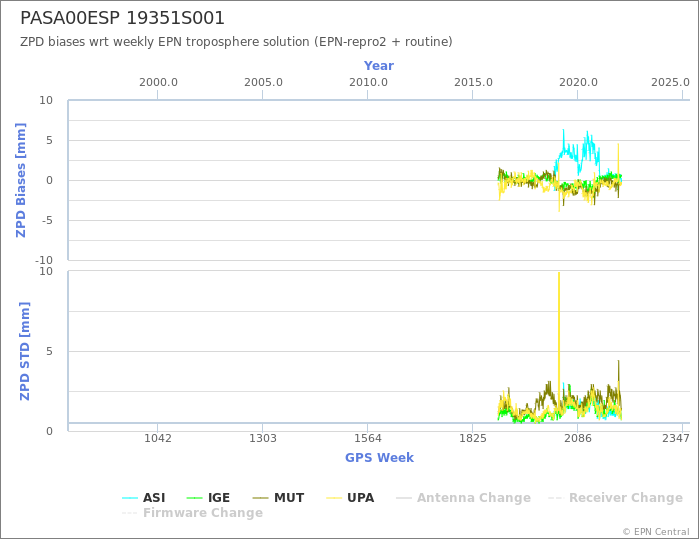

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
