EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	SGO (Lechner Nonprofit Kft.)
RESPONSIBLE FOR METADATA	SGO (Lechner Nonprofit Kft.)
CURRENT STATION CONFIGURATION	penc00hun_20220622.log
STATUS IN EPN	included since 03-03-1996
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-PENC00HUN
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GRX1200GGPRO (30-08-2021 to now)
SET TO TRACK	GPS+GLO
LAST ANTENNA	LEIAT504GG/LEIS (24-06-2014 to now)
INDIVIDUAL CALIBRATION(S)	LEIAT504GG/LEIS (SN: 200219) from 2007-07-12 to 2013-11-07, from 2013-11-07 to 2014-06-24, from 2014-06-24 to now : BERL - ROBOT (freq: G01, G02, date: 2007-05-18)
DATA ROUTINELY ANALYSED BY	BEV, COD, LPT, RGA, SGO, SUT, UPA
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 03-02-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

PENC00HUN0 :

ASI (broadcaster, registration) - RTCM 3.1 : GPS+GLO
2024/11/20 16:29 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (9.20.3316) wrt site log (9.20/3.822)
2024/11/20 16:29 RTCM 3.1/1006: Incorrect Antenna Height in stream (0.0299 m) wrt site log (0.0300 m)

BKG (broadcaster, registration) - RTCM 3.1 : GPS+GLO
2024/11/20 13:37 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (9.20.3316) wrt site log (9.20/3.822)
2024/11/20 13:37 RTCM 3.1/1006: Incorrect Antenna Height in stream (0.0299 m) wrt site log (0.0300 m)

ROB (broadcaster, registration) - RTCM 3.1 : GPS+GLO
2024/11/20 15:01 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (9.20.3316) wrt site log (9.20/3.822)
2024/11/20 15:01 RTCM 3.1/1006: Incorrect Antenna Height in stream (0.0299 m) wrt site log (0.0300 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

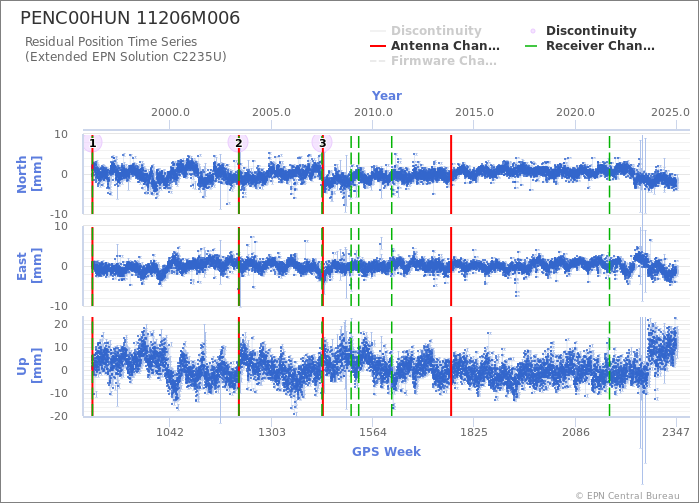

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station PENC00HUN
Last ETRF2000 position valid from 198/2007 to 316/2022 expressed at epoch 001/2010
X = 4052449.795 m	Vx = -0.0007 m/y
Y = 1417680.898 m	Vy = 0.0001 m/y
Z = 4701406.903 m	Vz = -0.0008 m/y
