EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	WUT (Warsaw University of Technology)
RESPONSIBLE FOR METADATA	WUT (Warsaw University of Technology)
CURRENT STATION CONFIGURATION	ppsh00nor_20231001.log
STATUS IN EPN	included since 27-02-2022
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-PPSH00NOR
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR25 (01-10-2023 to now)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	LEIAR20/LEIM (04-09-2020 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR20/LEIM (SN: 18327015) from 2020-09-04 to now : GEO - ROBOT (freq: G01, G02, G05, R01, R02, E06, E07, E08, C02, C06, date: 2020-07-14)
DATA ROUTINELY ANALYSED BY	BEV, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 29-06-2021.

No recent data available

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

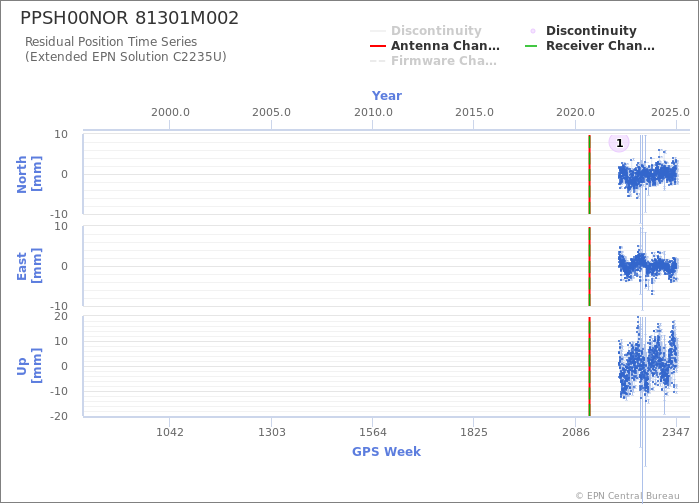

Position, Velocity & Time Series

EUREF is providing only positions for the station PPSH00NOR
Last ETRF2000 position valid from 058/2022 to 316/2022 expressed at epoch 174/2022
X = 1386495.218 m
Y = 385508.626 m
Z = 6192886.376 m
