Porto Santo, Portugal (PSTO00PRT)

RESPONSIBLE AGENCY DROTe (Direção Regional de Ordenamento do Território)
RESPONSIBLE FOR METADATA DROTe (Direção Regional de Ordenamento do Território)
CURRENT STATION CONFIGURATION psto00prt_20240524.log
STATUS IN EPN included since 06-11-2022
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 02-07-2024
LAST RECEIVER LEICA GRX1200+GNSS (22-05-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR20/LEIM (13-11-2019 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEK, BKG, IGE
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 26-01-2022.

RINEX V2.11
Daily
(data calendar)

No recent data available

RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 178/2024 75%
BEV 184/2024 96.43%
BKGE 184/2024 96.43%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 185/2024 (M) 60.71% 60.71%
BKGE 185/2024 (M) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
Monthly snapshots of satellite tracking
Position time series

Position time series

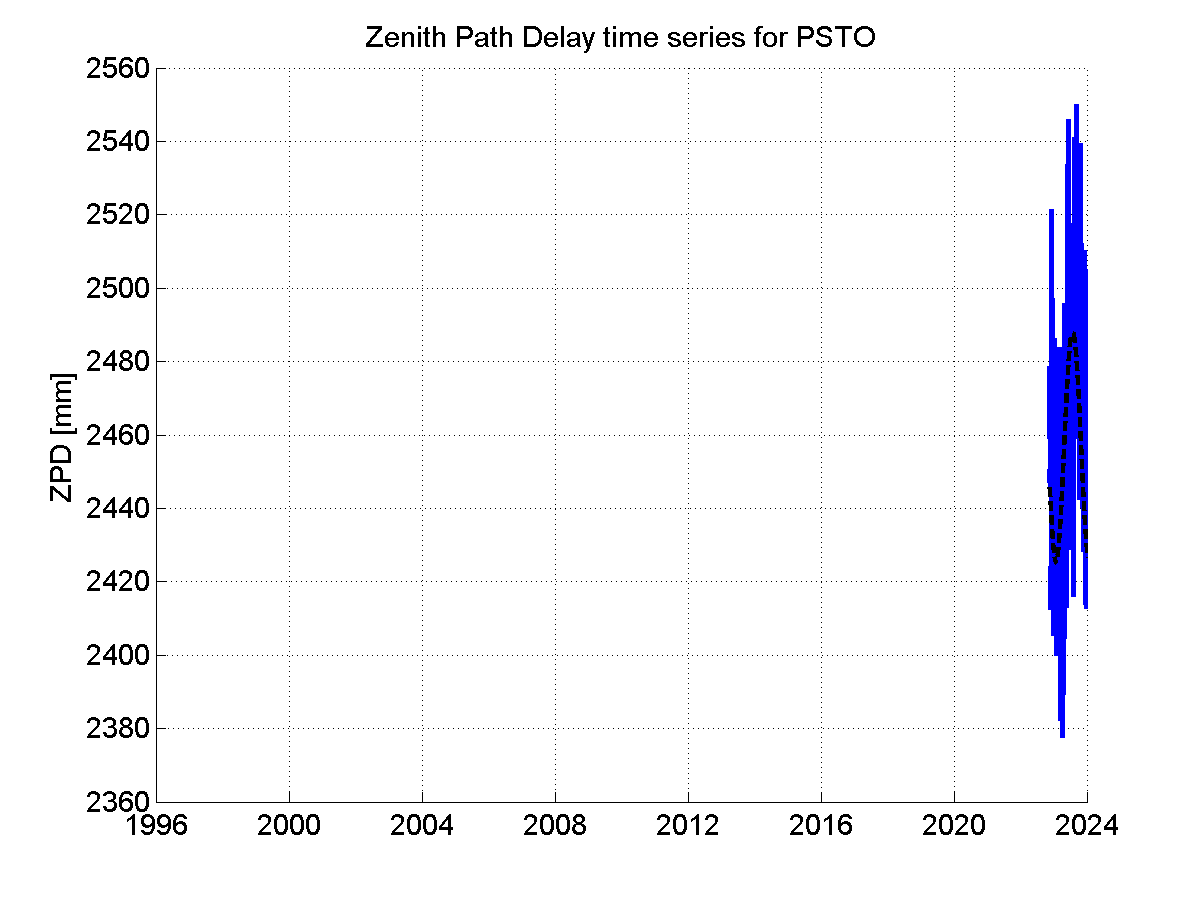

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

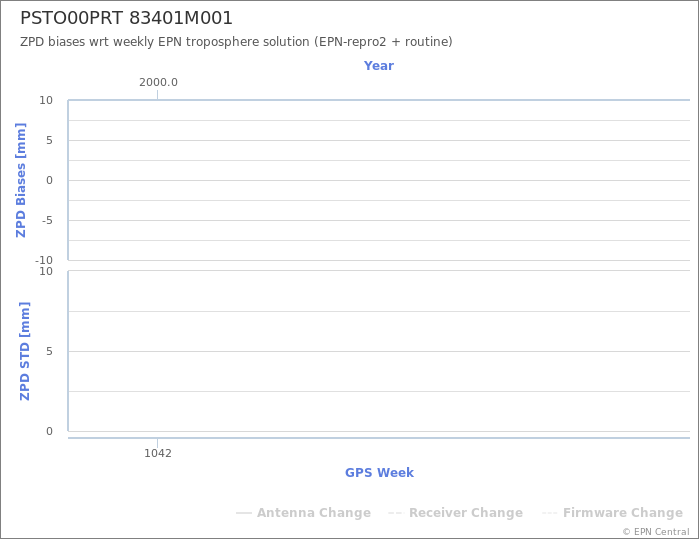

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
