EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	SMA (Surveying and Mapping Authority of the Republic of Slovenia)
RESPONSIBLE FOR METADATA	GIS (Geodetic Institute of Slovenia)
CURRENT STATION CONFIGURATION	pza200svn_20220620.log
STATUS IN EPN	included since 23-01-2022
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR30 (16-06-2022 to now)
SET TO TRACK	GPS+GLO+GAL+SBAS
LAST ANTENNA	LEIAR20/LEIM (05-06-2015 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR20/LEIM (SN: 16315008) from 2015-06-05 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2014-01-10)
DATA ROUTINELY ANALYSED BY	BEV, BKG, RGA, SGO, UPA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 30-07-2021.

No recent data available

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing only positions for the station PZA200SVN
Last ETRF2000 position valid from 023/2022 to 316/2022 expressed at epoch 174/2022
X = 4313418.262 m
Y = 1176835.050 m
Z = 4533685.733 m

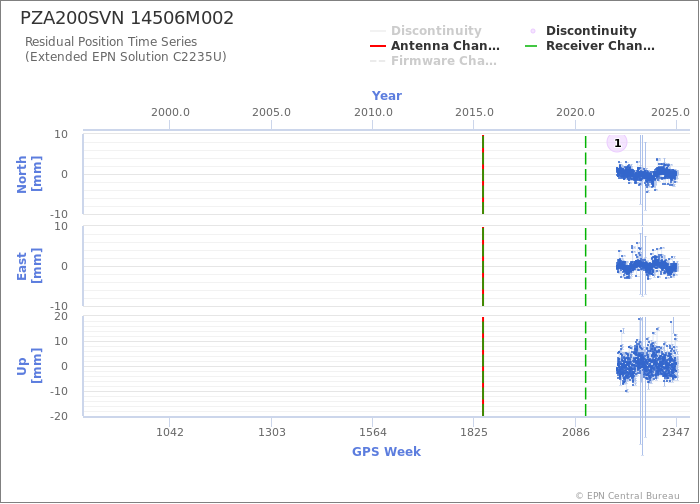

Position time series

Tropospheric Delays

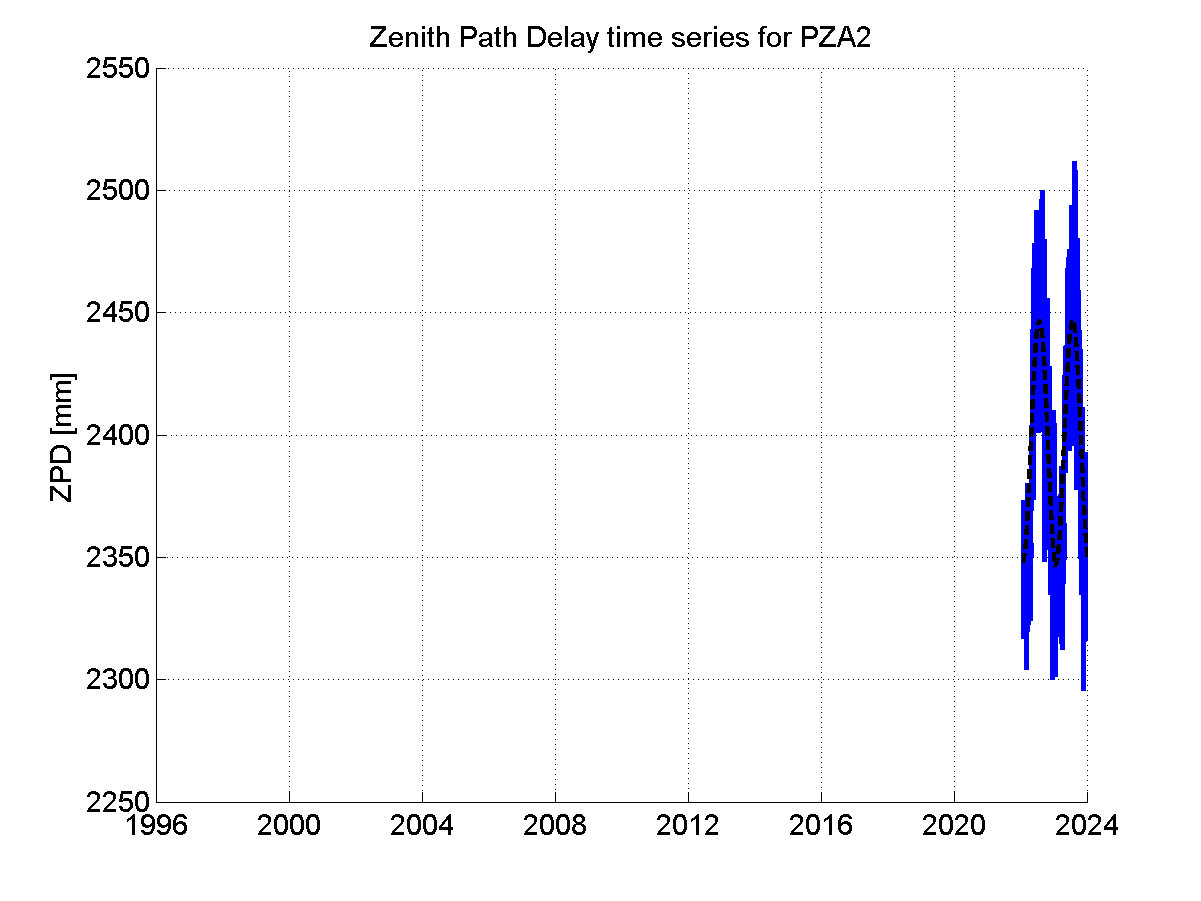

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

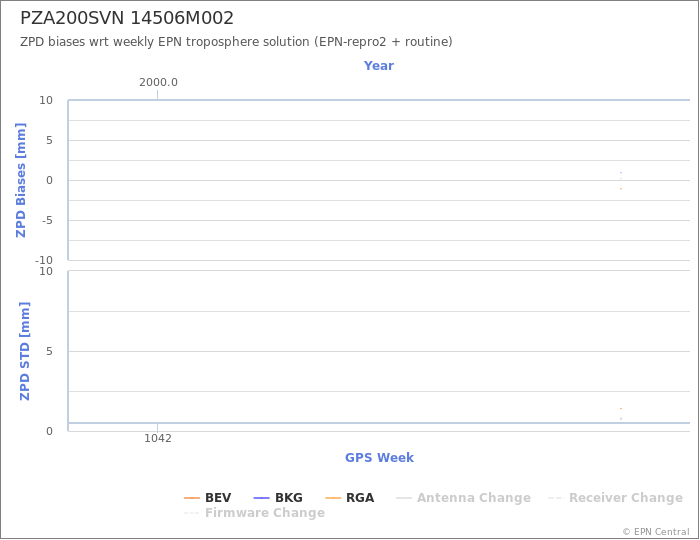

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

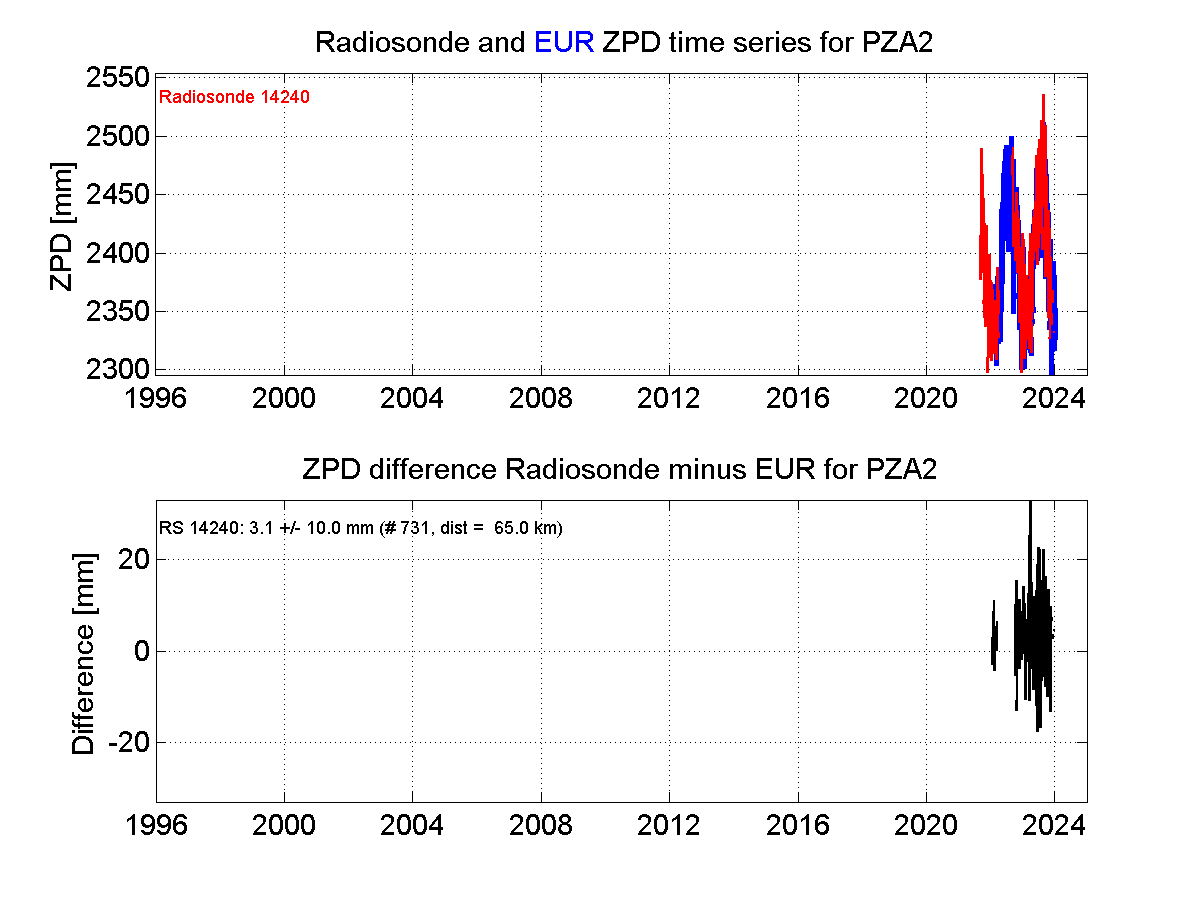

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Prilozje, Slovenia (PZA200SVN)
