EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ESOC (European Space Agency)
RESPONSIBLE FOR METADATA	ESOC (European Space Agency)
CURRENT STATION CONFIGURATION	redu00bel_20230119.log
STATUS IN EPN	included since 22-06-2003
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	SEPT POLARX5TR (19-01-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
LAST ANTENNA	SEPCHOKE_B3E6/NONE (29-10-2019 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	LPT, MUT, ROB, UPA
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 06-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station REDU00BEL
Last ETRF2000 position valid from 303/2019 to 316/2022 expressed at epoch 001/2010
X = 4091423.615 m	Vx = 0.0001 m/y
Y = 368380.355 m	Vy = -0.0004 m/y
Z = 4863179.577 m	Vz = -0.0003 m/y

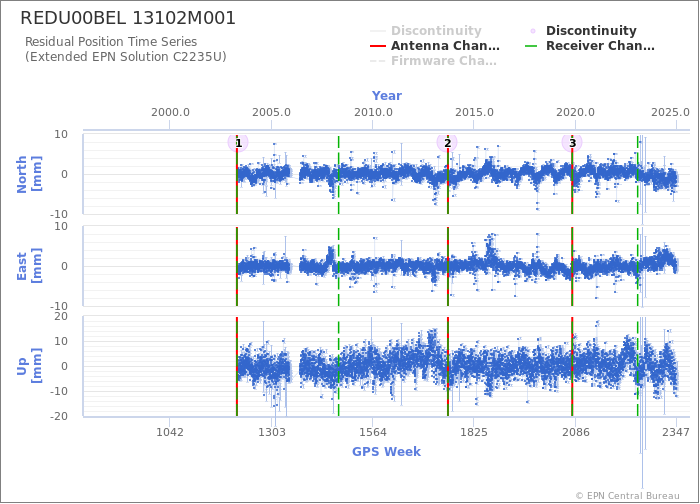

Position time series

Tropospheric Delays

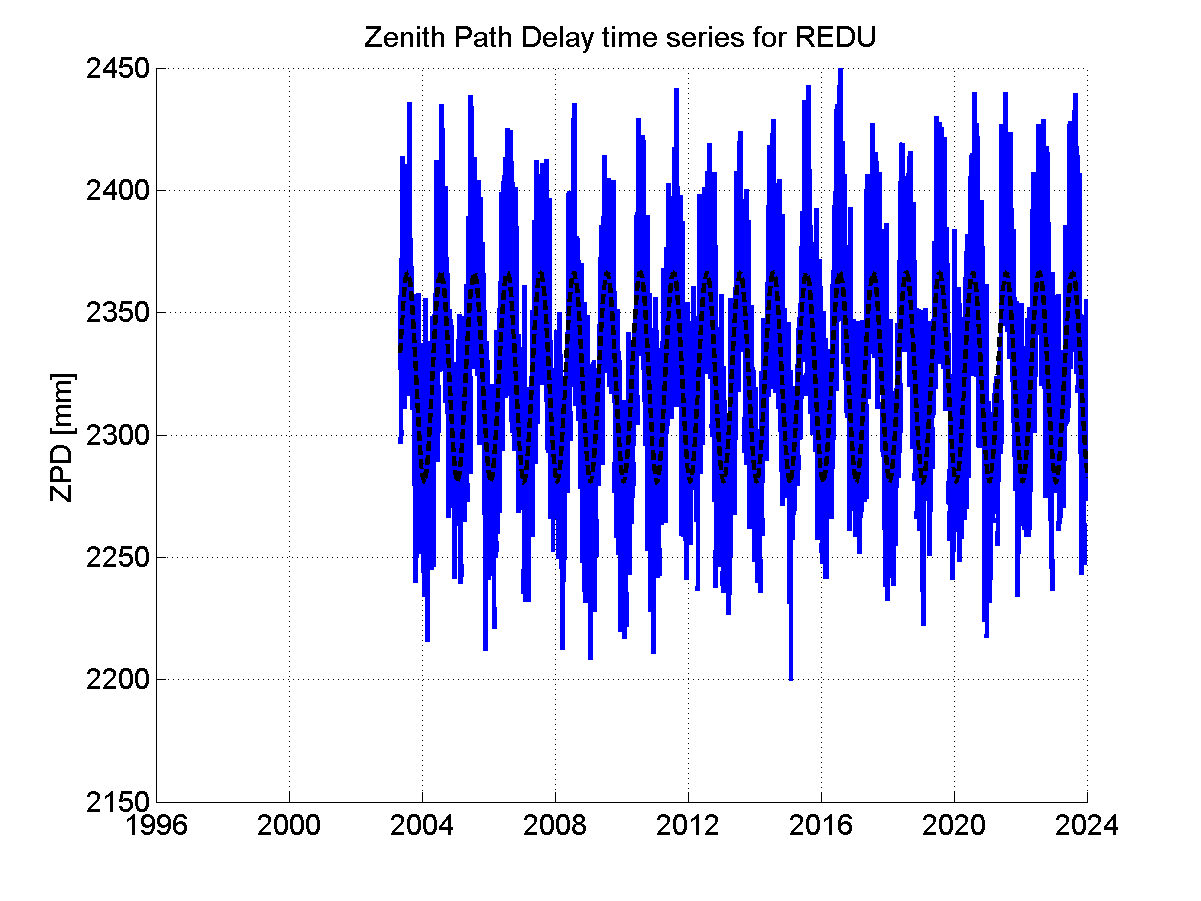

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

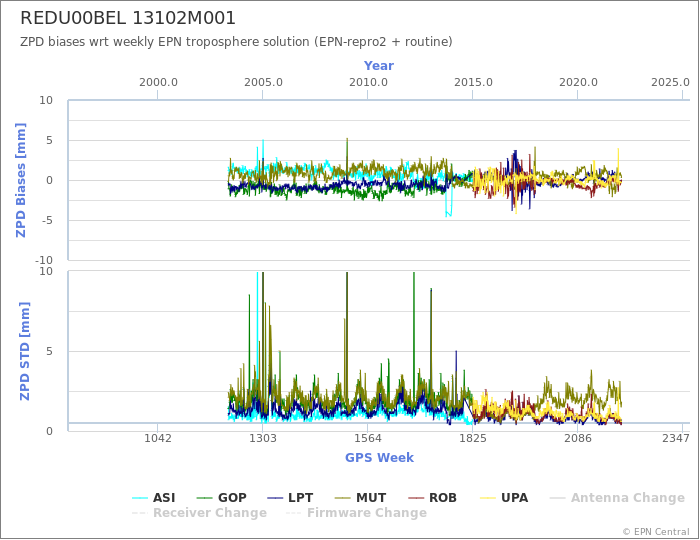

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

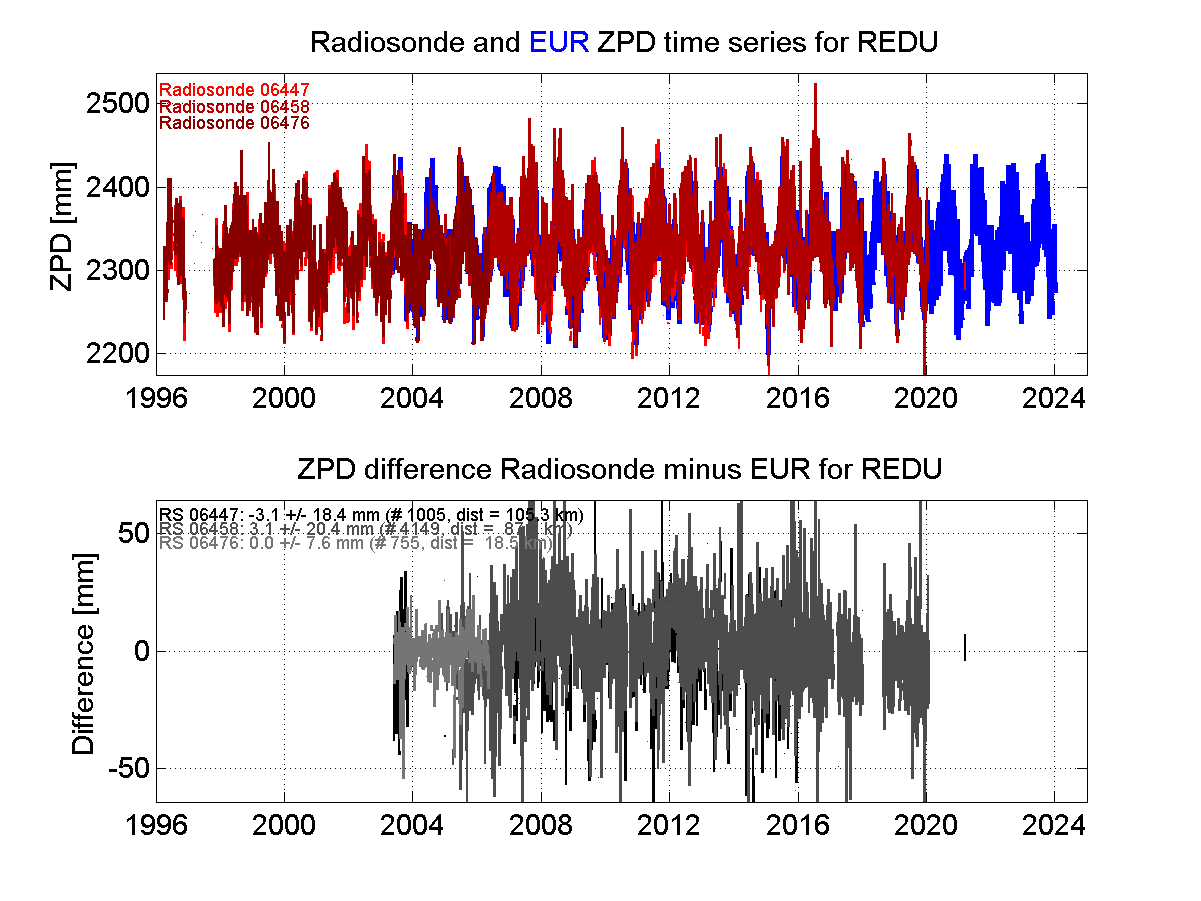

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Redu, Belgium (REDU00BEL)
