EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	GUGiK (Head Office of Geodesy and Cartography)
RESPONSIBLE FOR METADATA	ASGEUPOS (ASG-EUPOS Management Center Head Office of Geodesy and Cartography)
CURRENT STATION CONFIGURATION	redz00pol_20240227.log
STATUS IN EPN	included since 08-06-2008
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	TRIMBLE ALLOY (21-02-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM59900.00/SCIS (07-11-2016 to now)
INDIVIDUAL CALIBRATION(S)	TRM55971.00/TZGD (SN: 30436524) from 2007-12-07 to 2014-10-29 : BERL - ROBOT (freq: G01, G02, R01, R02, date: 2007-10-26) TRM59900.00/SCIS (SN: 5319361156) from 2014-10-29 to 2016-07-04, from 2016-11-07 to now : BERL - ROBOT (freq: G01, G02, R01, R02, date: 2014-09-18)
DATA ROUTINELY ANALYSED BY	BEV, LPT, NKG, SUT, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 13-12-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

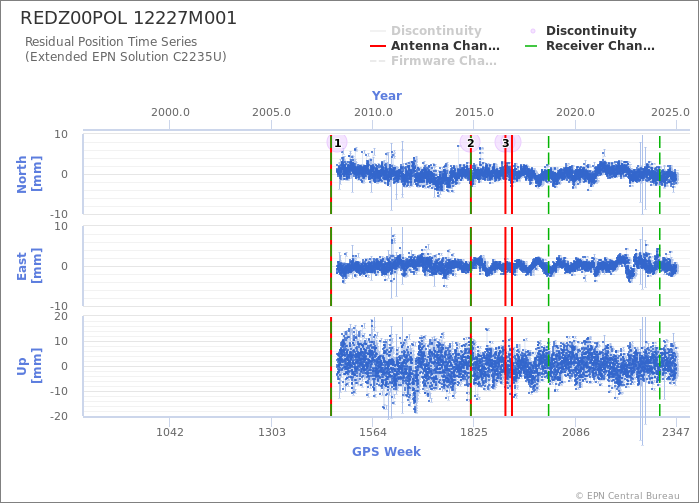

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station REDZ00POL
Last ETRF2000 position valid from 318/2016 to 316/2022 expressed at epoch 001/2010
X = 3550066.931 m	Vx = -0.0002 m/y
Y = 1093331.795 m	Vy = -0.0004 m/y
Z = 5167561.959 m	Vz = -0.0004 m/y
