EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA	IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION	rio100esp_20230726.log
STATUS IN EPN	included since 12-08-2012
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-RIO100ESP
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR25 (25-07-2023 to now)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	LEIAR25.R4/LEIT (31-01-2012 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 725138) from 2012-01-31 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2011-08-05)
DATA ROUTINELY ANALYSED BY	ASI, BEK, IGE, IGN
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RIO100ESP0 :

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2024/11/20 14:04 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/6.525)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2024/11/20 15:30 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.70.040) wrt site log (4.70/6.525)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

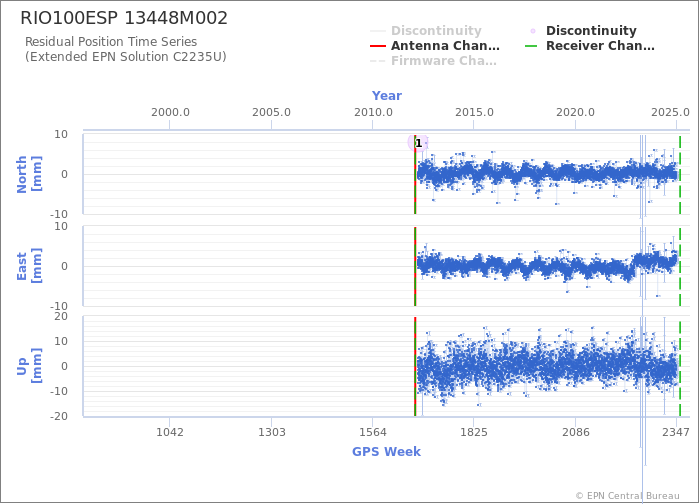

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station RIO100ESP
Last ETRF2000 position valid from 086/2012 to 316/2022 expressed at epoch 001/2010
X = 4708447.183 m	Vx = -0.0004 m/y
Y = -199490.829 m	Vy = -0.0006 m/y
Z = 4284089.322 m	Vz = -0.0008 m/y
