Logrono, Spain (RIOJ00ESP)

RESPONSIBLE AGENCY IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION rioj00esp_20220907.log
STATUS IN EPN former since 08-04-2012
LAST AVAILABLE DATA 07-04-2012 (decommissioned station)
LAST RECEIVER TRIMBLE NETRS (21-07-2010 to 08-04-2012)
SET TO TRACK GPS
LAST ANTENNA TRM29659.00/NONE (17-01-2007 to 08-04-2012)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 098/2012
BKGE 098/2012
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station RIOJ00ESP
Last ETRF2000 position valid from 027/2009 to 098/2012
expressed at epoch 001/2010
X = 4708688.608 m Vx = -0.0010 m/y
Y = -205761.723 m Vy = -0.0004 m/y
Z = 4283609.349 m Vz = -0.0047 m/y

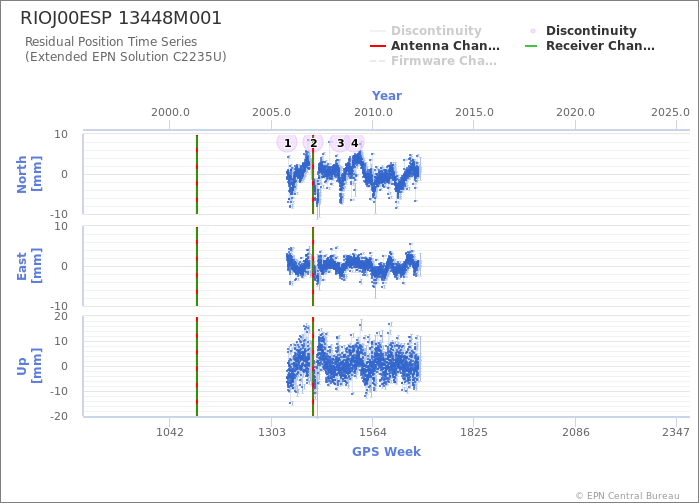

Position time series

Position time series

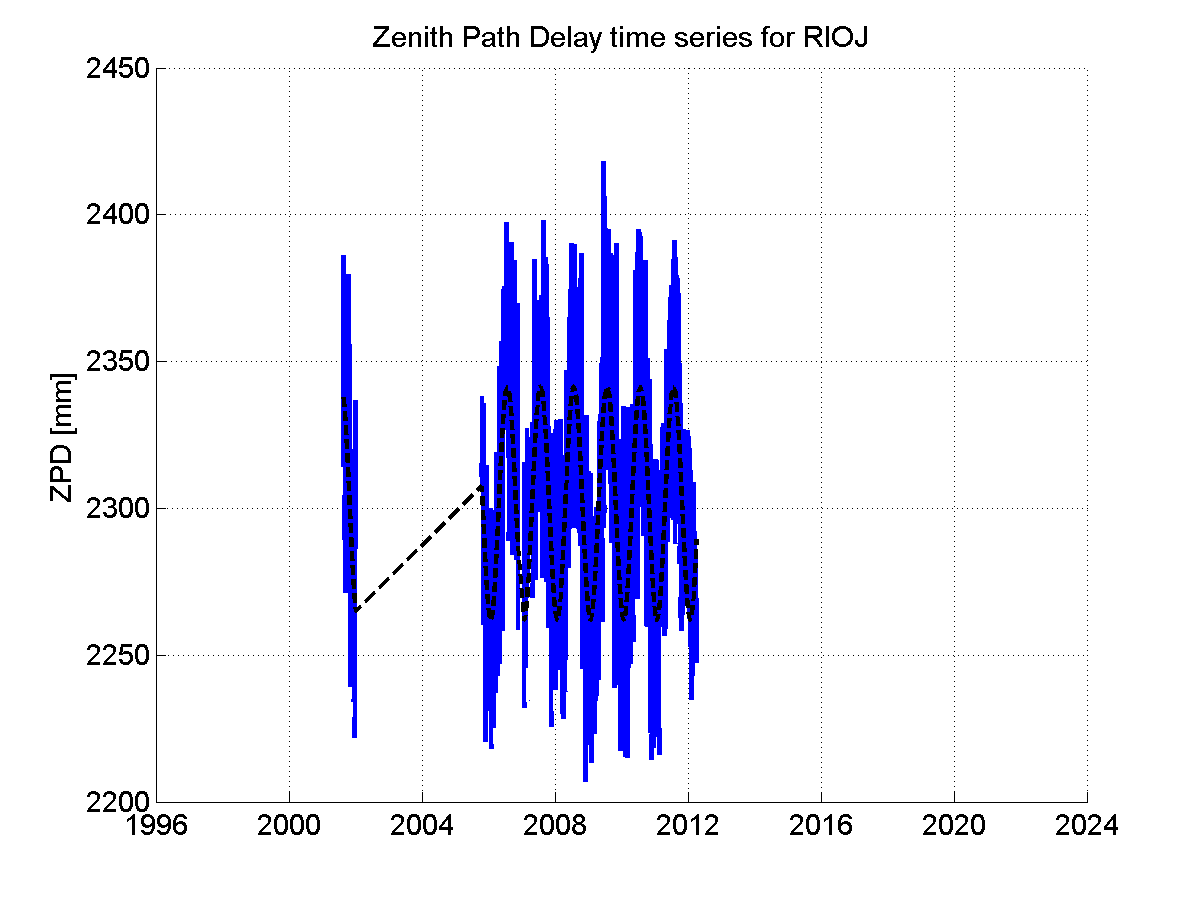

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

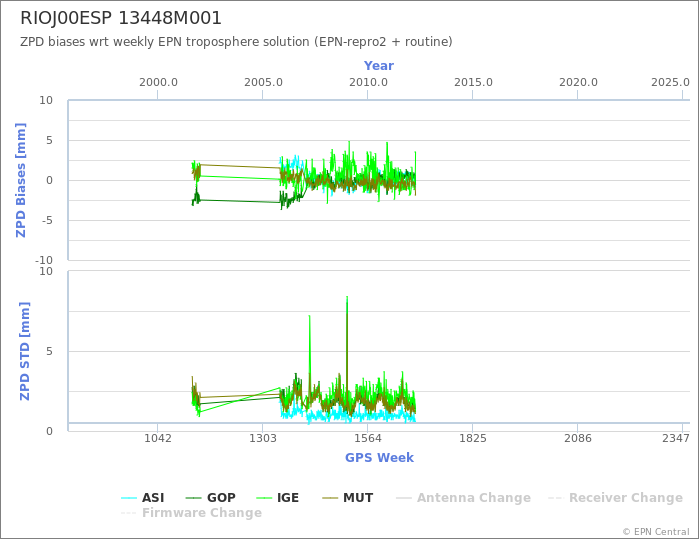

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
