EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ITCG (Istituto Tecnico Commerciale e per Geometri "F.lli Felice e Gregorio Fontana")
RESPONSIBLE FOR METADATA	ITCG (Istituto Tecnico Commerciale e per Geometri "F.lli Felice e Gregorio Fontana")
CURRENT STATION CONFIGURATION	rove00ita_20200709.log
STATUS IN EPN	included since 09-04-2006
LAST AVAILABLE DATA	04-10-2023 (dormant station)
LAST RECEIVER	LEICA GRX1200+GNSS (08-04-2020 to now)
SET TO TRACK	GPS+GLO
LAST ANTENNA	LEIAT504GG/LEIS (28-10-2009 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEK, BEV, IGE, UPA

Data Provided

Data centres	Online	Last data	Availability	Latency
BEV		278/2023 (H)	0%	0%

Data centres	Online	Last data	Availability	Latency
BKGE		278/2023 (H)	0%	0%

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

ROVE00ITA0 :

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station ROVE00ITA
Last ETRF2000 position valid from 020/2010 to 316/2022 expressed at epoch 001/2010
X = 4364680.861 m	Vx = -0.0005 m/y
Y = 851736.594 m	Vy = -0.0004 m/y
Z = 4557204.710 m	Vz = 0.0006 m/y

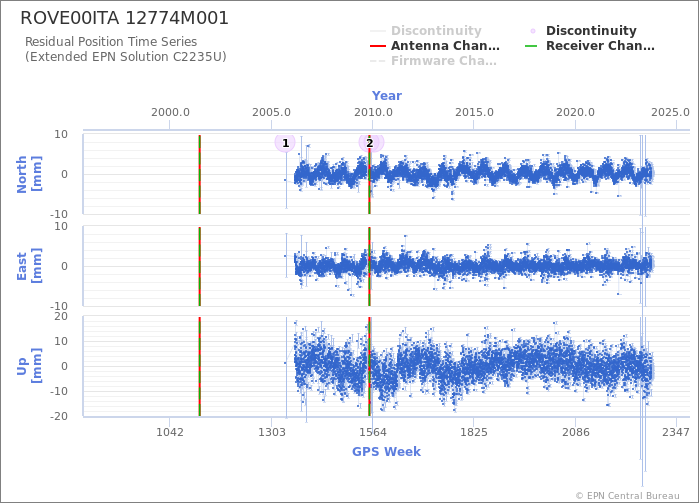

Position time series

Tropospheric Delays

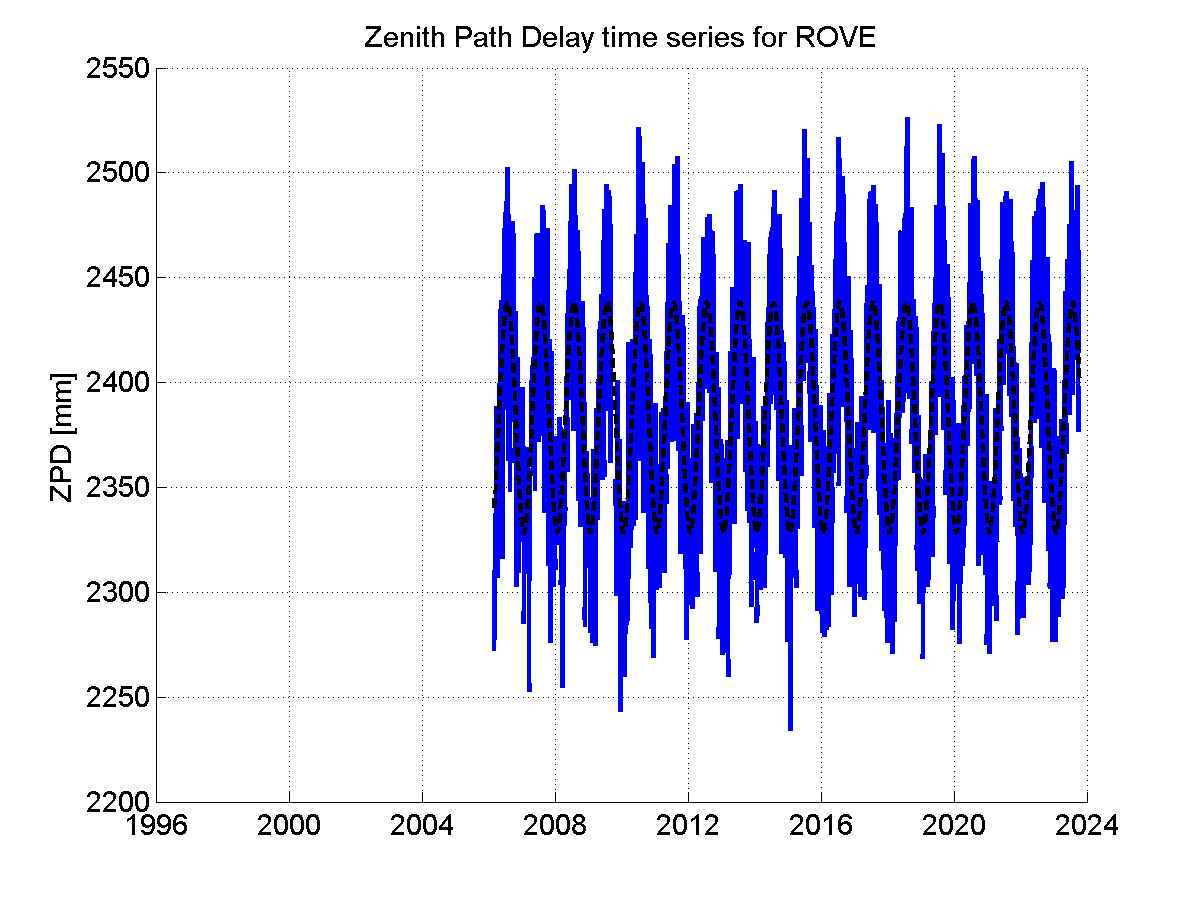

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

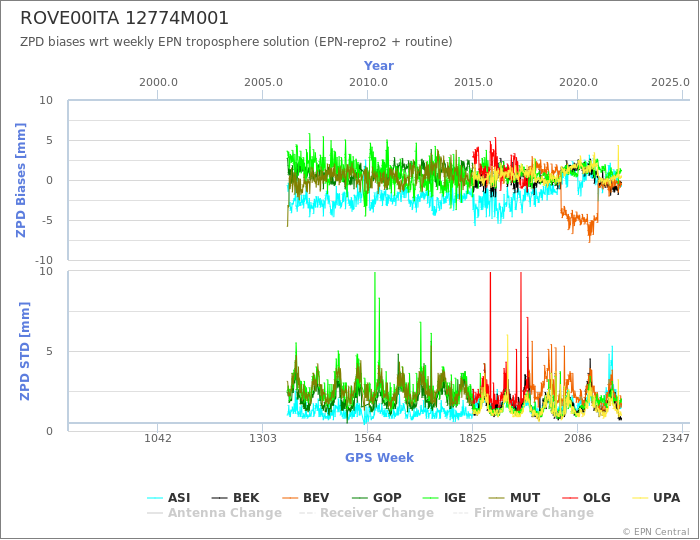

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Rovereto, Italy (ROVE00ITA)
