EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	OS (Ordnance Survey)
RESPONSIBLE FOR METADATA	OS (Ordnance Survey)
CURRENT STATION CONFIGURATION	scil00gbr_20230406.log
STATUS IN EPN	included since 12-02-2017
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-SCIL00GBR
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	SEPT POLARX5 (02-09-2022 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR10/NONE (13-08-2019 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	GFZ, IGE, ROB, SUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 18-02-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station SCIL00GBR
Last ETRF2000 position valid from 226/2019 to 316/2022 expressed at epoch 001/2010
X = 4090376.289 m	Vx = -0.0004 m/y
Y = -451278.111 m	Vy = 0.0003 m/y
Z = 4856739.790 m	Vz = -0.0006 m/y

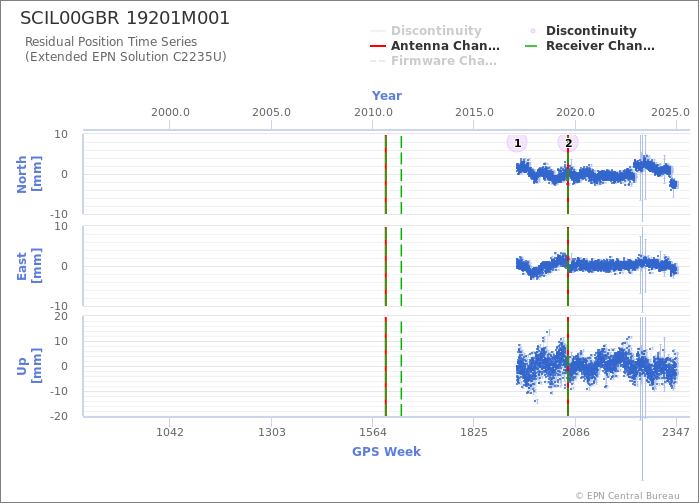

Position time series

Tropospheric Delays

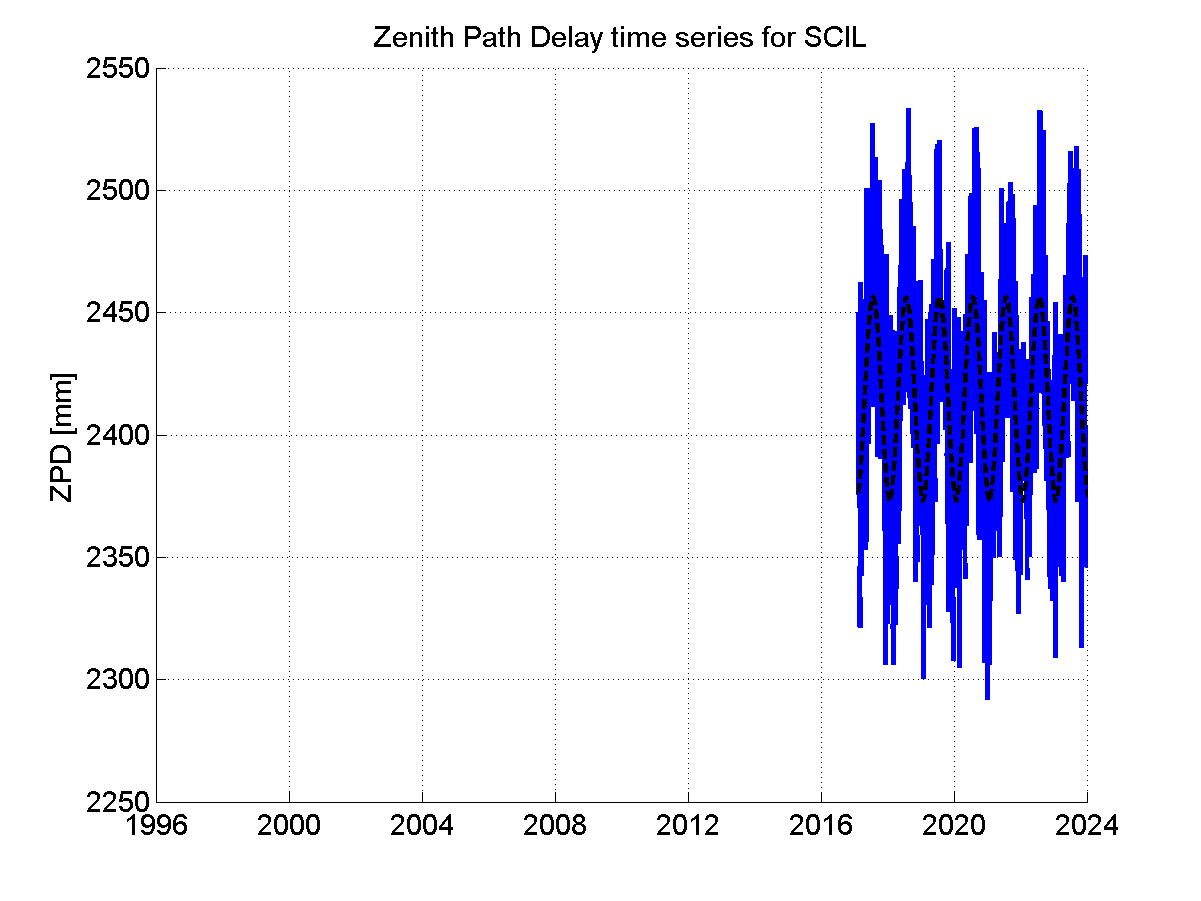

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

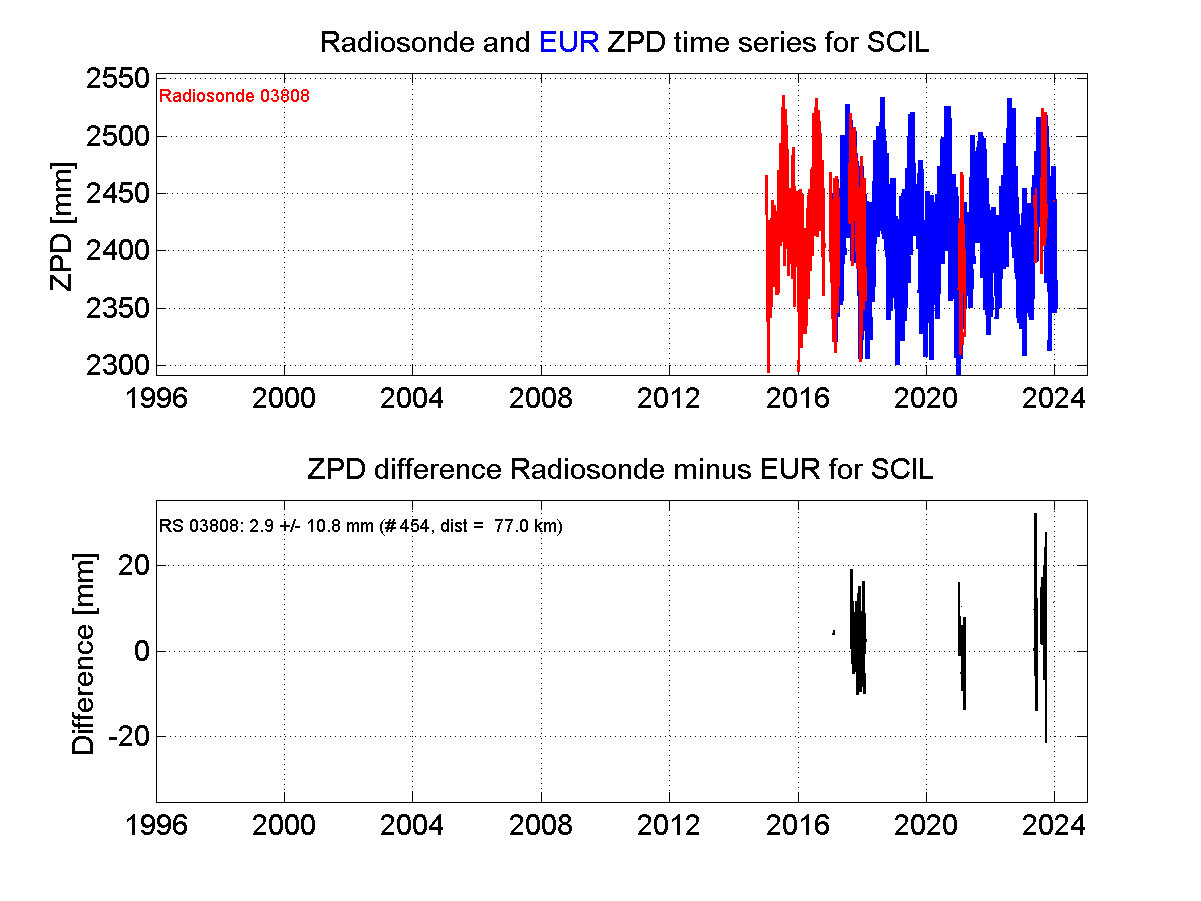

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Hugh Town, United Kingdom Of Great Britain And Northern Ireland (the) (SCIL00GBR)
