Ciboure, France (SCOA00FRA)

RESPONSIBLE AGENCY IGN_RGP (Institut National de l'Information Géographique et Forestière)
RESPONSIBLE FOR METADATA IGN_RGP (Institut National de l'Information Géographique et Forestière)
CURRENT STATION CONFIGURATION scoa00fra_20240716.log
STATUS IN EPN included since 28-03-2010
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER LEICA GR50 (16-07-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA TRM55971.00/NONE (08-09-2009 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BKG, IGE, IGN, ROB
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 28-03-2022.

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 086/2022 N/A
BEV 086/2022 N/A
BKGE 083/2022 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 325/2024 100%
BKGE 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 99.4%
BKGE 326/2024 (H) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

SCOA00FRA0 :

  • ASI (broadcaster, registration) - RTCM 3.1 : GPS+GLO

    2024/11/20 17:11 RTCM 3.1 : Unexpected constellations in stream (GPS+GLO) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 17:11 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80)

  • BKG (broadcaster, registration) - RTCM 3.1 : GPS+GLO

    2024/11/20 14:27 RTCM 3.1 : Unexpected constellations in stream (GPS+GLO) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 14:27 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80)

  • ROB (broadcaster, registration) - RTCM 3.1 : GPS+GLO

    2024/11/20 15:54 RTCM 3.1 : Unexpected constellations in stream (GPS+GLO) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 15:54 RTCM 3.1/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station SCOA00FRA
Last ETRF2000 position valid from 252/2009 to 316/2022
expressed at epoch 001/2010
X = 4639940.879 m Vx = -0.0014 m/y
Y = -136225.480 m Vy = -0.0004 m/y
Z = 4359552.012 m Vz = -0.0013 m/y

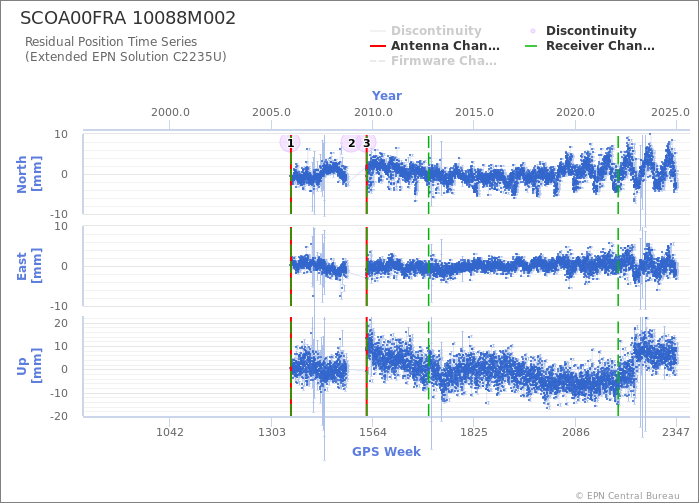

Position time series

Position time series

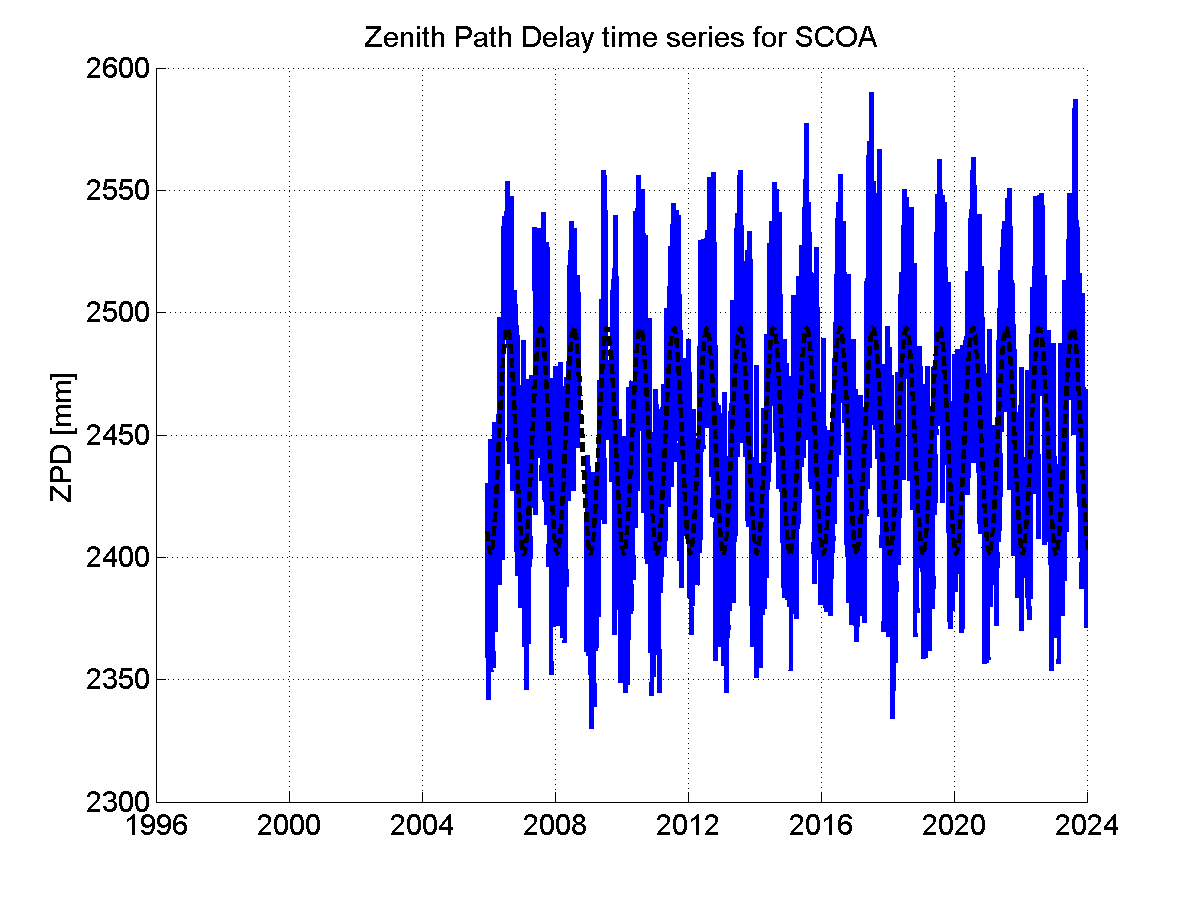

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

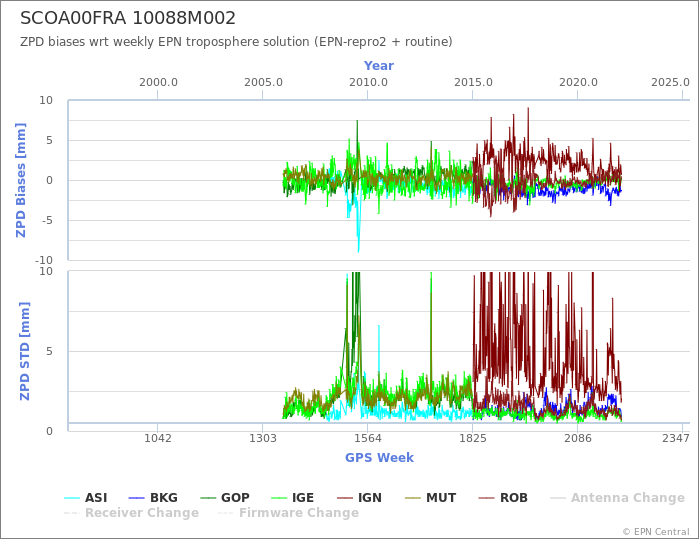

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
