Shoeburyness, United Kingdom Of Great Britain And Northern Ireland (the) (SHOE00GBR)

The RINEX 2 data are no more submitted to the EPN data centres since 2021-02-18.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 049/2021 N/A
BEV 049/2021 N/A
BKGE 049/2021 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+QZSS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 099/2021 35.71%
BEV 105/2021 57.14%
BKGE 105/2021 57.14%
Hourly
Data centres Online Last data Availability Latency
BEV 049/2021 (J) N/A 0%
BKGE 049/2021 (J) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 106/2021 (F) 85.12% 85.12%
BKGE 106/2021 (F) 83.93% 83.93%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Real-time

SHOE00GBR0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2021/04/15 23:27 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS)

    2021/04/15 23:27 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (Nav 6.08 / Boot 5.48) wrt site log (6.08)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2021/04/15 21:14 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS)

    2021/04/15 21:14 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (Nav 6.08 / Boot 5.48) wrt site log (6.08)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2021/04/16 02:24 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS)

    2021/04/16 02:24 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (Nav 6.08 / Boot 5.48) wrt site log (6.08)

information above extracted from monitor files - ftp://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF has classified SHOE00GBR as a class A station
Last ETRF2000 position valid from 078/2017 to 312/2020
expressed at epoch 001/2010
X = 3973492.989 m Vx = -0.0010 m/y
Y = 57357.885 m Vy = -0.0003 m/y
Z = 4972192.924 m Vz = -0.0011 m/y

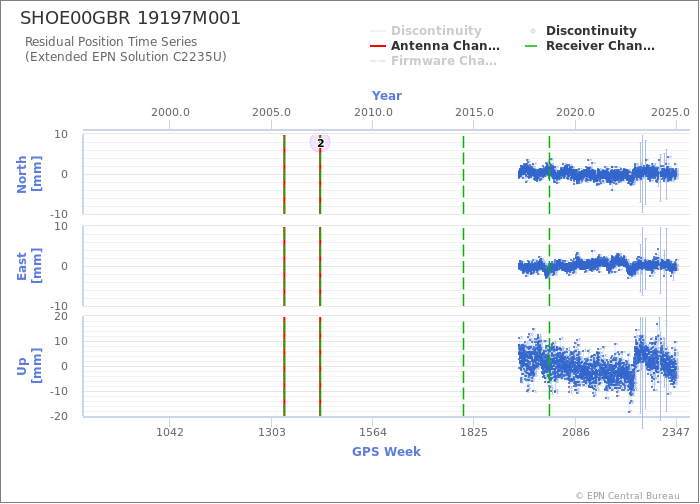

Position time series

Position time series

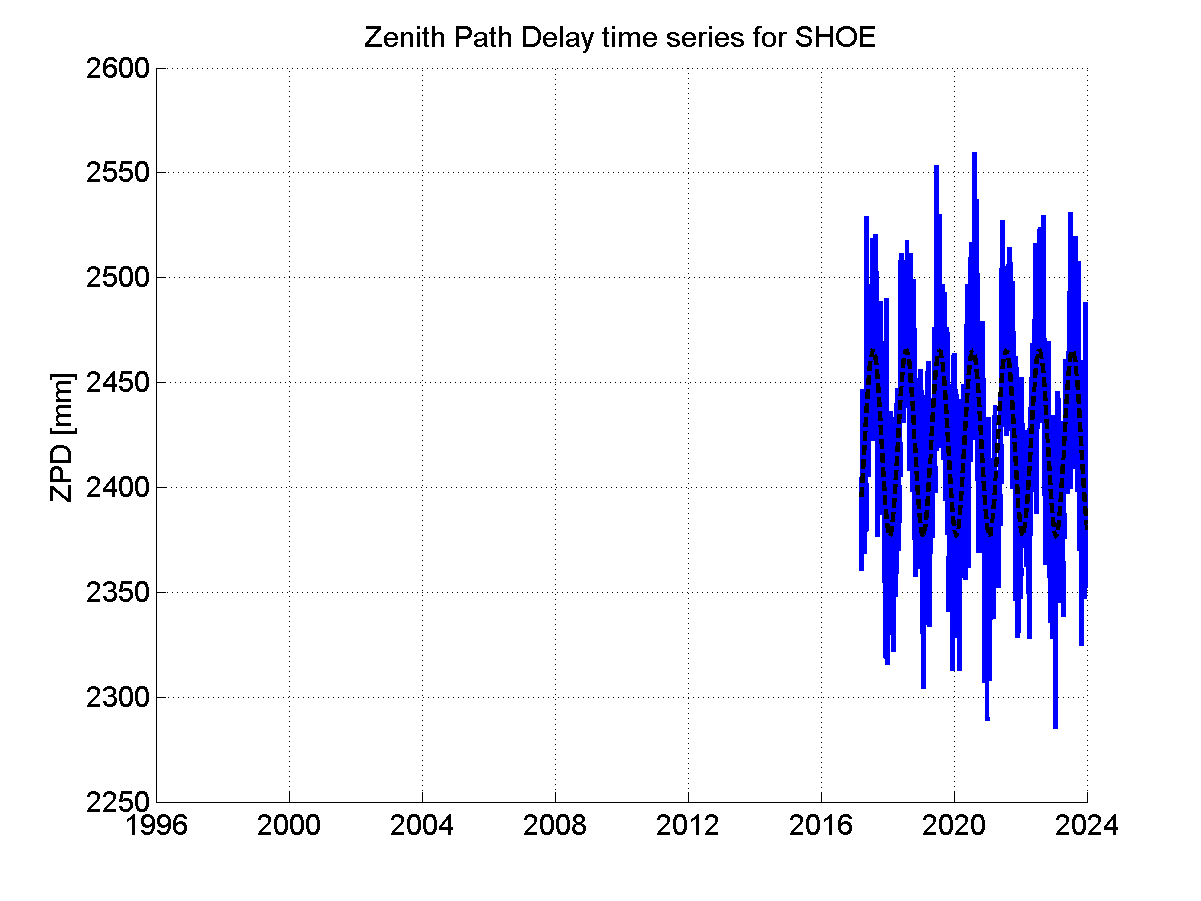

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

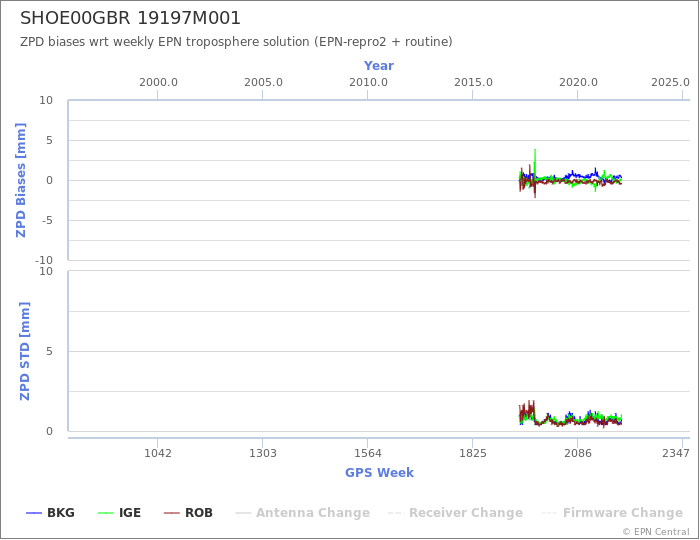

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

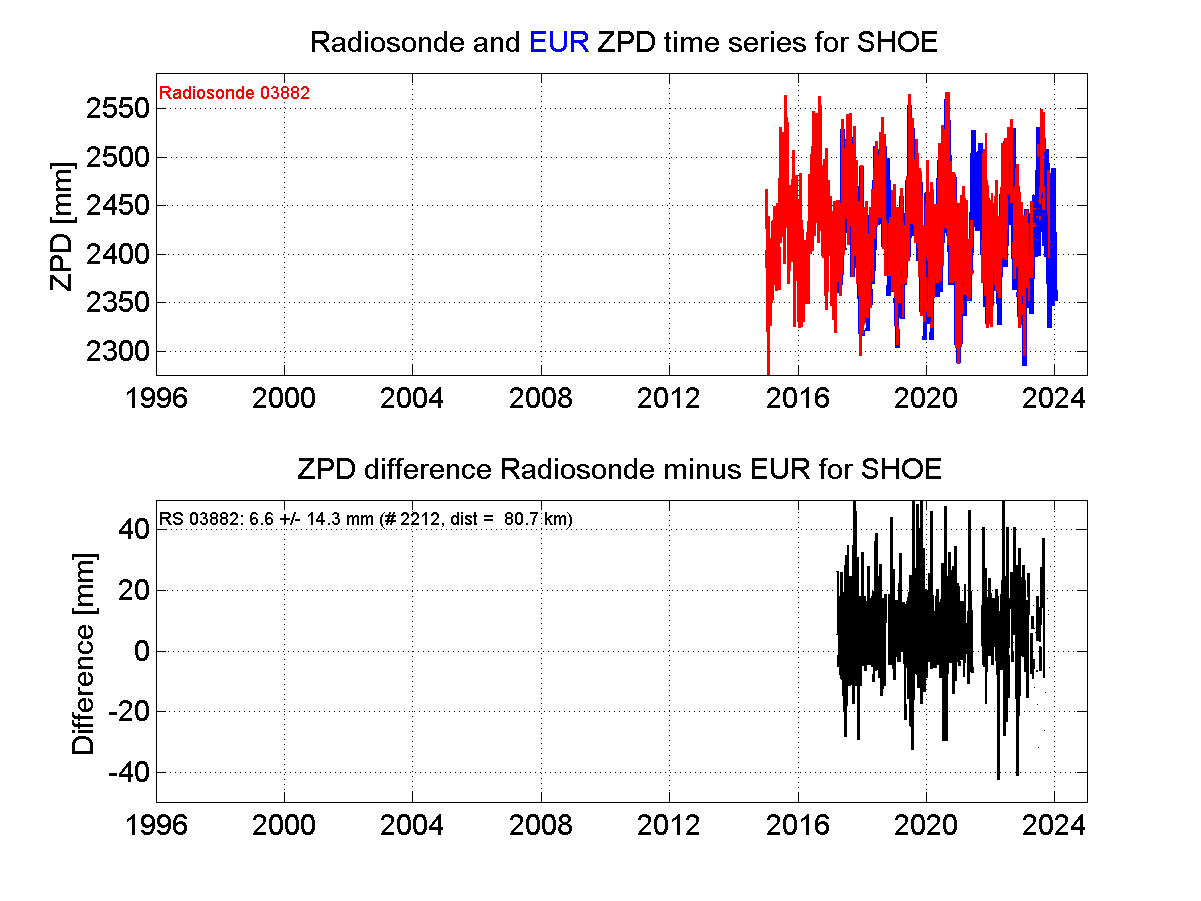

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
