BARI, Italy (SNIK00ITA)

RESPONSIBLE AGENCY AGLab (Polytechnic University of Bari, Applied Geomatics Laboratory, Department of Civil, Environmental, Land, Construction and Chemistry)
RESPONSIBLE FOR METADATA AGLab (Polytechnic University of Bari, Applied Geomatics Laboratory, Department of Civil, Environmental, Land, Construction and Chemistry)
CURRENT STATION CONFIGURATION snik00ita_20240318.log
STATUS IN EPN included since 22-01-2023
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 19-11-2024
LAST RECEIVER STONEX SC2200 (05-03-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA STXSA1500/STXG (24-09-2021 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEK, RGA, UPA
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 30-09-2022.

RINEX V2.11
Daily
(data calendar)

No recent data available

RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 324/2024 96.43%
BKGE 324/2024 96.43%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 325/2024 (M) 71.43% 70.83%
BKGE 325/2024 (M) 89.29% 88.69%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
Monthly snapshots of satellite tracking

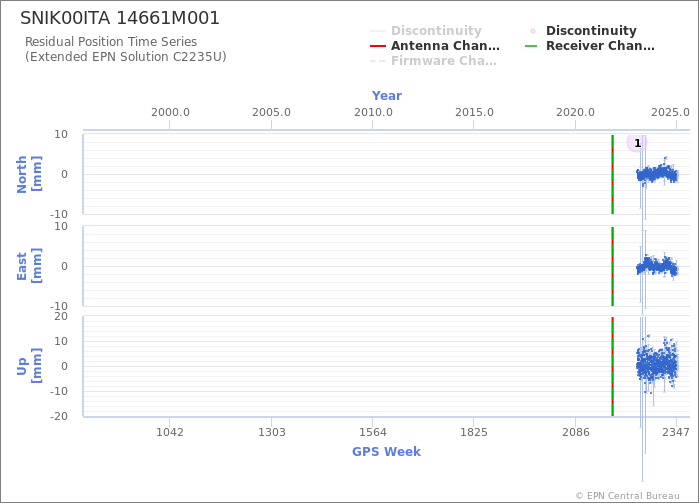

Position time series

Position time series

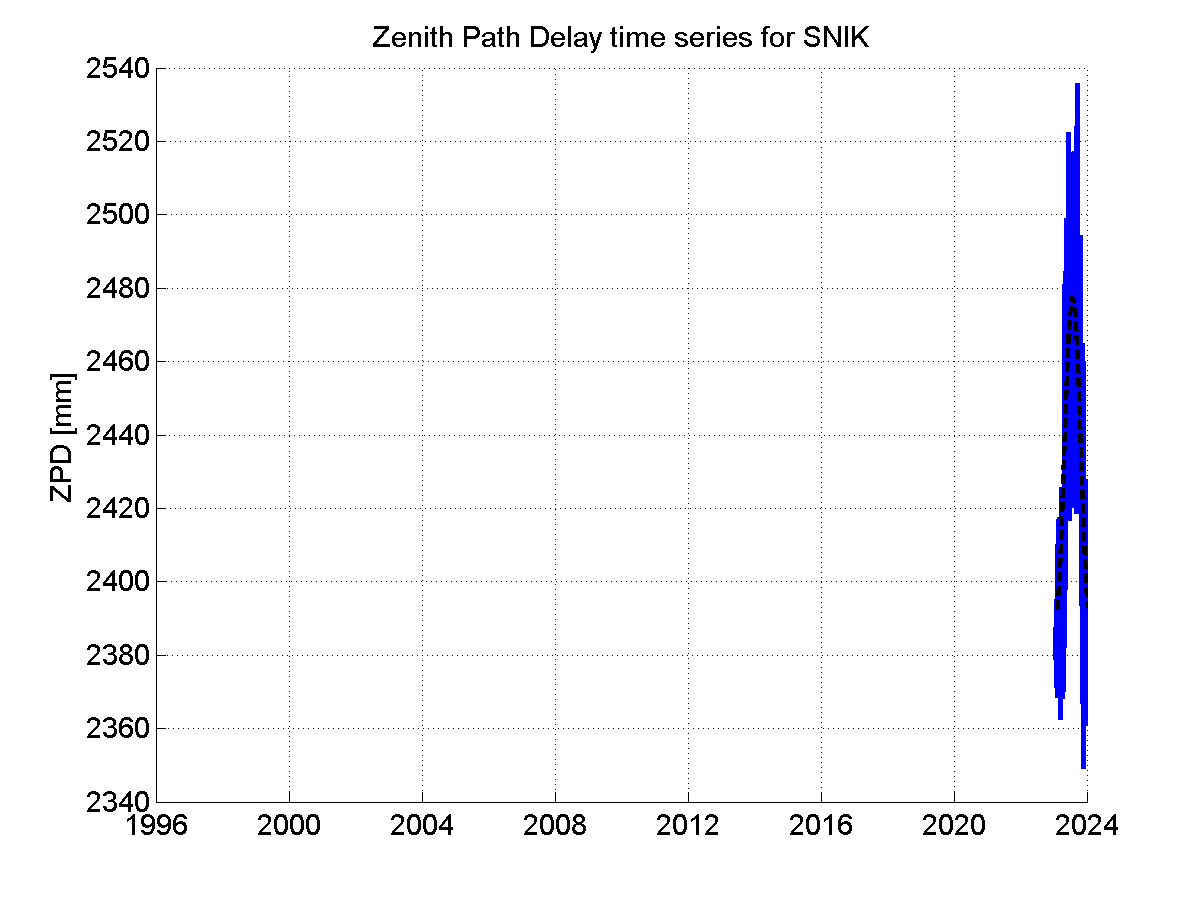

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

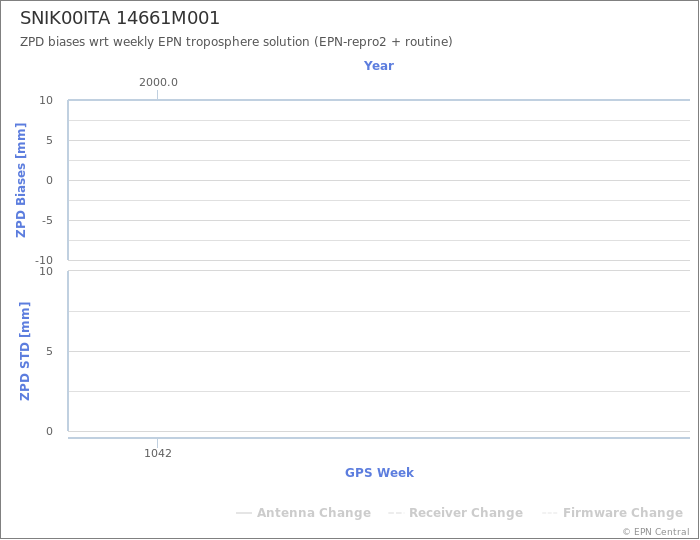

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
