Lviv, Ukraine (SULP00UKR)

RESPONSIBLE AGENCY NULP (National University "Lviv Polytechnic")
RESPONSIBLE FOR METADATA NULP (National University "Lviv Polytechnic")
CURRENT STATION CONFIGURATION sulp00ukr_20201220.log
STATUS IN EPN included since 21-10-2001
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER TRIMBLE NETR9 (18-12-2020 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA TPSCR.G5/TPSH (30-03-2013 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEV, SGO, SUT, WUT
INCLUSION IN OTHER NETWORK(S) IGS

The RINEX 2 data are no more submitted to the EPN data centres since 11-02-2021.

RINEX V2.11 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 042/2021 N/A
BEV 042/2021 N/A
BKGI 042/2021 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 318/2024 39.29%
BEV 325/2024 60.71%
BKGI 325/2024 60.71%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 94.05% 94.05%
BKGI 326/2024 (H) 98.81% 98.81%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

SULP00UKR0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 17:46 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 17:46 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2024/11/20 17:46 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.45,06/MAR/2020) wrt site log (5.45)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 15:03 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 15:03 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.45,06/MAR/2020) wrt site log (5.45)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 16:30 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 16:30 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2024/11/20 16:30 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.45,06/MAR/2020) wrt site log (5.45)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station SULP00UKR
Last ETRF2000 position valid from 104/2013 to 316/2022
expressed at epoch 001/2010
X = 3765297.338 m Vx = -0.0002 m/y
Y = 1677558.990 m Vy = -0.0008 m/y
Z = 4851297.212 m Vz = -0.0007 m/y

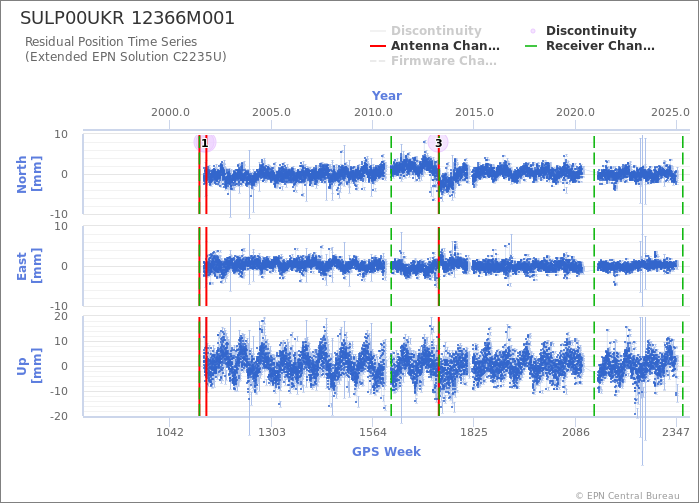

Position time series

Position time series

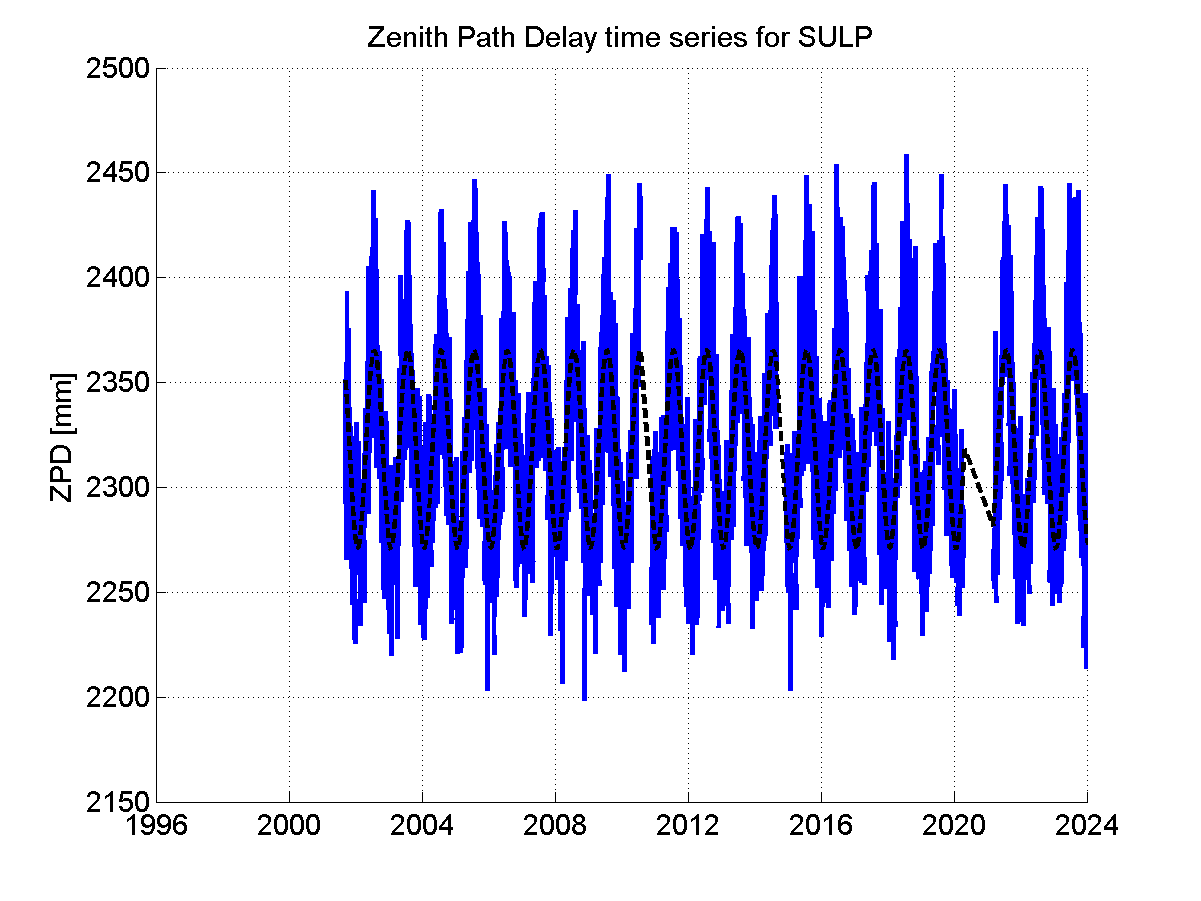

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

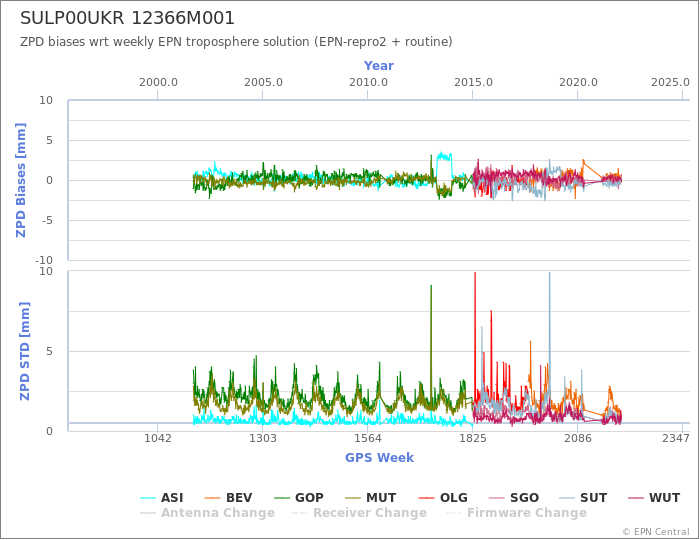

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

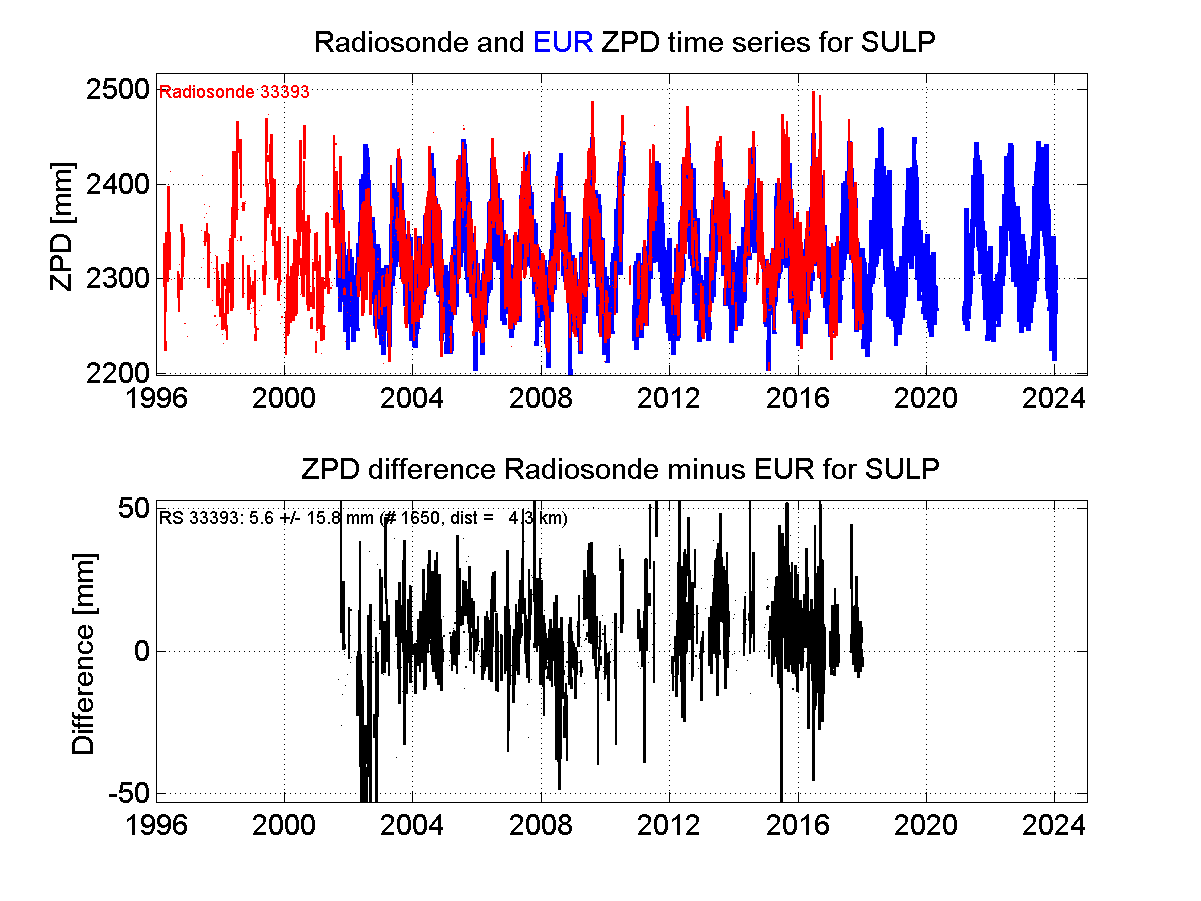

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
