EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ESSP (European Satellite Services Provider S.A.S.)
RESPONSIBLE FOR METADATA	ESSP (European Satellite Services Provider S.A.S.)
CURRENT STATION CONFIGURATION	tor100esp_20230606.log
STATUS IN EPN	included since 15-09-2019
LAST AVAILABLE DATA	17-04-2024
LAST RECEIVER	SEPT ASTERX-M3 (02-06-2023 to now)
SET TO TRACK	GPS+GLO+GAL+SBAS
LAST ANTENNA	NOV702GG/NONE (12-02-2019 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEK, GFZ, IGE
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 19-01-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

TOR100ESP0 :

ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+SBAS (MSM7)
2024/04/18 01:51 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.06665 m)
2024/04/18 01:51 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.8830 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+SBAS (MSM7)
2024/04/17 23:32 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.06665 m)
2024/04/17 23:32 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.8830 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+SBAS (MSM7)
2024/04/18 05:13 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.06665 m)
2024/04/18 05:13 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.8830 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

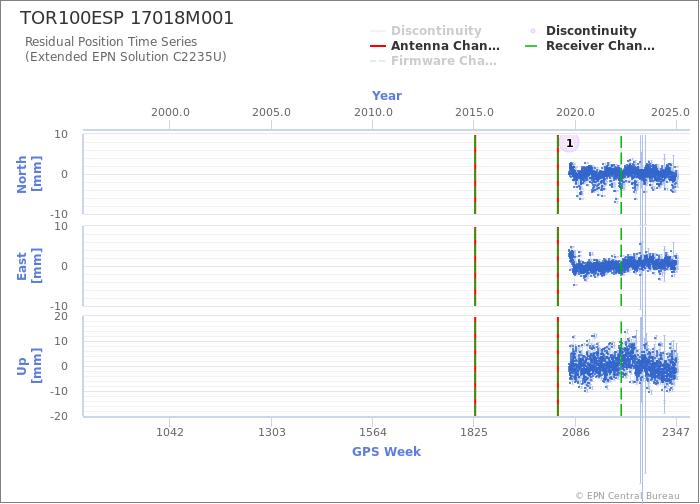

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station TOR100ESP
Last ETRF2000 position valid from 258/2019 to 316/2022 expressed at epoch 001/2010
X = 4850488.420 m	Vx = -0.0001 m/y
Y = -292626.389 m	Vy = -0.0010 m/y
Z = 4118481.765 m	Vz = -0.0006 m/y
