Tõravere, Estonia (TOR200EST)

RESPONSIBLE AGENCY ELB (Estonian Land Board)
RESPONSIBLE FOR METADATA ELB (Estonian Land Board)
CURRENT STATION CONFIGURATION tor200est_20220831.log
STATUS IN EPN former since 04-09-2022
DATA LICENSE CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI) https://doi.org/10.24414/ROB-EUREF-TOR200EST
LAST AVAILABLE DATA 30-08-2022 (decommissioned station)
LAST RECEIVER LEICA GR25 (09-08-2022 to 31-08-2022)
SET TO TRACK GPS+GLO+GAL
LAST ANTENNA LEIAR25.R4/LEIT (29-05-2020 to 31-08-2022)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 14-04-2020.

RINEX V2.11 - GPS+GLO+GAL
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 105/2020
BEV 023/2020
BKGE 105/2020
RINEX V3.05 - GPS+GLO+GAL
Daily
(data calendar)
Data centres Last data
EPNCB (historical)242/2022
BEV242/2022
BKGE242/2022
Hourly

No recent data available

Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station TOR200EST
Last ETRF2000 position valid from 151/2020 to 242/2022
expressed at epoch 001/2010
X = 3010734.103 m Vx = 0.0009 m/y
Y = 1498576.836 m Vy = 0.0004 m/y
Z = 5401387.342 m Vz = 0.0002 m/y

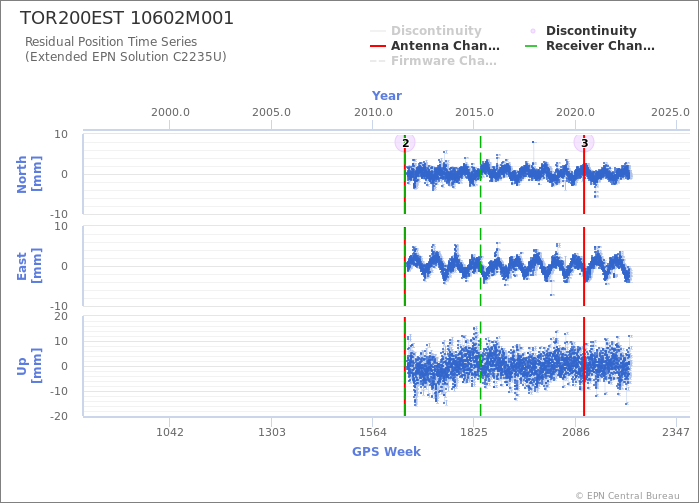

Position time series

Position time series

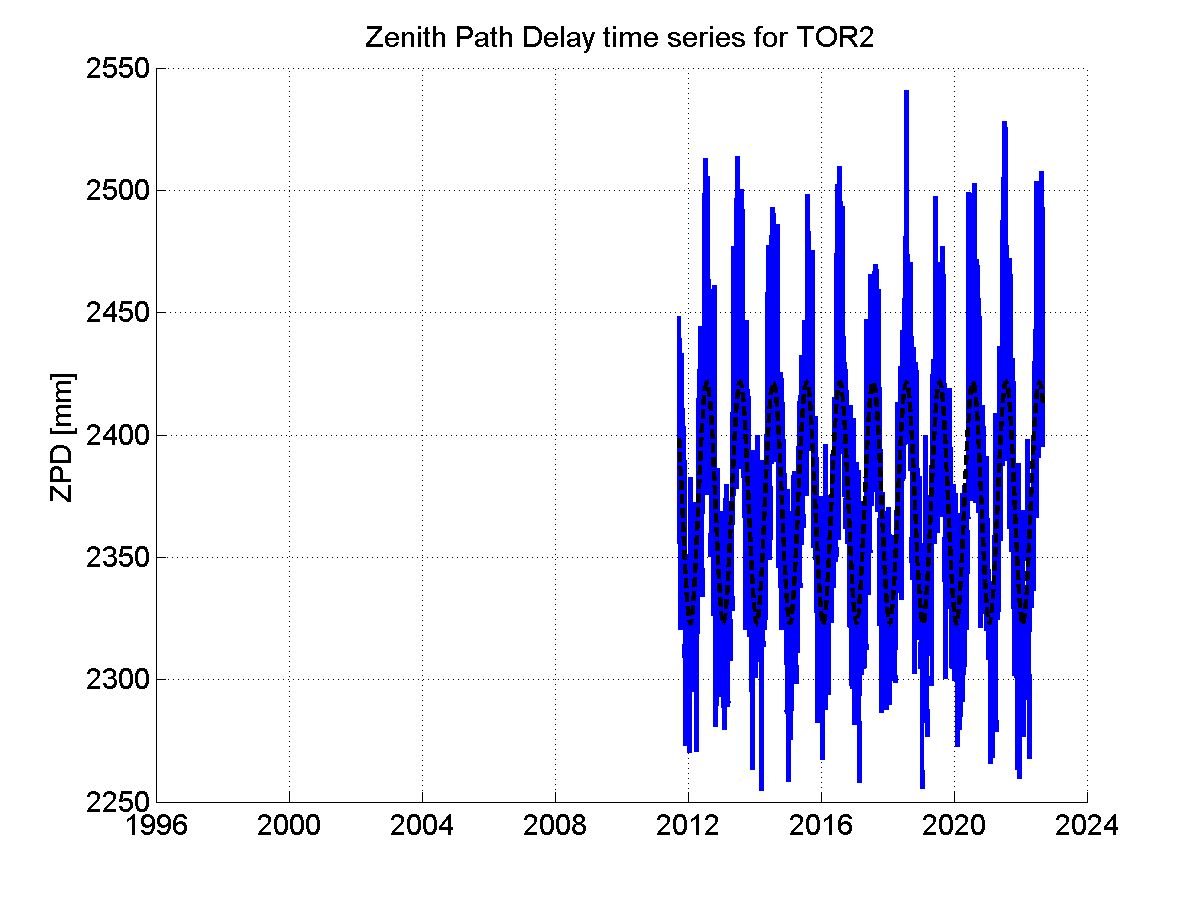

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

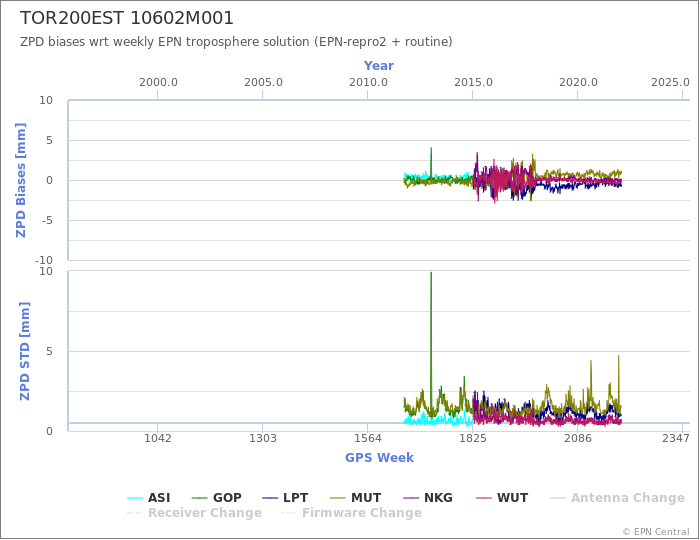

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
