Trabzon, Turkey (TRAB00TUR)

RESPONSIBLE AGENCY BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION trab00tur_20230511.log
STATUS IN EPN former since 02-12-2007
LAST AVAILABLE DATA 27-11-2007 (decommissioned station)
LAST RECEIVER ASHTECH Z-XII3 (08-12-1999 to 27-11-2007)
SET TO TRACK GPS
LAST ANTENNA ASH700936D_M/SNOW (08-12-1999 to 27-11-2007)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 330/2007
BKGI 331/2007
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station TRAB00TUR
Last ETRF2000 position valid from 346/1999 to 331/2007
expressed at epoch 001/2010
X = 3705250.771 m Vx = -0.0015 m/y
Y = 3084421.487 m Vy = -0.0018 m/y
Z = 4162044.597 m Vz = 0.0008 m/y

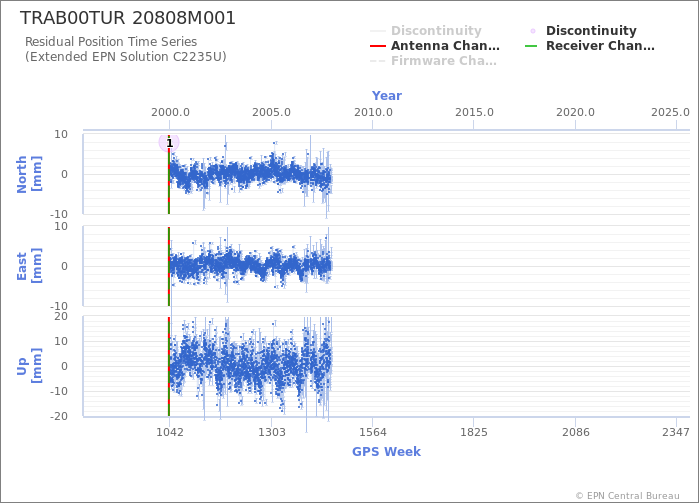

Position time series

Position time series

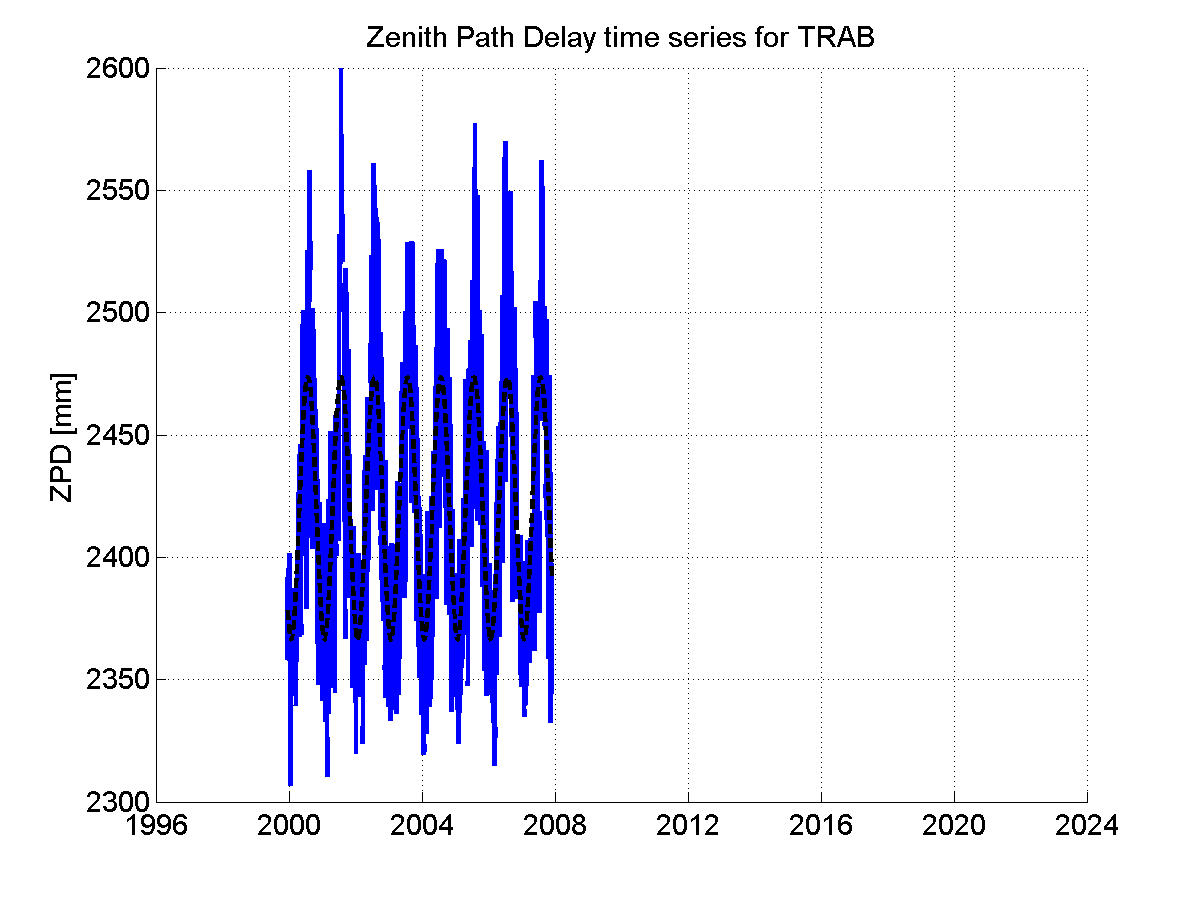

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

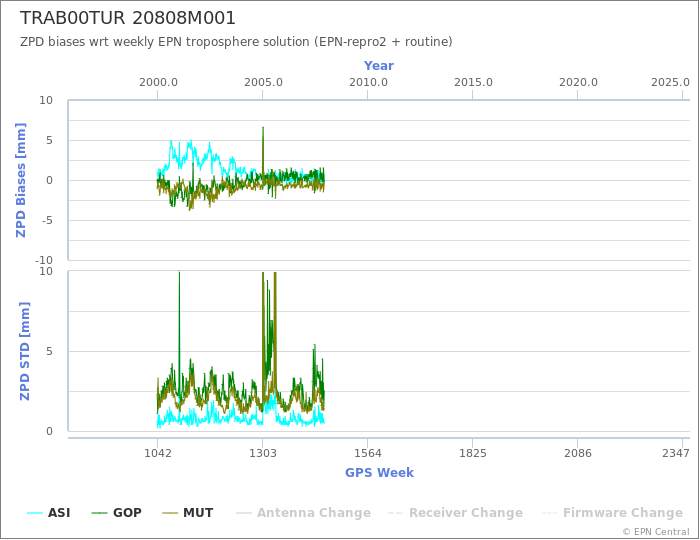

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
