Pernitz, Austria (TRF200AUT)

RESPONSIBLE AGENCY BEV (Federal Office of Metrology and Surveying Austria)
RESPONSIBLE FOR METADATA BEV (Federal Office of Metrology and Surveying Austria)
CURRENT STATION CONFIGURATION trf200aut_20231212.log
STATUS IN EPN included since 05-10-2008
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER LEICA GR30 (12-12-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR25.R3/BEVA (05-10-2011 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R3/BEVA (SN: 09470003) from 2011-10-05 to now :
  • LEIAT504/OLGA (SN: 00814) from 2008-06-10 to 2008-11-10, from 2010-05-26 to 2011-10-05 :
  • TPSCR3_GGD/OLGA (SN: 2170752) from 2008-01-30 to 2008-06-10 :
DATA ROUTINELY ANALYSED BY BEK, BEV, BKG, LPT, UPA
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 31-12-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 346/2020 N/A
BEV 316/2020 N/A
BKGE 346/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 325/2024 96.43%
BKGE 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 100%
BKGE 326/2024 (H) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

TRF200AUT0 :

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station TRF200AUT
Last ETRF2000 position valid from 150/2010 to 316/2022
expressed at epoch 001/2010
X = 4119400.419 m Vx = -0.0006 m/y
Y = 1170248.491 m Vy = -0.0001 m/y
Z = 4712323.809 m Vz = -0.0007 m/y
Position time series

Position time series

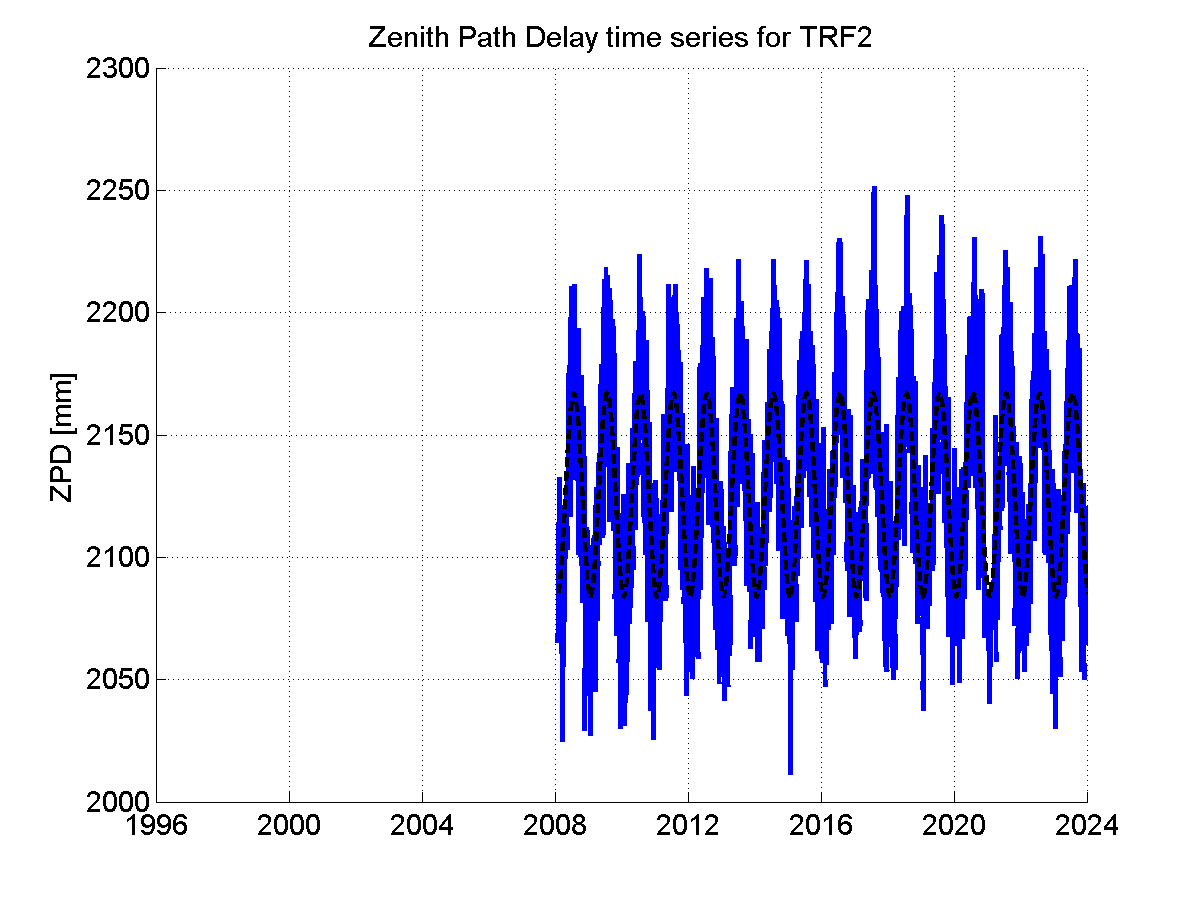

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

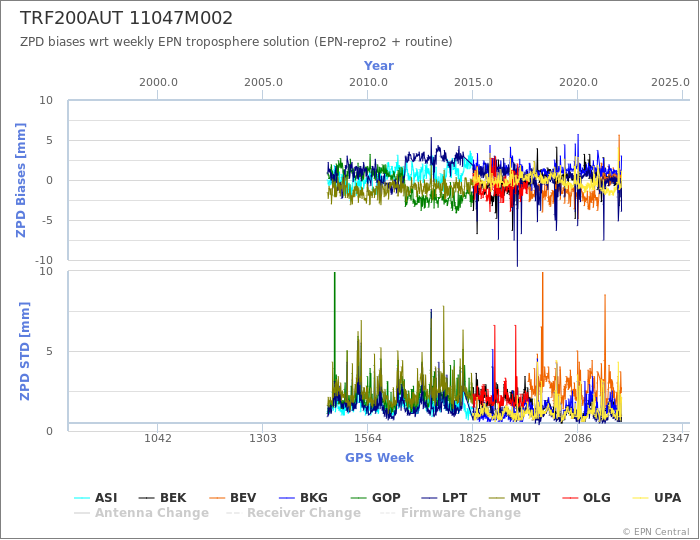

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

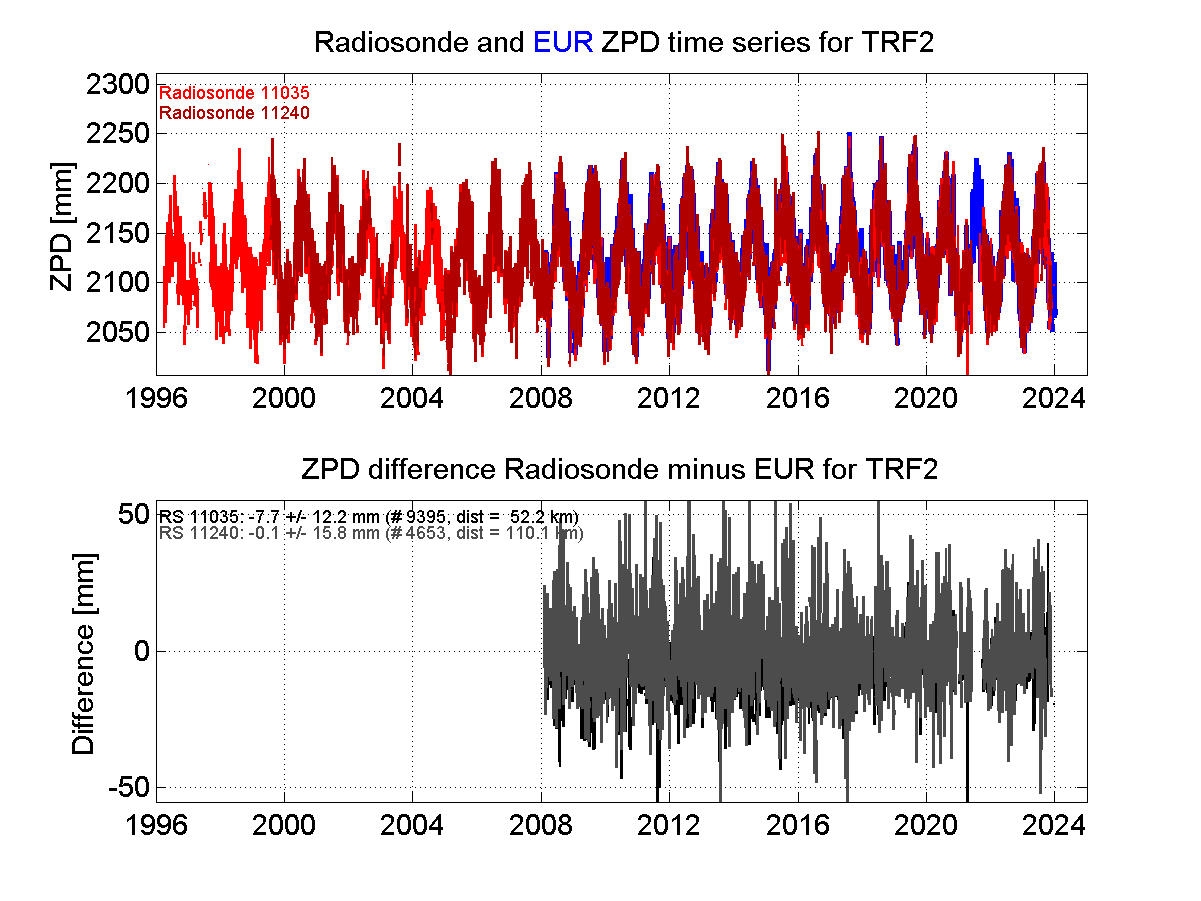

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
