EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	FGI (National Land Survey of Finland)
RESPONSIBLE FOR METADATA	FGI (National Land Survey of Finland)
CURRENT STATION CONFIGURATION	vaa200fin_20240418.log
STATUS IN EPN	included since 02-04-2017
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	JAVAD TRE_3 DELTA (18-04-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	JAVRINGANT_DM/SCIS (22-11-2012 to now)
INDIVIDUAL CALIBRATION(S)	JAVRINGANT_DM/SCIS (SN: 00747) from 2012-11-22 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2012-09-03)
DATA ROUTINELY ANALYSED BY	GFZ, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 19-08-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

VAA200FIN0 :

ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/11/20 19:10 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS)
2024/11/20 19:10 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SPDRKG2PJXO30T4F2MW) wrt site log (02862)
2024/11/20 19:10 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.2301 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/11/20 16:20 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SPDRKG2PJXO30T4F2MW) wrt site log (02862)
2024/11/20 16:20 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.2301 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/11/20 17:50 RTCM 3.3/1033: Incorrect Receiver SN in stream (0SPDRKG2PJXO30T4F2MW) wrt site log (02862)
2024/11/20 17:50 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.2301 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

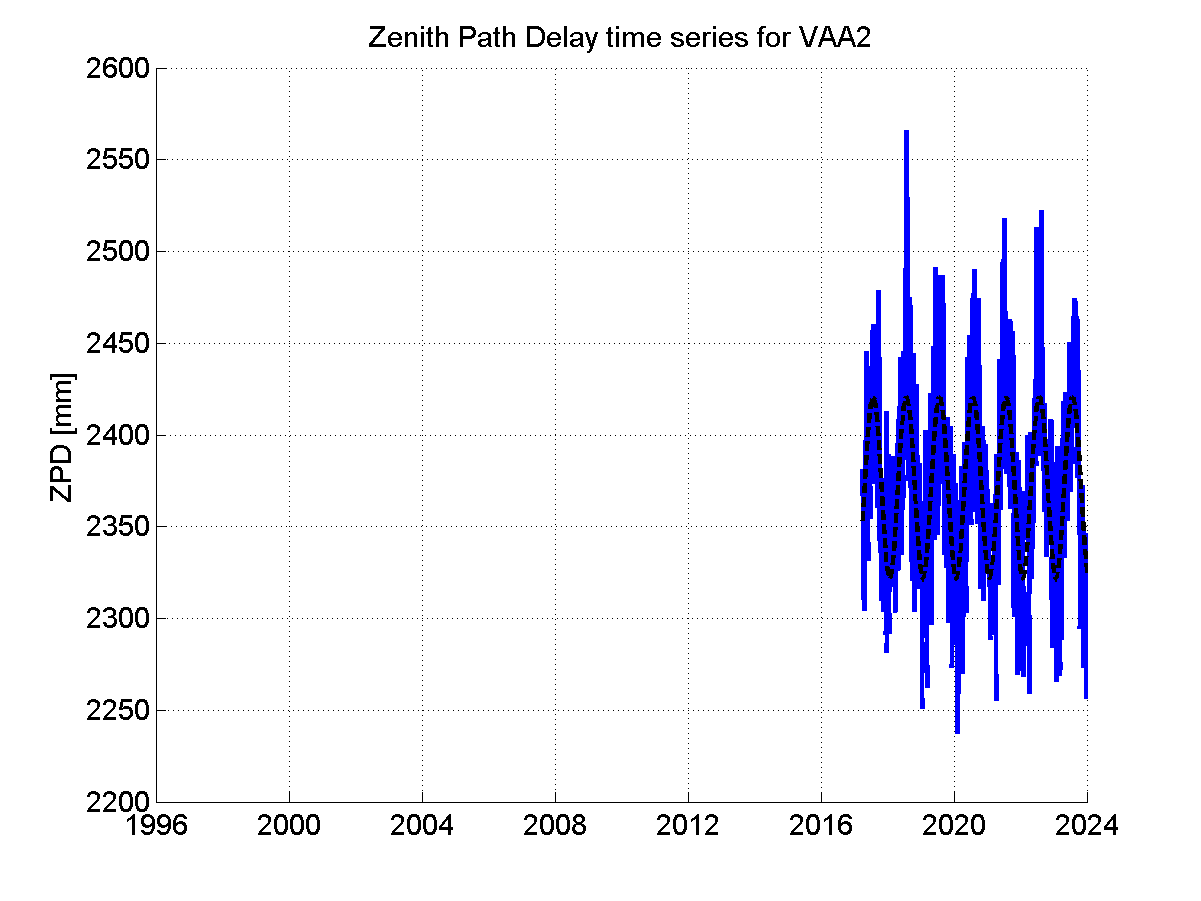

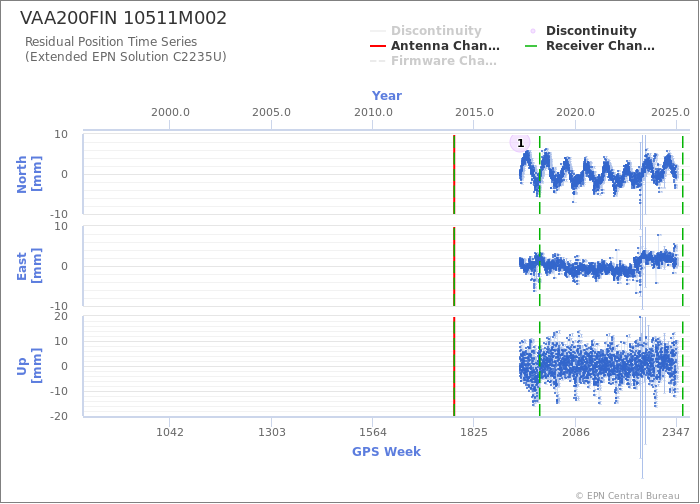

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station VAA200FIN
Last ETRF2000 position valid from 092/2017 to 316/2022 expressed at epoch 001/2010
X = 2699868.339 m	Vx = 0.0036 m/y
Y = 1078261.339 m	Vy = 0.0016 m/y
Z = 5658063.720 m	Vz = 0.0065 m/y
