Vardoe, Norway (VARS00NOR)

RESPONSIBLE AGENCY NMA (Norwegian Mapping Authority)
RESPONSIBLE FOR METADATA NMA (Norwegian Mapping Authority)
CURRENT STATION CONFIGURATION vars00nor_20211127.log
STATUS IN EPN included since 10-12-2000
LAST AVAILABLE DATA 18-04-2024
LAST RECEIVER TRIMBLE NETR9 (25-11-2021 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA TRM59800.00/SCIS (28-06-2010 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEV, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 17-03-2022.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 076/2022 N/A
BEV 074/2022 N/A
BKGE 074/2022 N/A
RINEX V3.05 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 103/2024 78.57%
BEV 109/2024 100%
BKGE 109/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 110/2024 (K) 58.33% 56.55%
BKGE 110/2024 (K) 58.33% 58.33%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

VARS00NOR0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/04/19 02:42 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (Nav 5.52 / Boot 5.52) wrt site log (5.52)

    2024/04/19 02:42 RTCM 3.2/1033: Incorrect Receiver SN in stream () wrt site log (5548R50552)

    2024/04/19 02:42 RTCM 3.2/1005: Incorrect Antenna Height in stream ( m) wrt site log (5.59863 m)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/04/19 01:03 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (Nav 5.52 / Boot 5.52) wrt site log (5.52)

    2024/04/19 01:03 RTCM 3.2/1033: Incorrect Receiver SN in stream () wrt site log (5548R50552)

    2024/04/19 01:03 RTCM 3.2/1005: Incorrect Antenna Height in stream ( m) wrt site log (5.59863 m)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/04/19 06:04 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (Nav 5.52 / Boot 5.52) wrt site log (5.52)

    2024/04/19 06:04 RTCM 3.2/1033: Incorrect Receiver SN in stream () wrt site log (5548R50552)

    2024/04/19 06:04 RTCM 3.2/1005: Incorrect Antenna Height in stream ( m) wrt site log (5.59863 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station VARS00NOR
Last ETRF2000 position valid from 185/2010 to 316/2022
expressed at epoch 001/2010
X = 1844607.645 m Vx = 0.0007 m/y
Y = 1109719.116 m Vy = 0.0002 m/y
Z = 5983936.041 m Vz = 0.0019 m/y

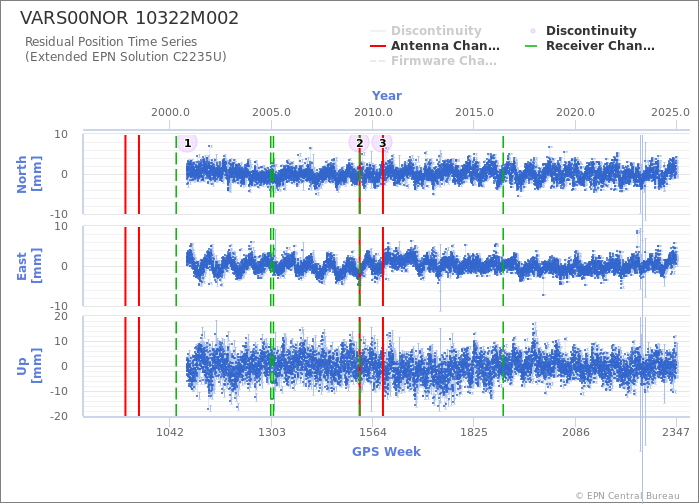

Position time series

Position time series
Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

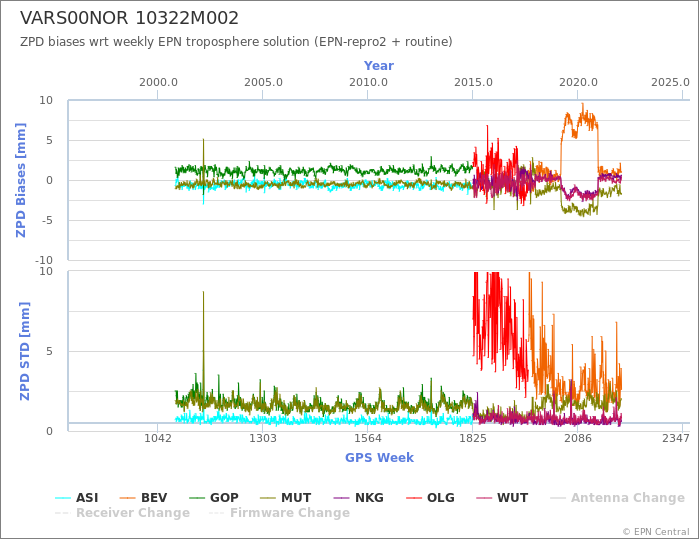

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
