EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ESOC (European Space Agency)
RESPONSIBLE FOR METADATA	ESOC (European Space Agency)
CURRENT STATION CONFIGURATION	vill00esp_20220428.log
STATUS IN EPN	included since 31-12-1995
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	SEPT POLARX5 (19-01-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	SEPCHOKE_B3E6/NONE (07-01-2020 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEK, COD, GFZ, IGE
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 06-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

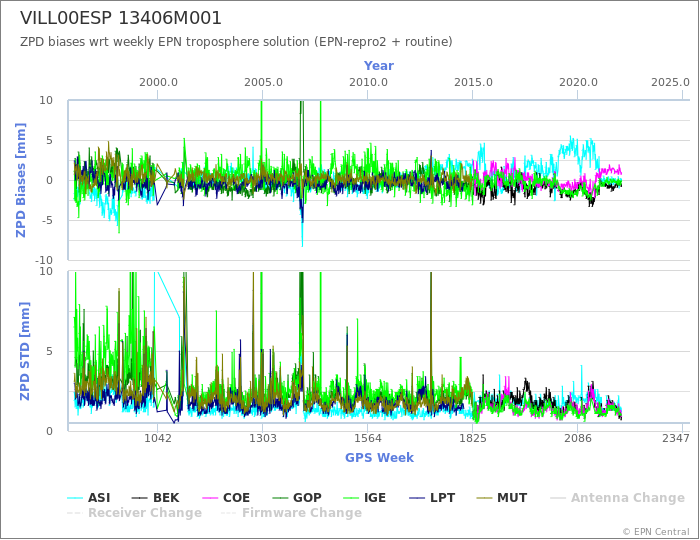

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

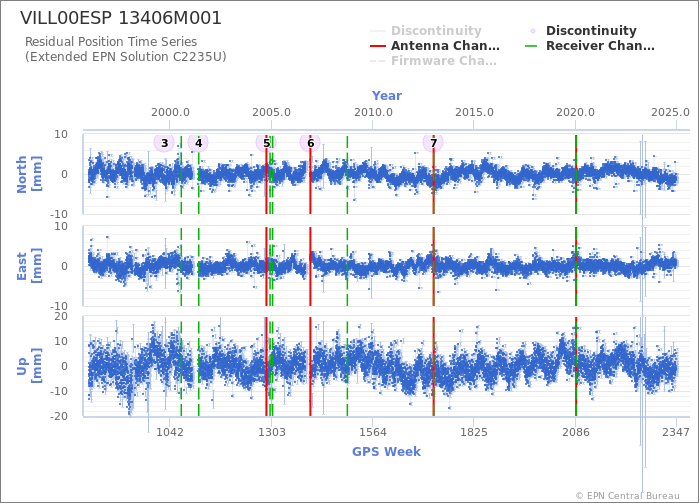

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station VILL00ESP
Last ETRF2000 position valid from 365/2012 to 316/2022 expressed at epoch 001/2010
X = 4849833.886 m	Vx = 0.0000 m/y
Y = -335049.301 m	Vy = -0.0011 m/y
Z = 4116014.684 m	Vz = -0.0002 m/y
