Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	wett00deu_20230511.log
STATUS IN EPN	former since 01-09-1996
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	31-08-1996 (decommissioned station)
LAST RECEIVER	ROGUE SNR-800 (07-06-1994 to 31-08-1996)
SET TO TRACK	GPS
LAST ANTENNA	AOAD/M_B/NONE (22-07-1991 to 31-08-1996)
INDIVIDUAL CALIBRATION(S)	none
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

RINEX V2.11

Daily

(data calendar)

Data centres	Last data
EPNCB (historical)	243/1996
BKGI	244/1996

Hourly

No recent data available

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing only positions for the station WETT00DEU
Last ETRF2000 position valid from 001/1996 to 244/1996 expressed at epoch 143/1996
X = 4075578.746 m
Y = 931852.592 m
Z = 4801569.930 m

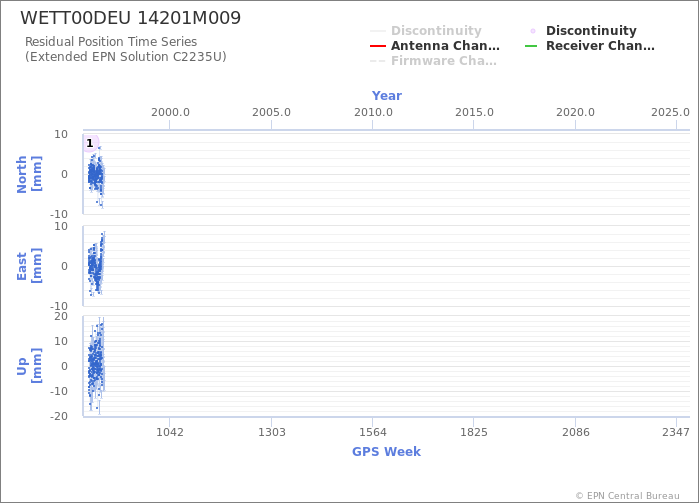

Position time series

Tropospheric Delays

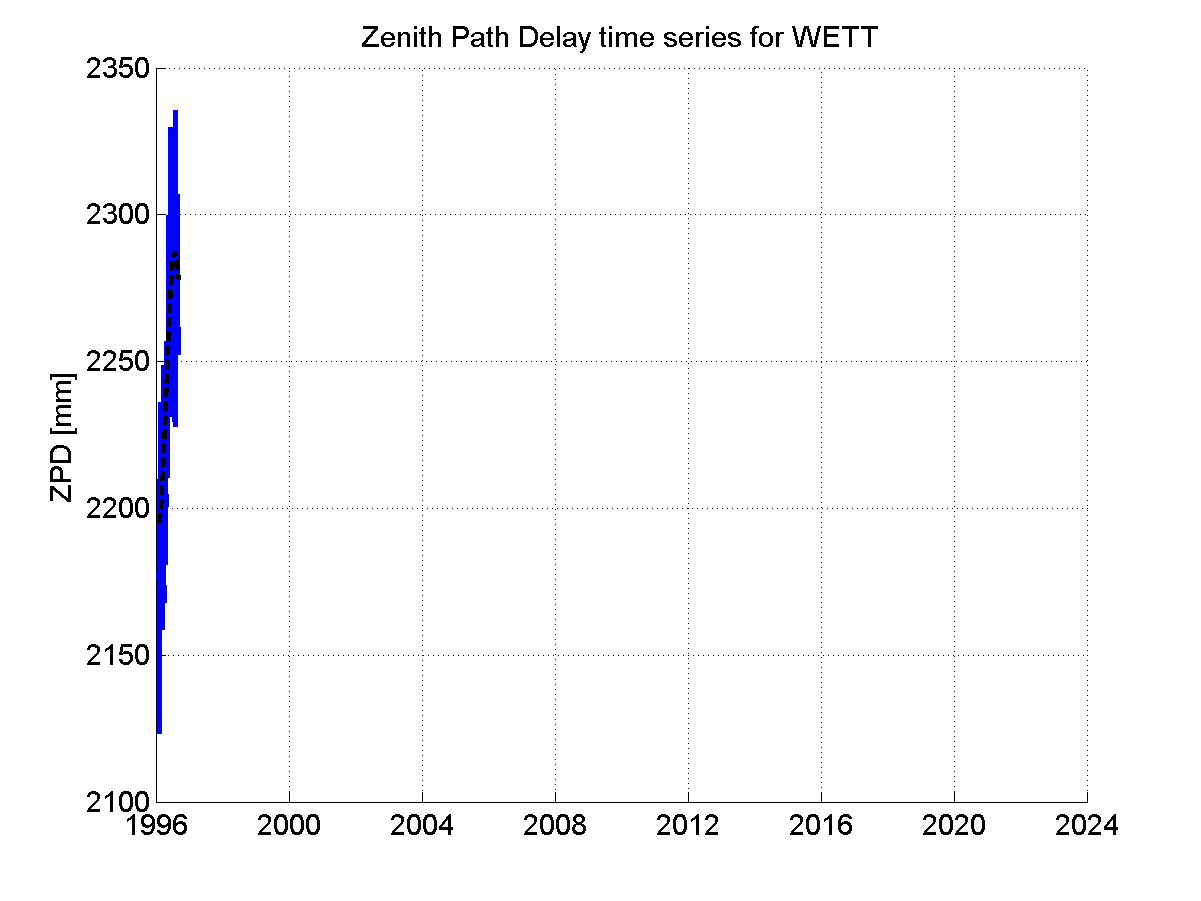

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
