EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	wtzs00deu_20230509.log
STATUS IN EPN	included since 29-09-2019
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	SEPT POLARX5TR (21-09-2021 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+IRNSS+SBAS
LAST ANTENNA	LEIAR25.R3/LEIT (21-09-2021 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R3/LEIT (SN: 10020020) from 2010-06-30 to 2021-09-21, from 2021-09-21 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2010-04-28) - careful: not used within EPN analysis BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E08, E07, E06, date: 2010-05-25)
DATA ROUTINELY ANALYSED BY	BEK, BKG, GFZ, ROB
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 11-11-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

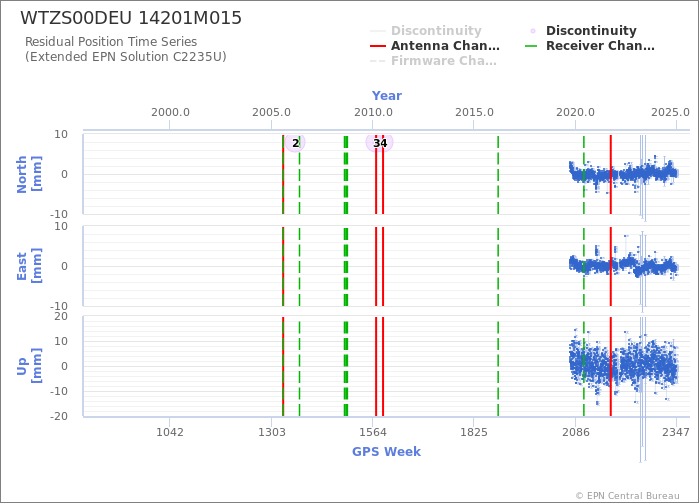

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station WTZS00DEU
Last ETRF2000 position valid from 272/2019 to 316/2022 expressed at epoch 001/2010
X = 4075535.483 m	Vx = -0.0006 m/y
Y = 931822.100 m	Vy = -0.0002 m/y
Z = 4801608.799 m	Vz = -0.0006 m/y
