EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	WUT (Warsaw University of Technology)
RESPONSIBLE FOR METADATA	WUT (Warsaw University of Technology)
CURRENT STATION CONFIGURATION	wuth00nor_20230830.log
STATUS IN EPN	included since 27-02-2022
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-WUTH00NOR
LAST AVAILABLE DATA	24-07-2024
LAST RECEIVER	SEPT POLARX5S (27-08-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
LAST ANTENNA	SEPCHOKE_B3E6/SPKE (04-09-2020 to now)
INDIVIDUAL CALIBRATION(S)	SEPCHOKE_B3E6/SPKE (SN: 5195) from 2020-09-04 to now : GEO - ROBOT (freq: G01, G02, G05, R01, R02, E06, E07, E08, C02, C06 , date: 2020-06-20)
DATA ROUTINELY ANALYSED BY	BEV, BKG, MUT, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 29-06-2021.

No recent data available

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

WUTH00NOR0 :

BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7) : stream temporarily unavailable
2024/07/22 00:39 RTCM 3.3/1006: Incorrect Antenna Height in stream (0.0910 m) wrt site log (0.21835 m)
2024/07/22 00:39 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.0785 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

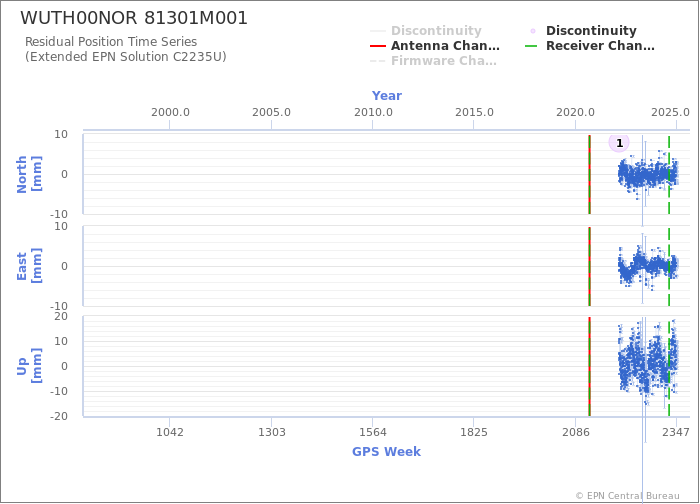

Position, Velocity & Time Series

EUREF is providing only positions for the station WUTH00NOR
Last ETRF2000 position valid from 058/2022 to 316/2022 expressed at epoch 175/2022
X = 1386490.759 m
Y = 385513.806 m
Z = 6192887.036 m
