Cercivento, Italy (ZOUF00ITA)

RESPONSIBLE AGENCY CRS (Istituto Nazionale di Oceanografia e di Geofisica Sperimentale - OGS)
RESPONSIBLE FOR METADATA CRS (Istituto Nazionale di Oceanografia e di Geofisica Sperimentale - OGS)
CURRENT STATION CONFIGURATION zouf00ita_20240730.log
STATUS IN EPN included since 11-01-2004
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 19-11-2024
LAST RECEIVER TPS NET-G5 (30-07-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
LAST ANTENNA ASH701945C_M/SCIT (28-01-2003 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEK, BEV, IGE, SGO
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 09-03-2024.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 068/2024 N/A
BEV 068/2024 N/A
BKGE 059/2024 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 324/2024 60.71%
BKGE 324/2024 96.43%
Hourly
Data centres Online Last data Availability Latency
BEV 068/2024 (J) N/A 0%
BKGE 012/2024 (K) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 99.4% 98.81%
BKGE 323/2024 (X) 42.86% 0%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

ZOUF00ITA0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/20 20:28 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/11/20 20:28 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2024/11/20 20:28 RTCM 3.2/1033: Incorrect Receiver type in stream (TPS GB-1000) wrt site log (TPS NET-G5)

    2024/11/20 20:28 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (3.5) wrt site log (5.5+2207150000)

    2024/11/20 20:28 RTCM 3.2/1033: Incorrect Receiver SN in stream (12345) wrt site log (1294-13748)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/20 17:40 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/11/20 17:40 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2024/11/20 17:40 RTCM 3.2/1033: Incorrect Receiver type in stream (TPS GB-1000) wrt site log (TPS NET-G5)

    2024/11/20 17:40 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (3.5) wrt site log (5.5+2207150000)

    2024/11/20 17:40 RTCM 3.2/1033: Incorrect Receiver SN in stream (12345) wrt site log (1294-13748)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/20 19:07 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/11/20 19:07 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2024/11/20 19:07 RTCM 3.2/1033: Incorrect Receiver type in stream (TPS GB-1000) wrt site log (TPS NET-G5)

    2024/11/20 19:07 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (3.5) wrt site log (5.5+2207150000)

    2024/11/20 19:07 RTCM 3.2/1033: Incorrect Receiver SN in stream (12345) wrt site log (1294-13748)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station ZOUF00ITA
Last ETRF2000 position valid from 065/2003 to 316/2022
expressed at epoch 001/2010
X = 4282710.331 m Vx = -0.0003 m/y
Y = 986659.202 m Vy = -0.0001 m/y
Z = 4609469.581 m Vz = 0.0008 m/y

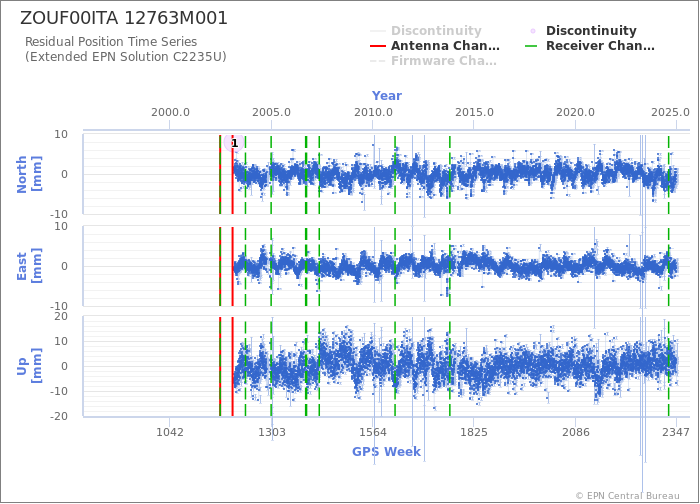

Position time series

Position time series

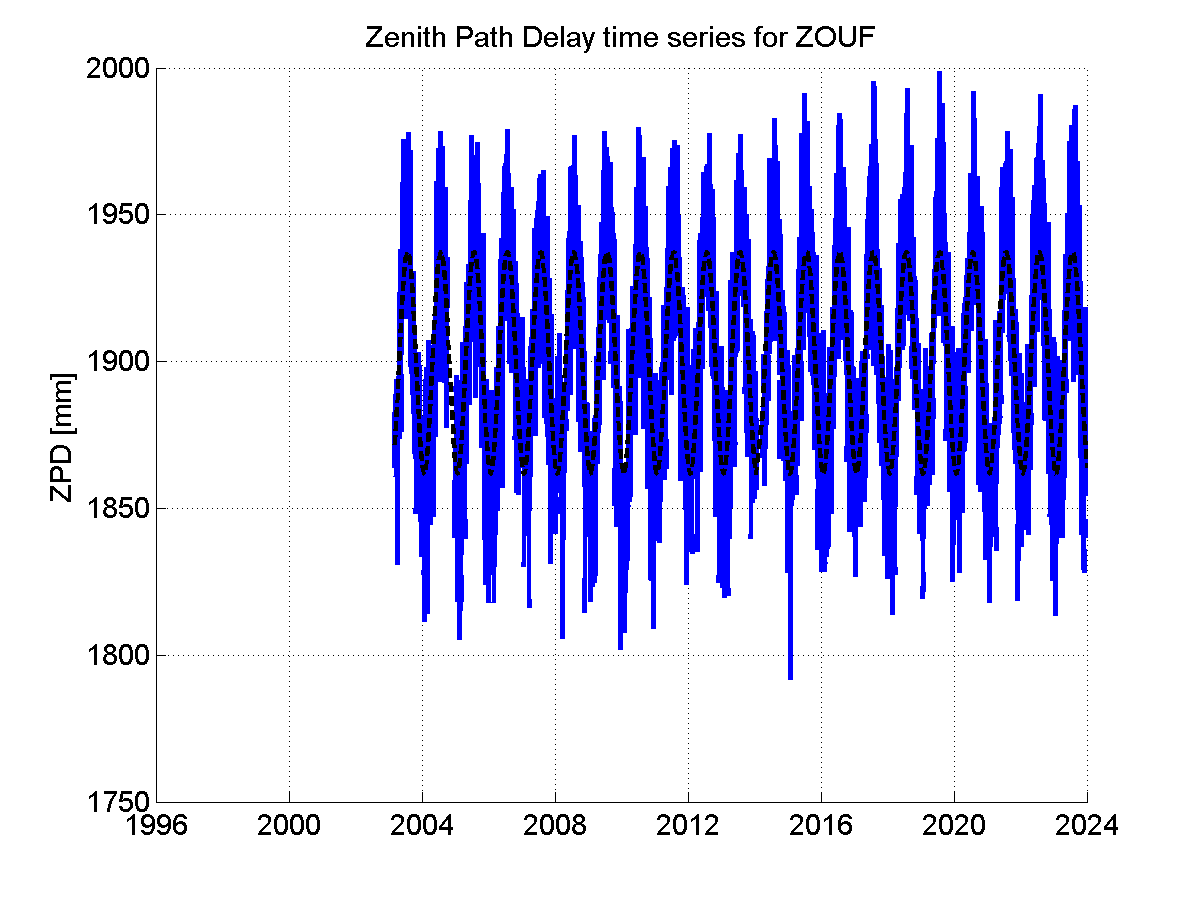

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

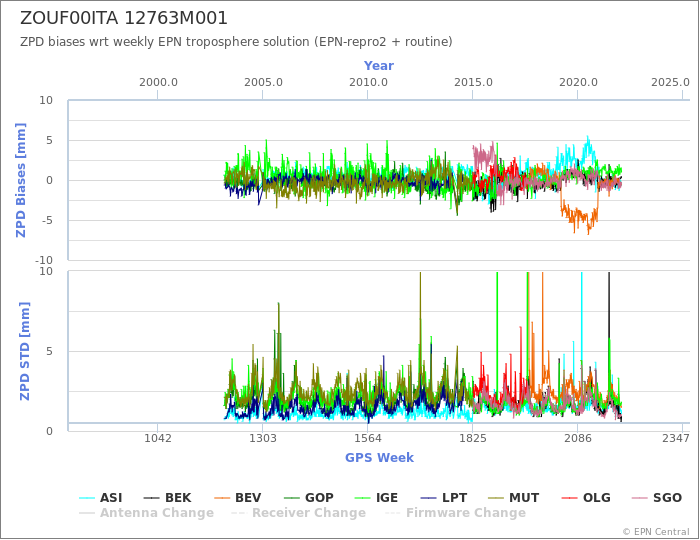

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

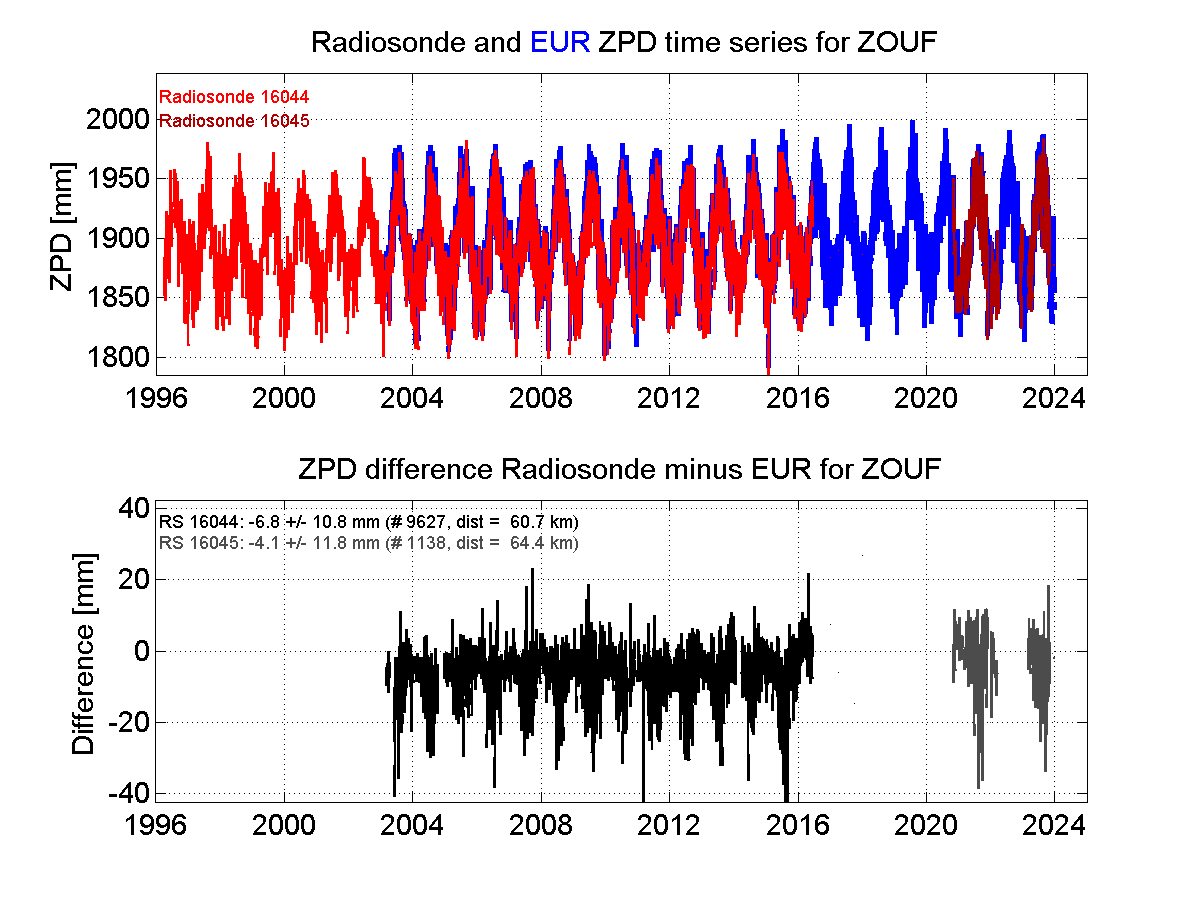

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
